Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .

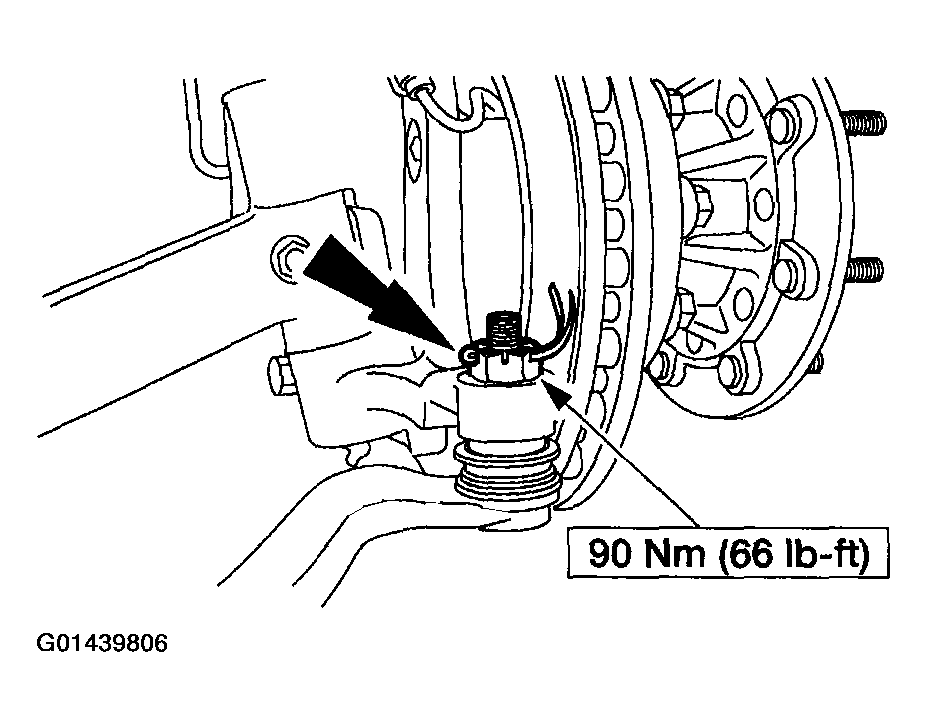

Loosen the nut.

Fig 1: Loosening Nut
Courtesy of FORD MOTOR CO.
Remove and discard the cotter pin and nut.

Fig 2: Removing Cotter Pin And Nut
Courtesy of FORD MOTOR CO.
Using a suitable separating tool, detach the tie rod end from the wheel knuckle.

Fig 3: Detaching Tie Rod End From Wheel Knuckle
Courtesy of FORD MOTOR CO.

NOTE: Count the number of turns that are necessary to remove the tie-rod for reference during installation.

Fig 4: Removing Tie Rod End

Courtesy of FORD MOTOR CO.

Remove the tie rod end.
To install, reverse the removal procedure.
Check and, and if necessary, adjust the front toe. For additional information, refer to Refer to SUSPENSION SYSTEM - GENERAL INFORMATION article. Ensure steering wheel is centered.
