PINPOINT TEST L: DTCs: C1095, C1096-PUMP MOTOR FAILURE
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

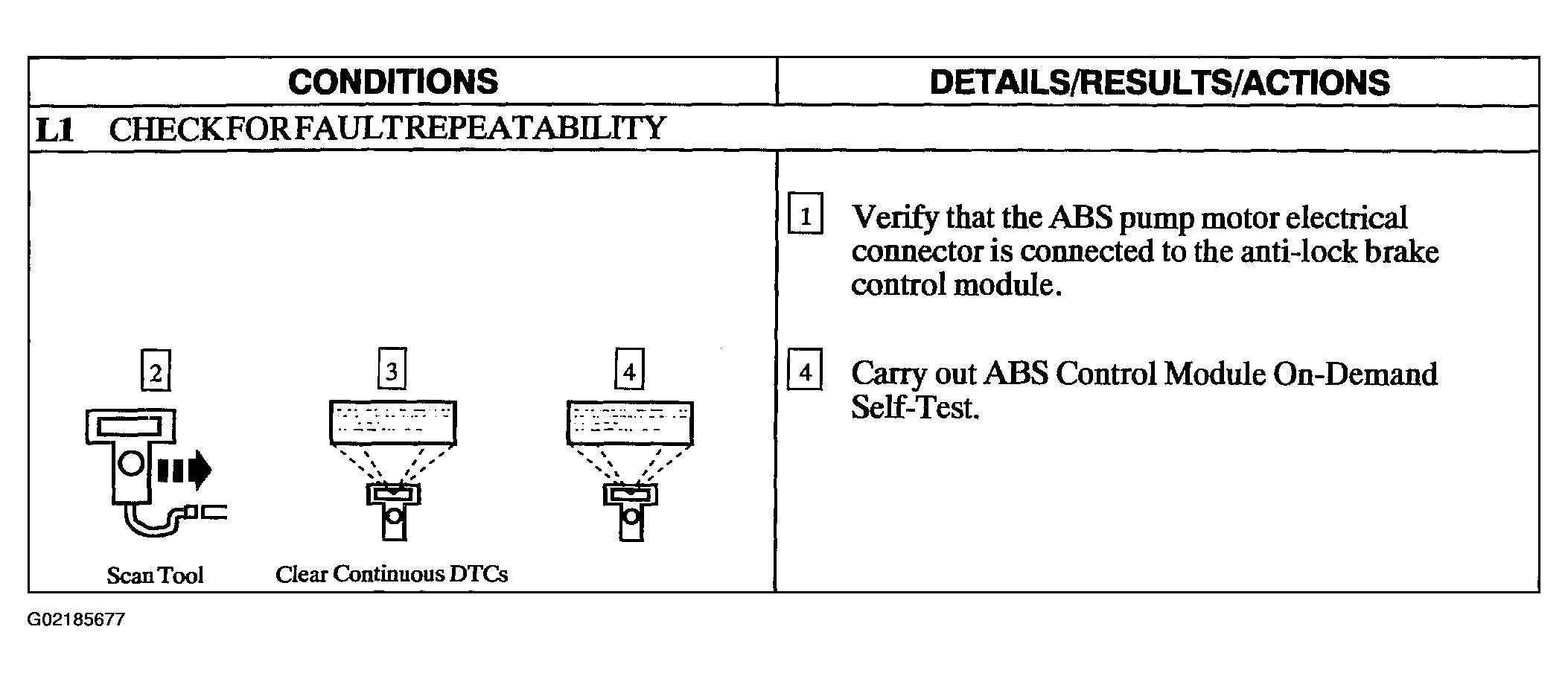

Fig 1: Pinpoint Test L: DTCs: C1095, C1096 - Pump Motor Failure Chart (L1)
Courtesy of FORD MOTOR CO.

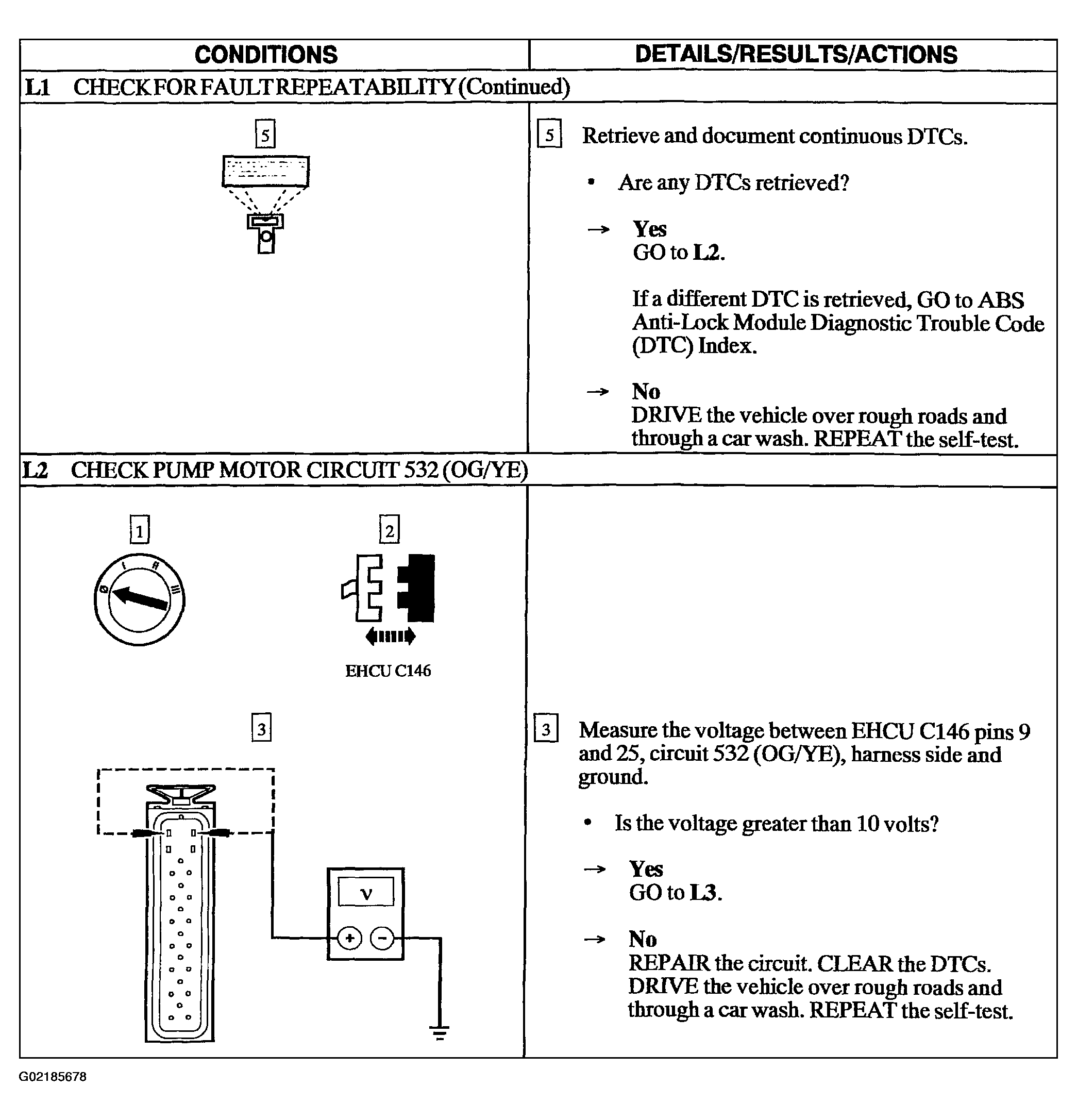

Fig 2: Pinpoint Test L: DTCs: C1095, C1096 - Pump Motor Failure Chart (L1 Cont. & L2)
Courtesy of FORD MOTOR CO.

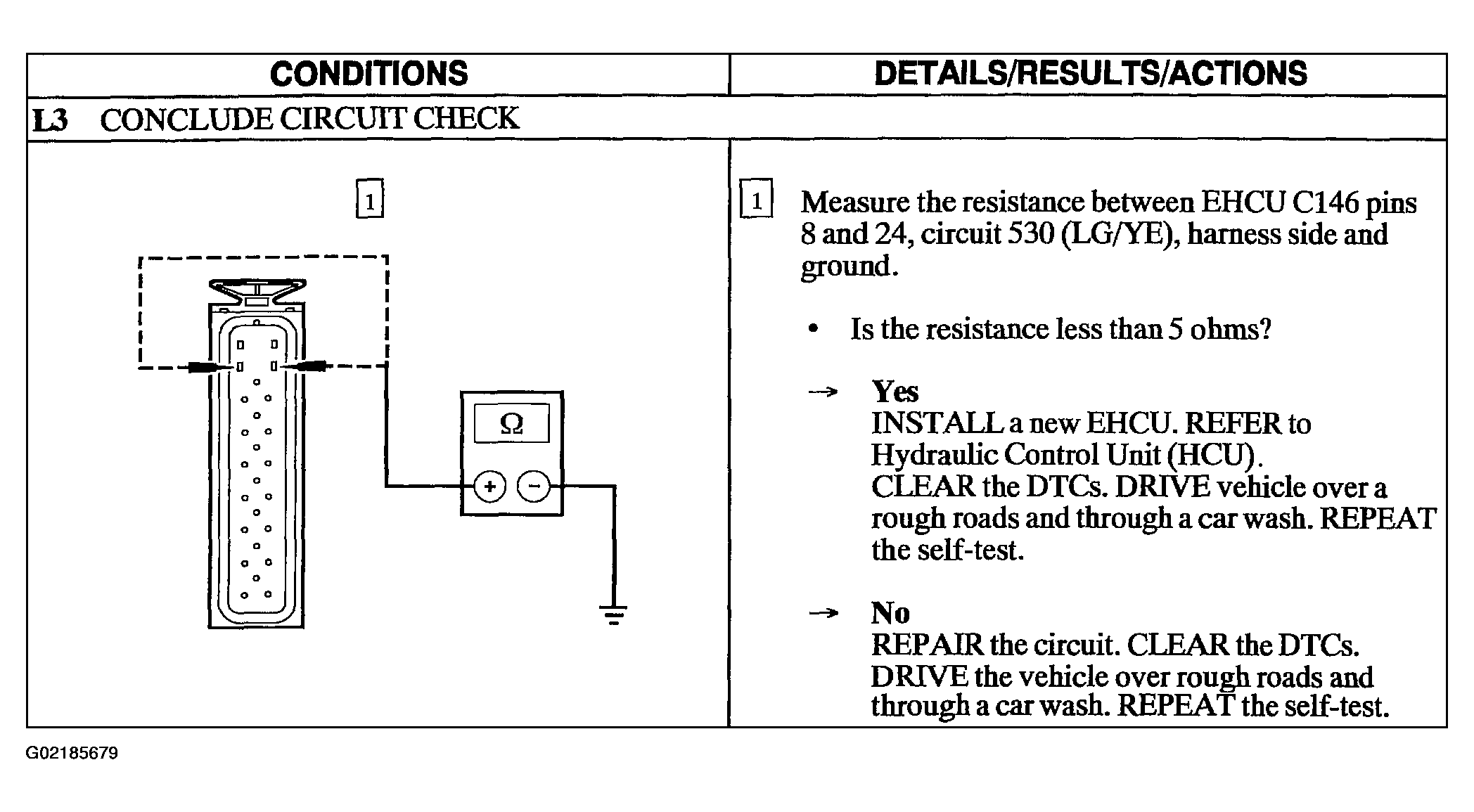

Fig 3: Pinpoint Test L: DTCs: C1095, C1096 - Pump Motor Failure Chart (L3)
