PINPOINT TEST J: DTCs: C1229, C1237-REAR ANTI-LOCK BRAKE SENSOR DIAGNOSIS (DYNAMIC)

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

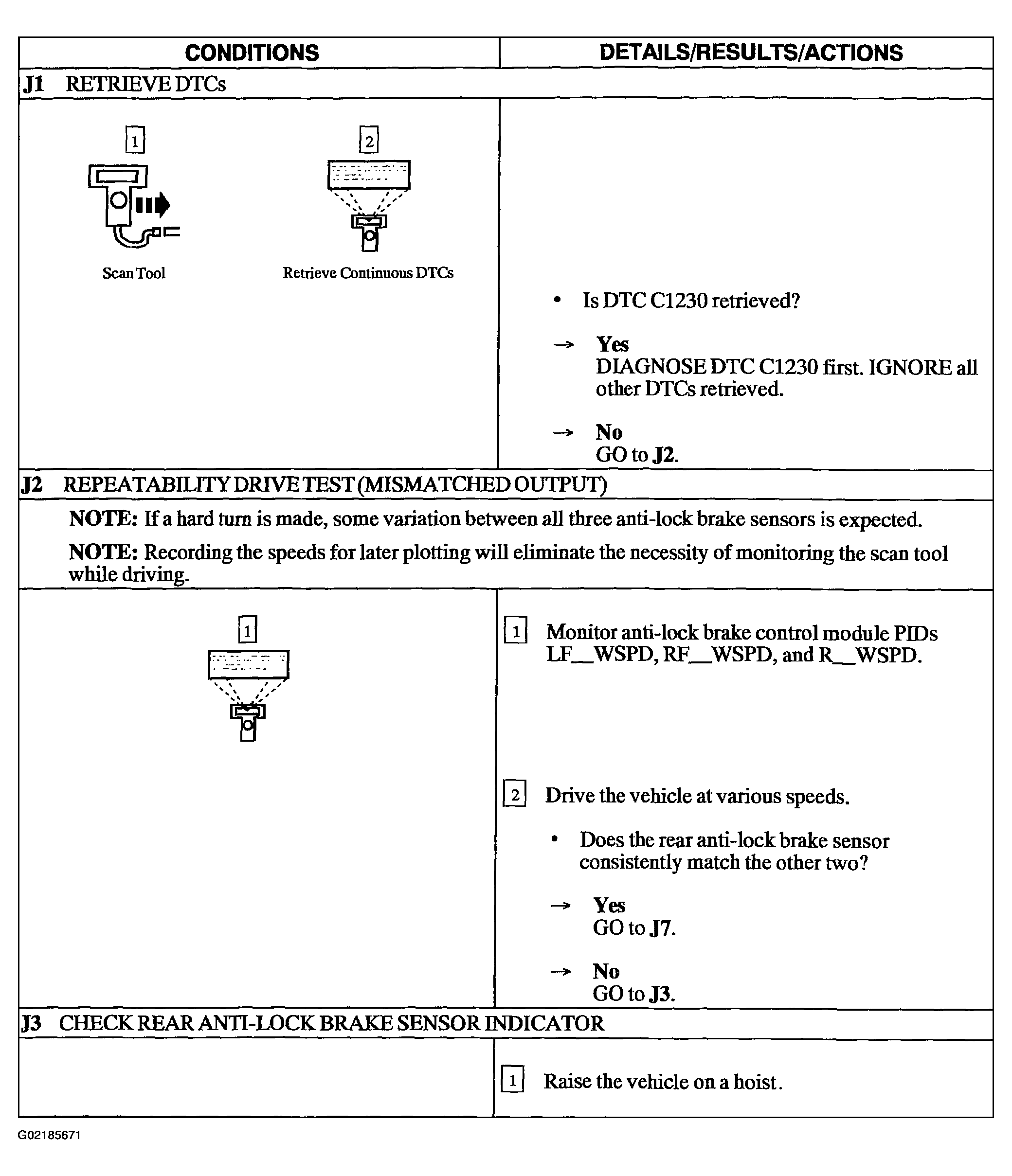

Fig 1: Pinpoint Test J: DTCs: C1229, C1237 - Rear Anti-Lock Brake Sensor Diagnosis (Dynamic) Chart (J1-J3)

Courtesy of FORD MOTOR CO.

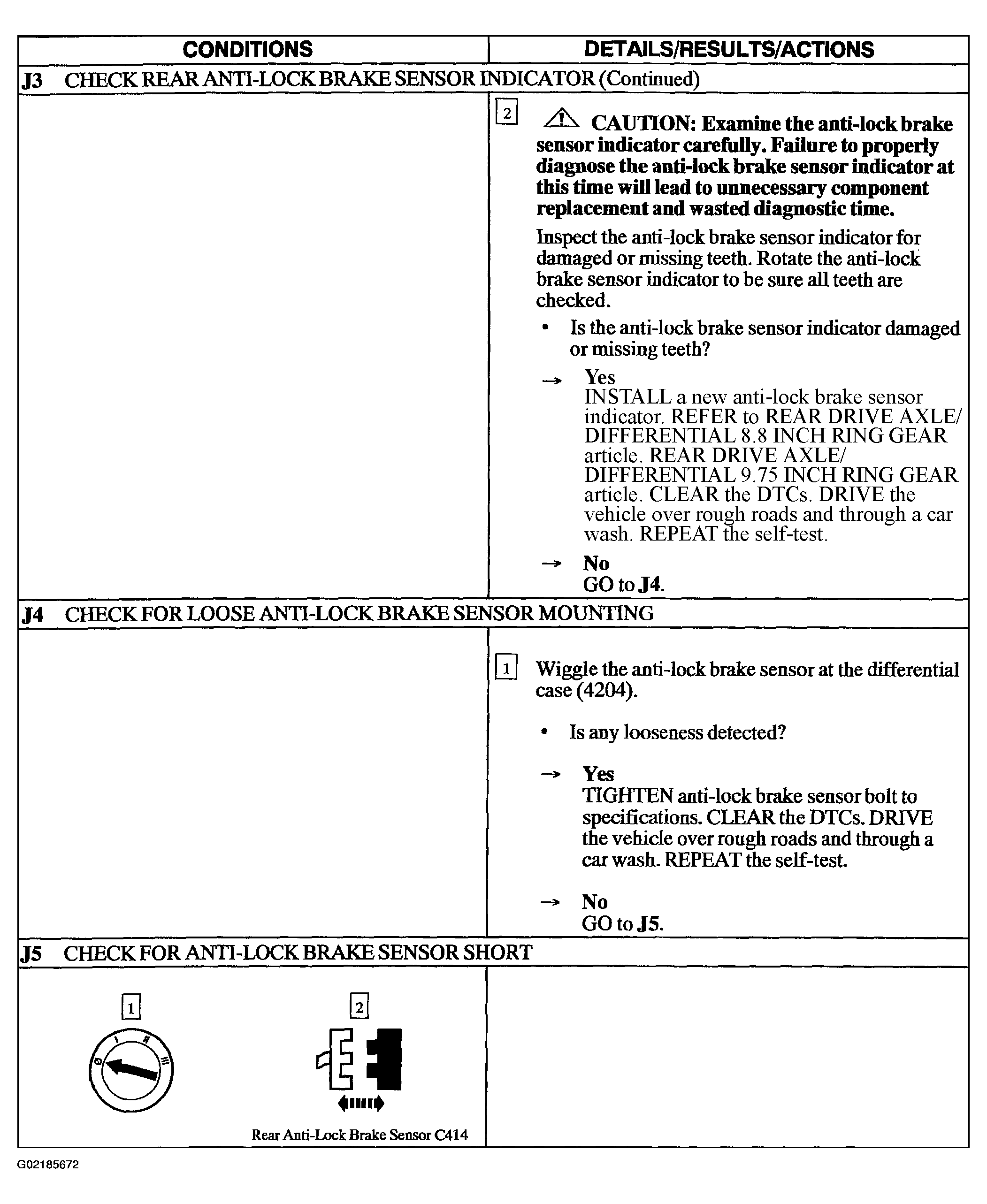

Fig 2: Pinpoint Test J: DTCs: C1229, C1237 - Rear Anti-Lock Brake Sensor Diagnosis (Dynamic) Chart (J3 Cont.-J5)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test J: DTCs: C1229, C1237 - Rear Anti-Lock Brake Sensor Diagnosis (Dynamic) Chart (J5 Cont & J6)

Courtesy of FORD MOTOR CO.

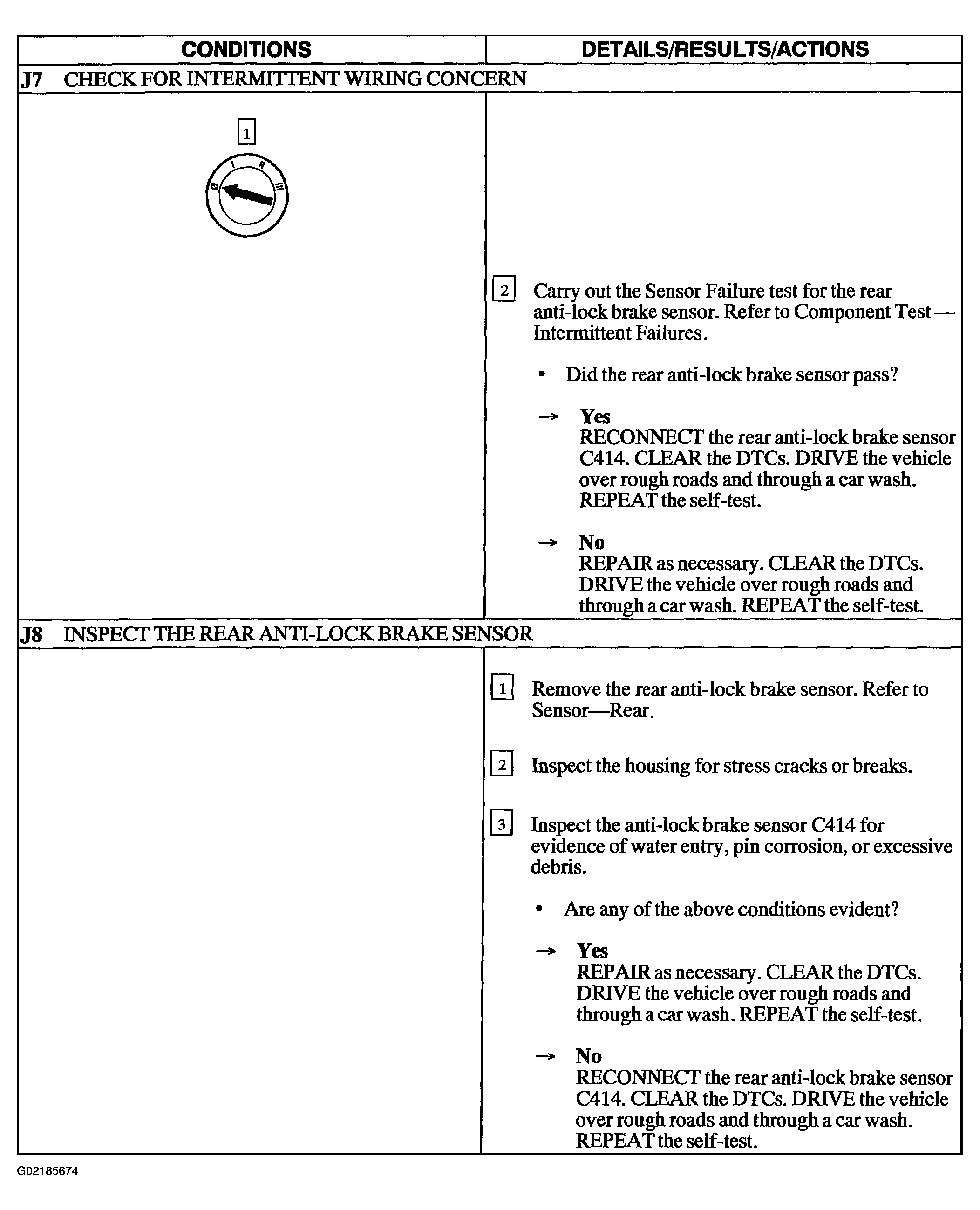

Fig 4: Pinpoint Test J: DTCs: C1229, C1237 - Rear Anti-Lock Brake Sensor Diagnosis (Dynamic) Chart (J7 & J8)

Courtesy of FORD MOTOR CO.
