Rear Wheel Bearing and Axle Shaft Oil Seal: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new rear axle bearing.
    • Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
  2. Using the special tools, install the rear wheel bearing.

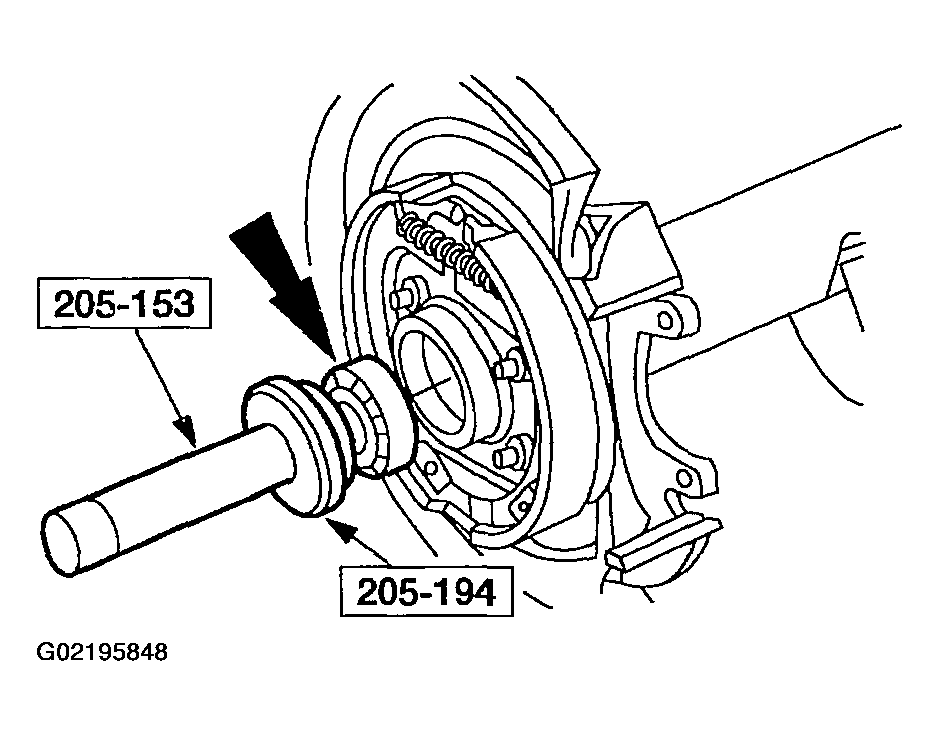

    Fig 1: Installing Rear Wheel Bearing
    G02195848Courtesy of FORD MOTOR CO.
  3. Lubricate the lip of the new wheel bearing oil seal.
    • Use Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESA-M1C75-B.
  4. Using the special tools, install the wheel bearing oil seal

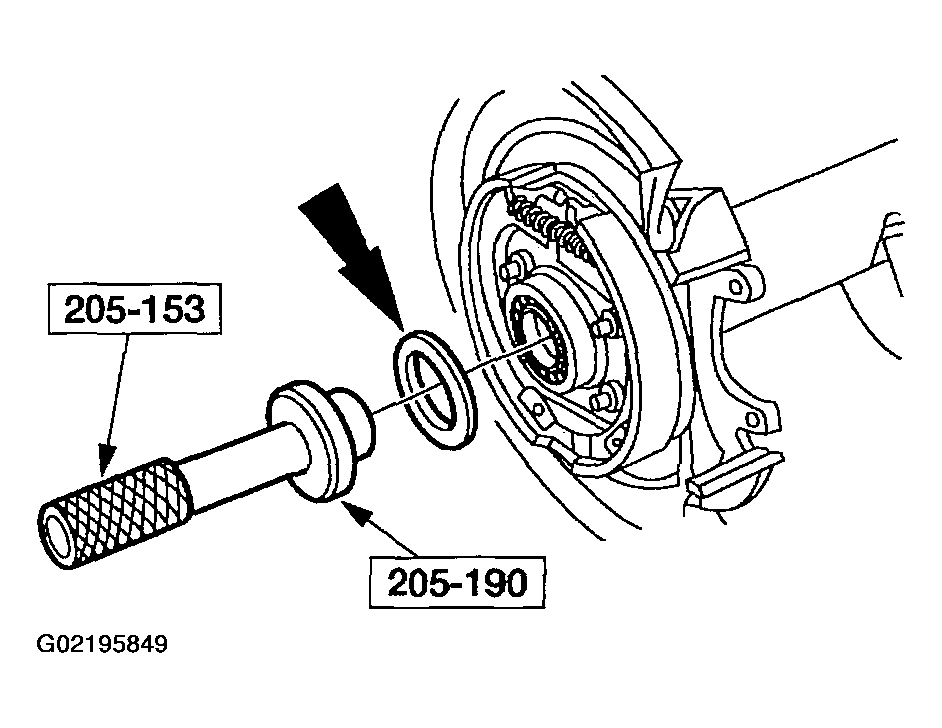

    Fig 2: Installing Wheel Bearing Oil Seal
    G02195849Courtesy of FORD MOTOR CO.
  5. Install the axle shafts. Refer to AXLE SHAFT .
