Axle Housing: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in a cross pattern as shown.

Fig 1: Installing U-Bolt Assembly

Courtesy of FORD MOTOR CO.

Fig 2: Tightening Shock Absorber Bolts

Courtesy of FORD MOTOR CO.

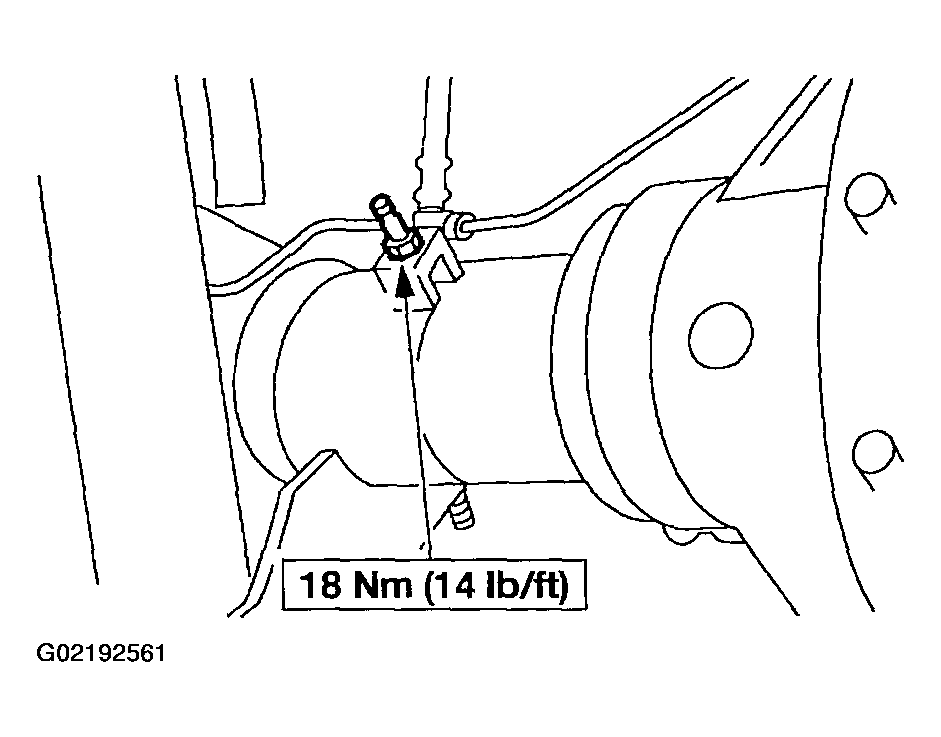

Fig 3: Tightening Brake Hose Junction Block Bolt

Courtesy of FORD MOTOR CO.

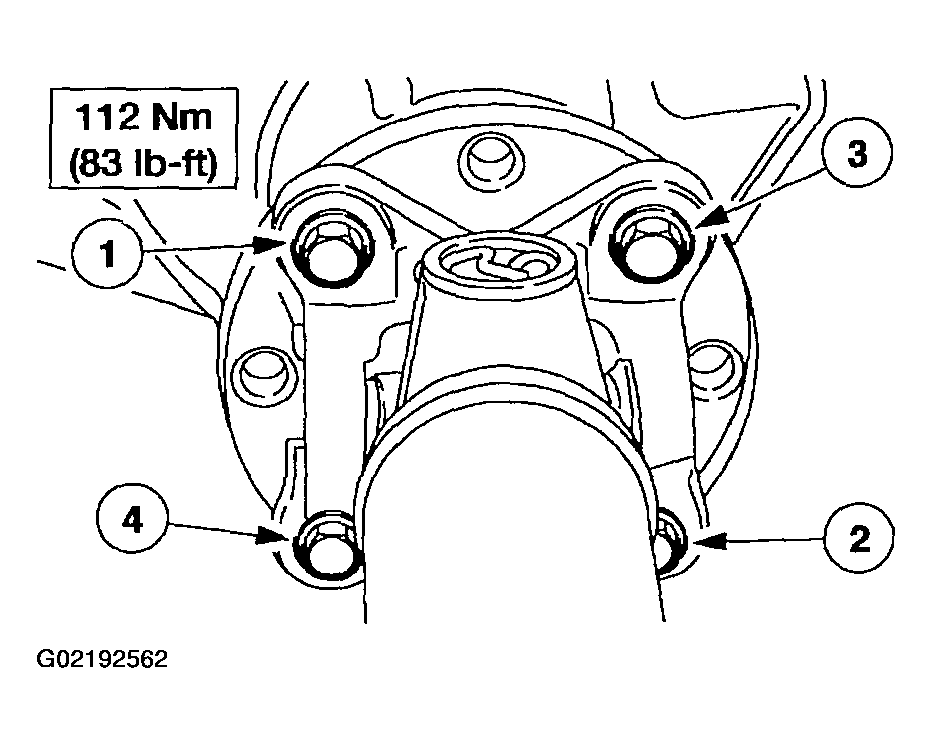

Fig 4: Drive Shaft Torque Sequence

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
