Transfer Case Rear Output Shaft Oil Seal: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the transfer case rear output shaft (pinion) seal.

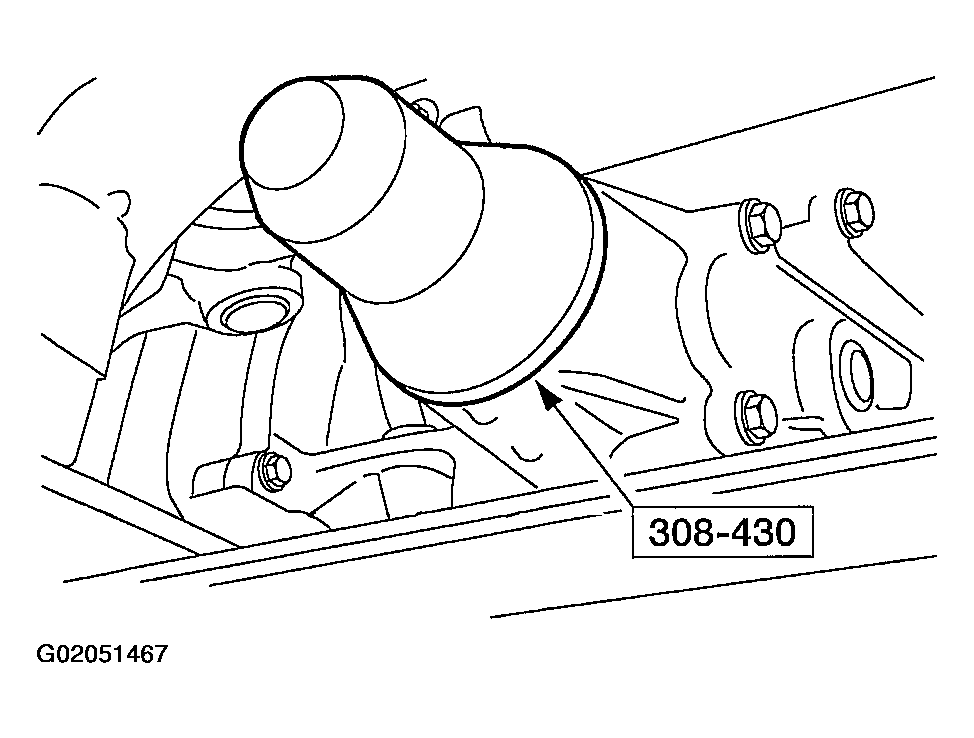

    Fig 1: Installing Transfer Case Rear Output Shaft
    G02051467Courtesy of FORD MOTOR CO.
  2. Install the companion flange. Refer to TRANSFER CASE REAR OUTPUT SHAFT FLANGE .
  3. Fill the transfer case. Refer to TRANSFER CASE DRAINING AND FILLING .
