Tubes - 2.3L & 3.0L: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a hoist.
Disconnect the fluid cooler inlet tube (7A030) from the radiator (8005).

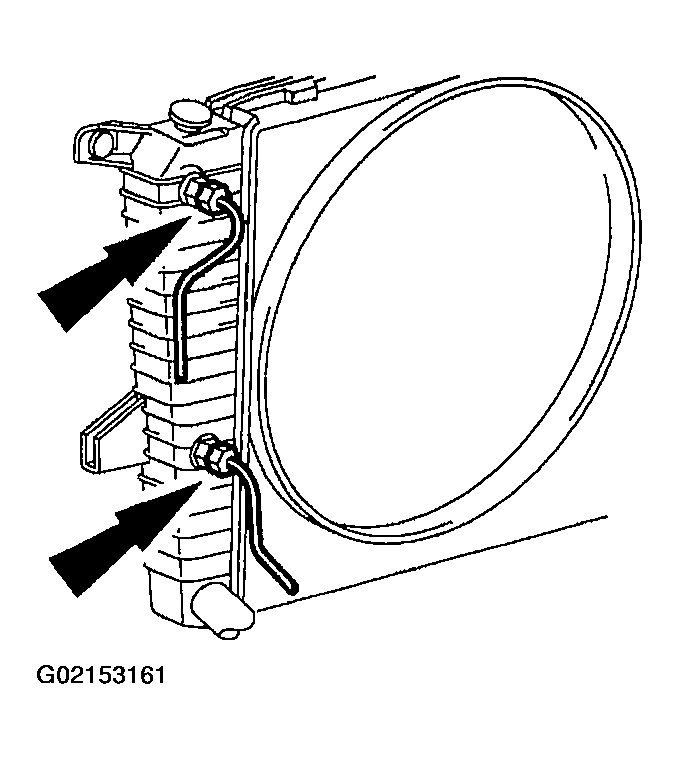

Fig 1: Disconnecting Fluid Cooler Inlet Tube From Radiator
Courtesy of FORD MOTOR CO.
Disconnect the fluid cooler inlet tube and the fluid cooler tube (7A031) from the transmission.

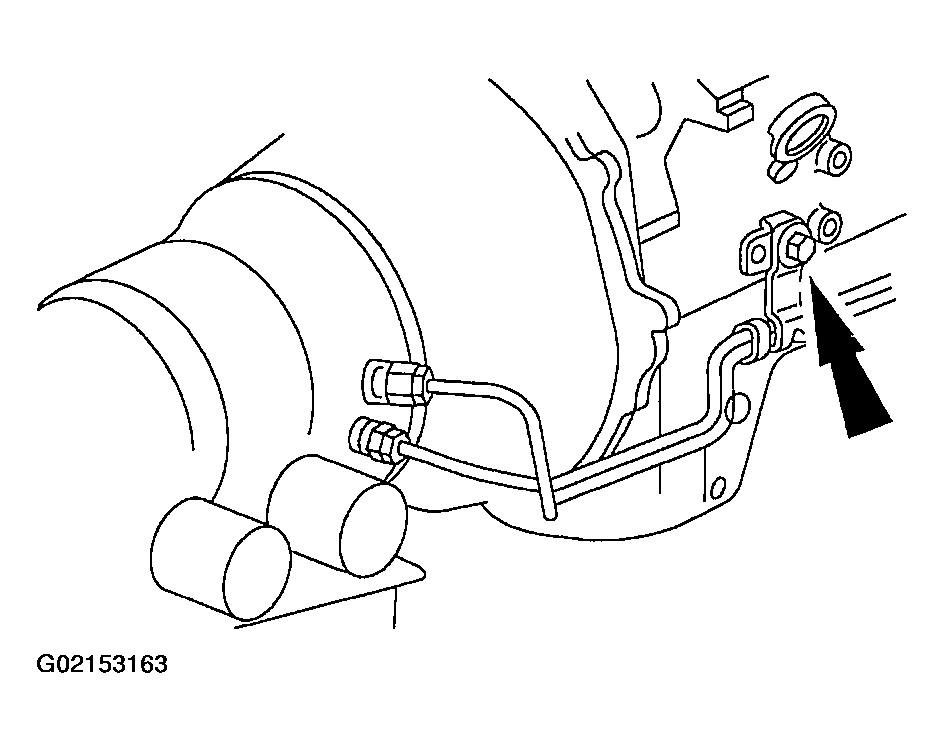

Fig 2: Disconnecting Fluid Cooler Inlet Tube & Fluid Cooler Tube From Transmission
Courtesy of FORD MOTOR CO.
Remove the transmission fluid cooler line clip, the fluid cooler inlet tube and the fluid cooler tube from the engine.

Fig 3: Removing Transmission Fluid Cooler Line Clip
Courtesy of FORD MOTOR CO.
