Shift Solenoid Failure Mode Chart "Always On"

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Failed OFF due to Powertrain Control Module (PCM) and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck ON.

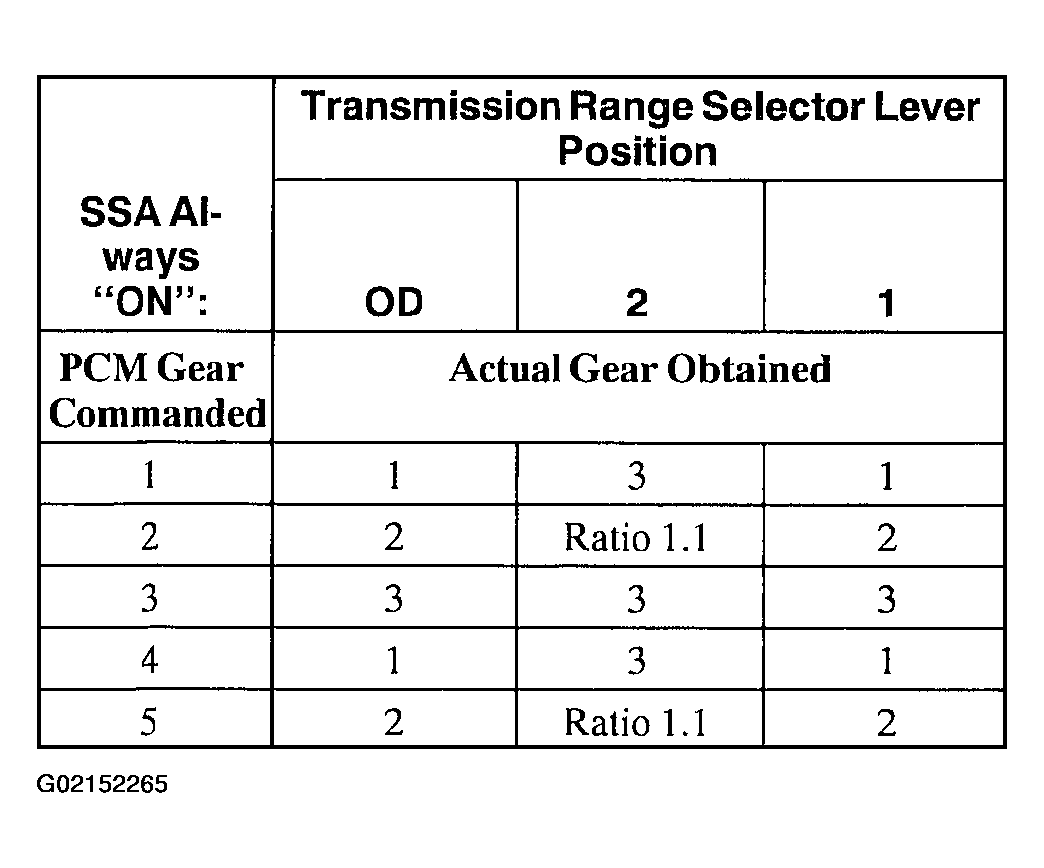

Fig 1: Shift Solenoid Failure Mode Chart - SSA Always On

Courtesy of FORD MOTOR CO.

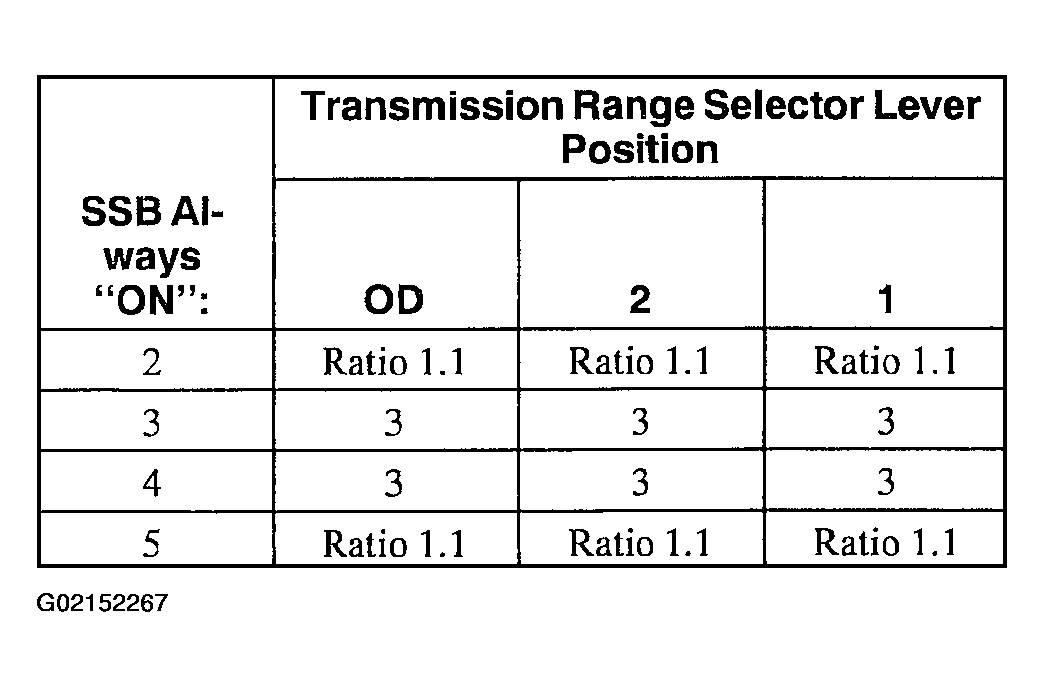

Fig 2: Shift Solenoid Failure Mode Chart - SSB Always On (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Shift Solenoid Failure Mode Chart - SSB Always On (2 Of 2)

Courtesy of FORD MOTOR CO.

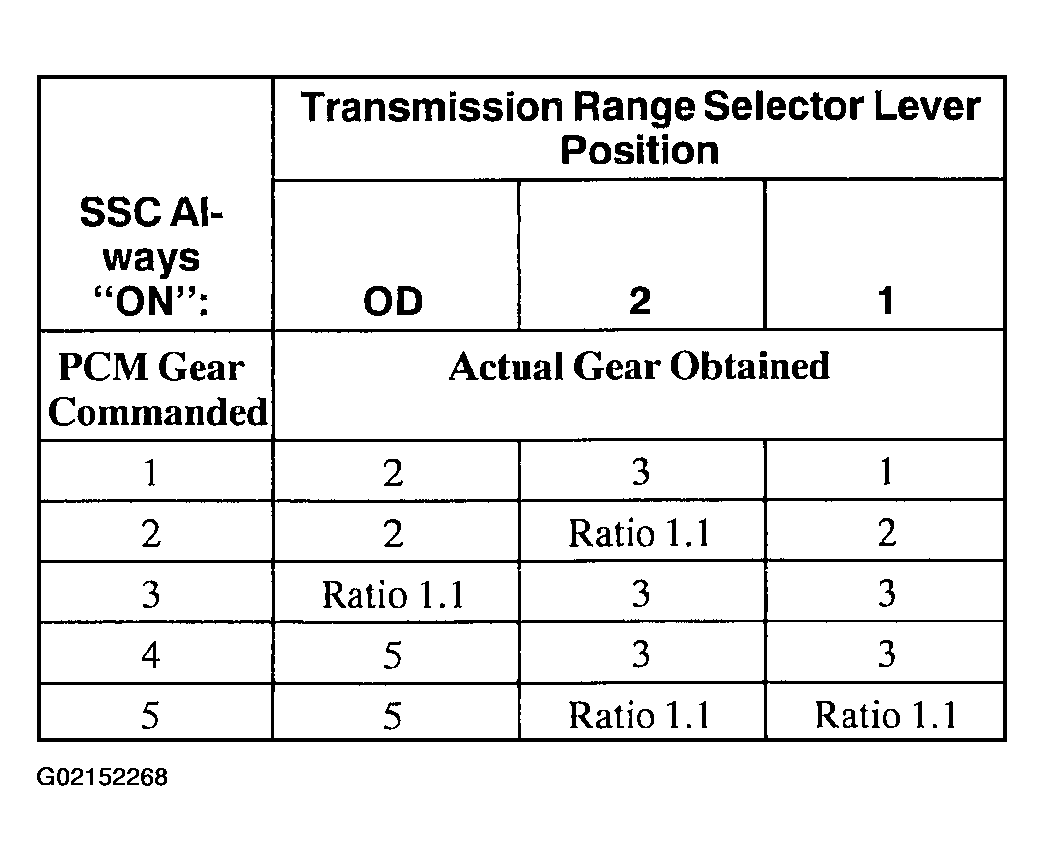

Fig 4: Shift Solenoid Failure Mode Chart - SSC Always On

Courtesy of FORD MOTOR CO.

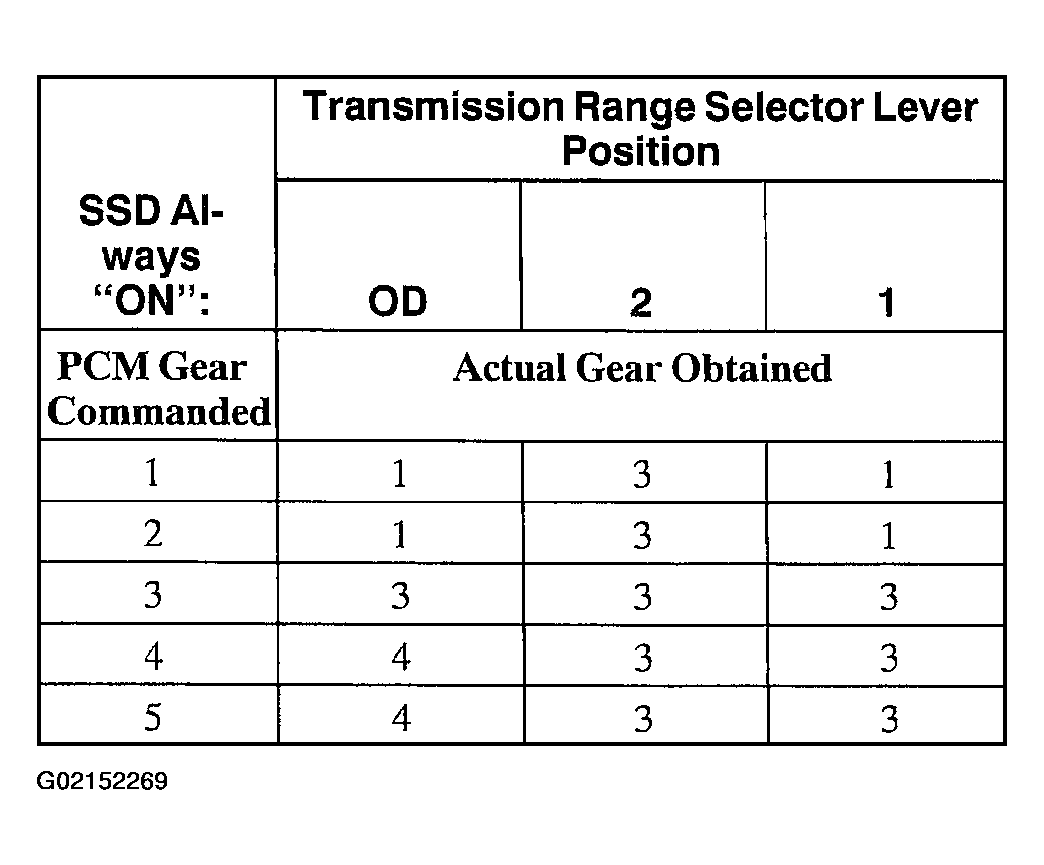

Fig 5: Shift Solenoid Failure Mode Chart - SSD Always On

Courtesy of FORD MOTOR CO.
