Clutch - Intermediate

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

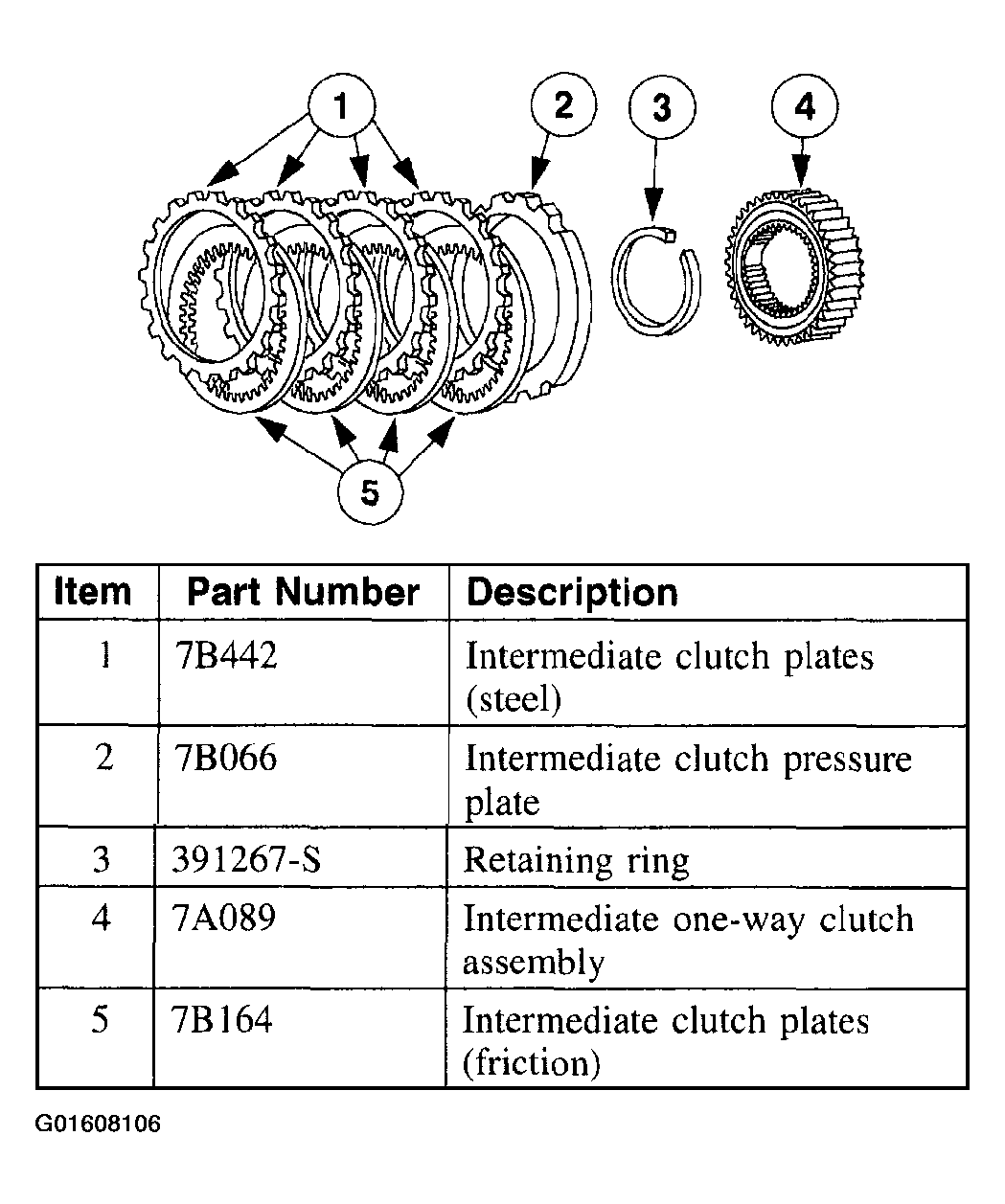

Fig 1: Intermediate Clutch Disassembled View
G01608106Courtesy of FORD MOTOR CO.

The intermediate clutch works with the intermediate one-way clutch to hold the reverse sun gear stationary in second gear. The intermediate clutch remains applied in third and fourth gears, but does not transmit power.
