Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    2. NOTE: Empty the lubricant into a clean container for reuse.
  2. Remove the differential housing cover (4033).
    1. Remove the bolts and drain the lubricant from the differential housing (4010).
    2. Remove the differential housing cover.

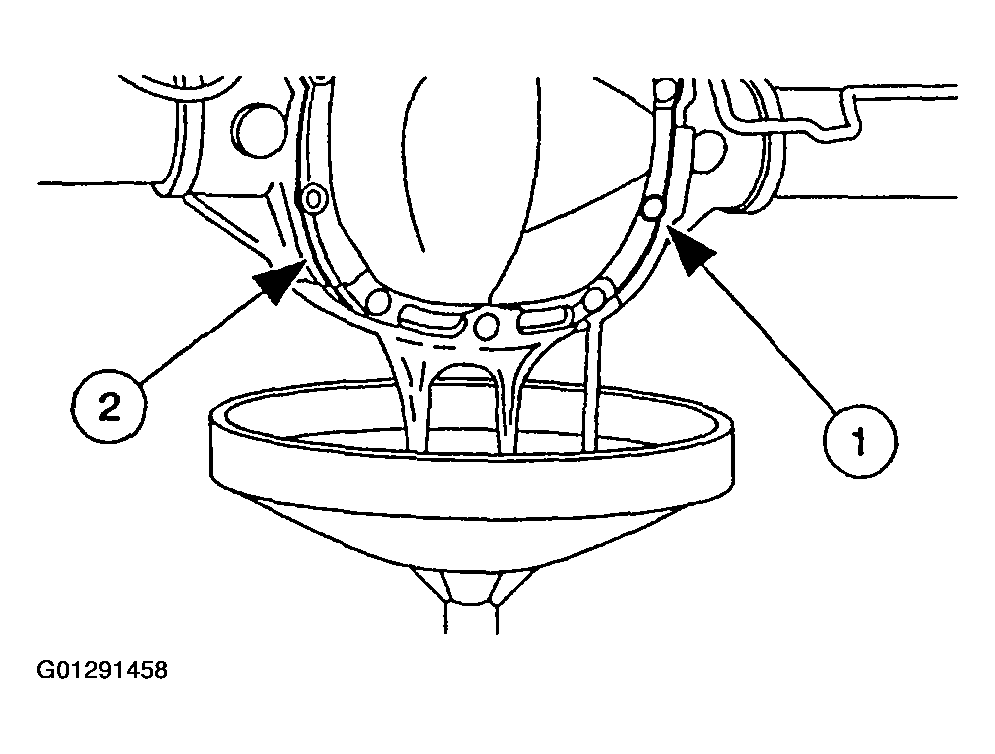

      Fig 1: Removing Differential Housing Cover
      G01291458Courtesy of FORD MOTOR CO.
