Low One-Way Clutch (OWC) Exploded View

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

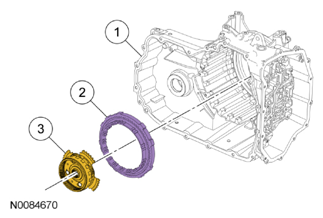

Fig 1: Exploded View Of Low One-Way Clutch (OWC) Components
G07782531Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7005 Transaxle case
2 7A089 Low One-Way Clutch (OWC)
3 7D491 Rear planetary carrier
