Pcm Connector End View & Pcm Connector Circuit Functions (Excursion & F250-F550 Super Duty)

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2003 Mercury Sable, 2003 Mercury Mountaineer, 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

EXCURSION & F250-F550 SUPER DUTY PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Excursion & F250-F550 Super Duty	Fig 1	Fig 2-Fig 5

Fig 1: Identifying PCM Connector Terminals (Excursion & F250-F550 Super Duty)

Courtesy of FORD MOTOR CO.

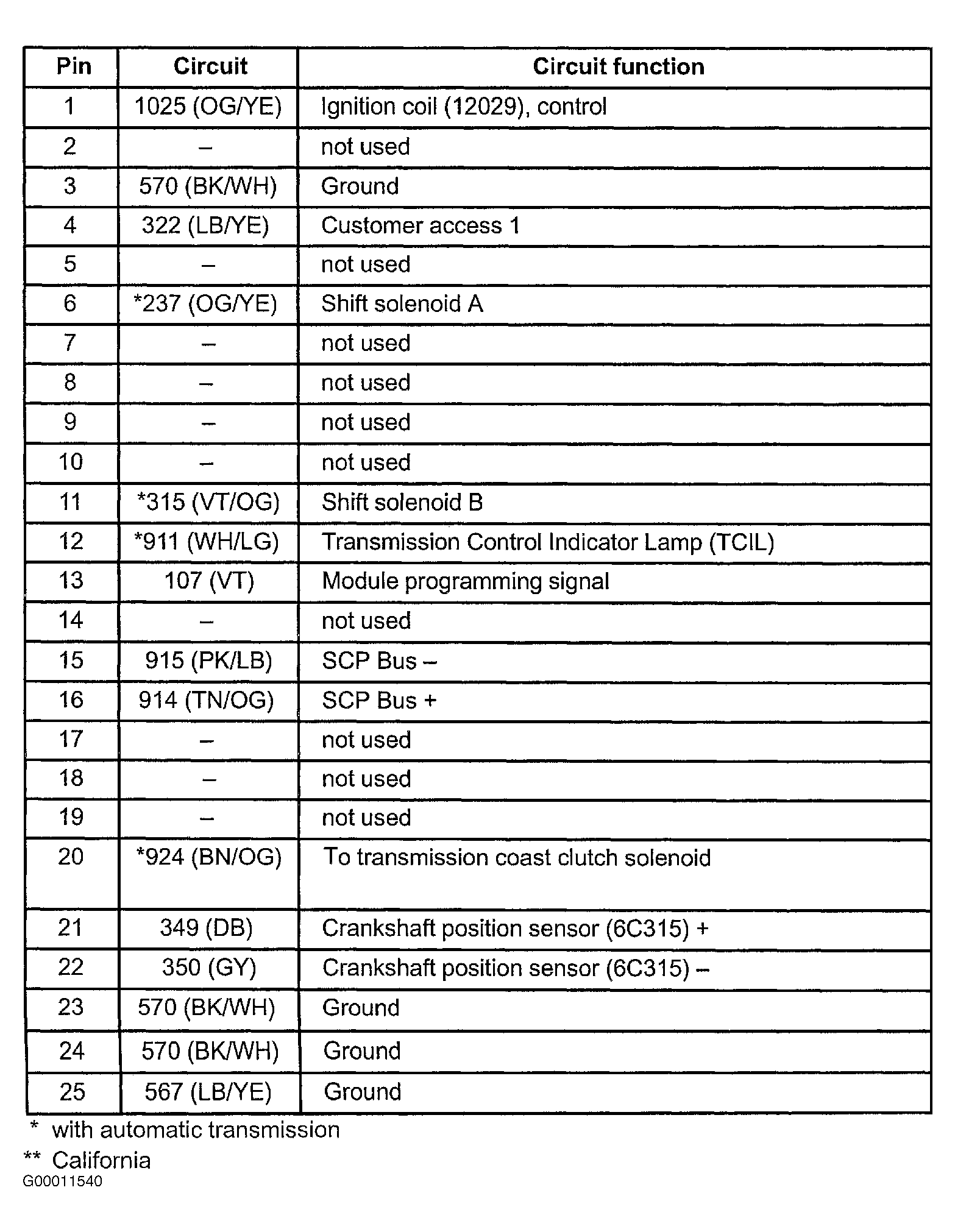

Fig 2: Identifying PCM Connector Circuit Functions (1 Of 4 - Excursion & F250-F550 Super Duty)

Courtesy of FORD MOTOR CO.

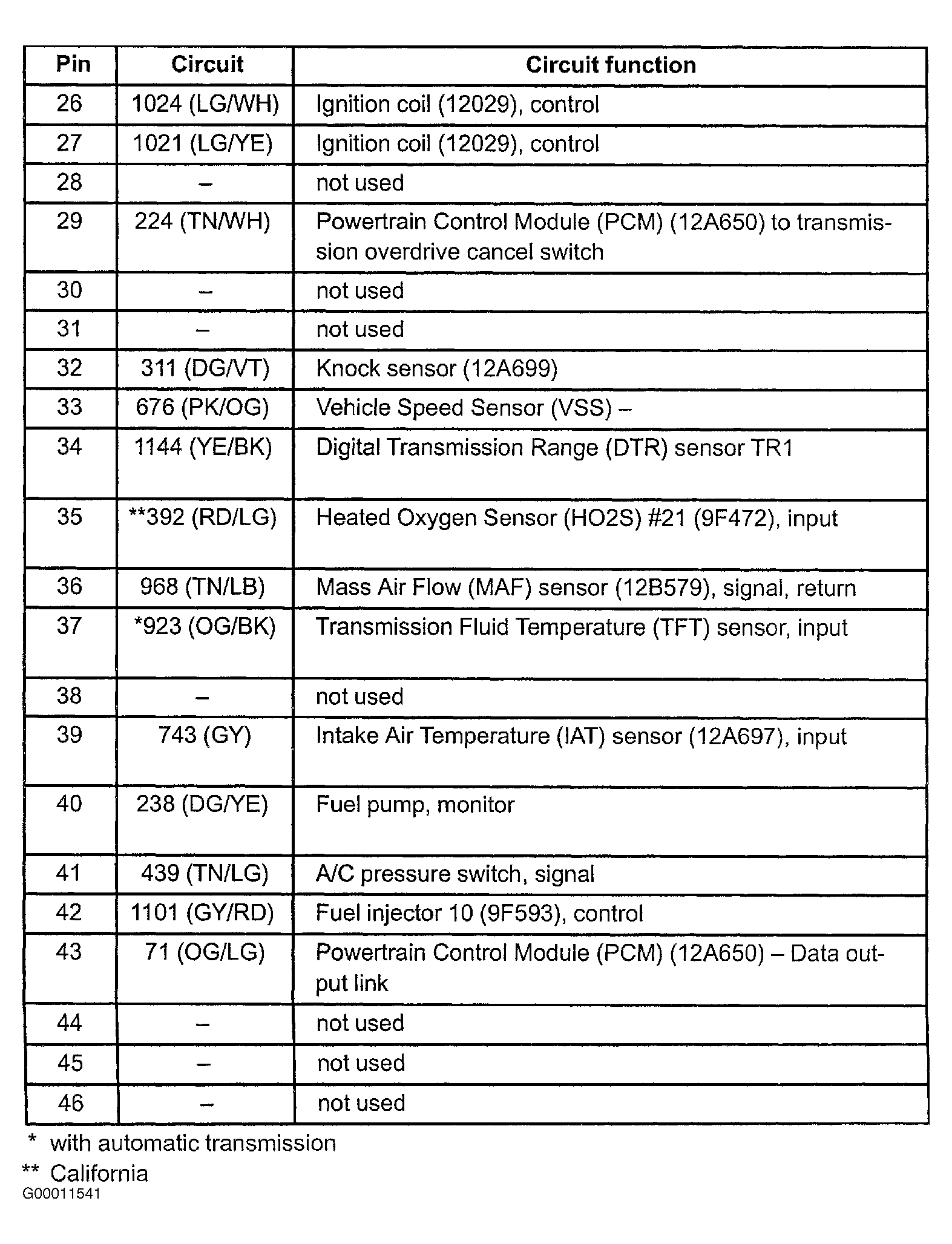

Fig 3: Identifying PCM Connector Circuit Functions (2 Of 4 - Excursion & F250-F550 Super Duty)

Courtesy of FORD MOTOR CO.

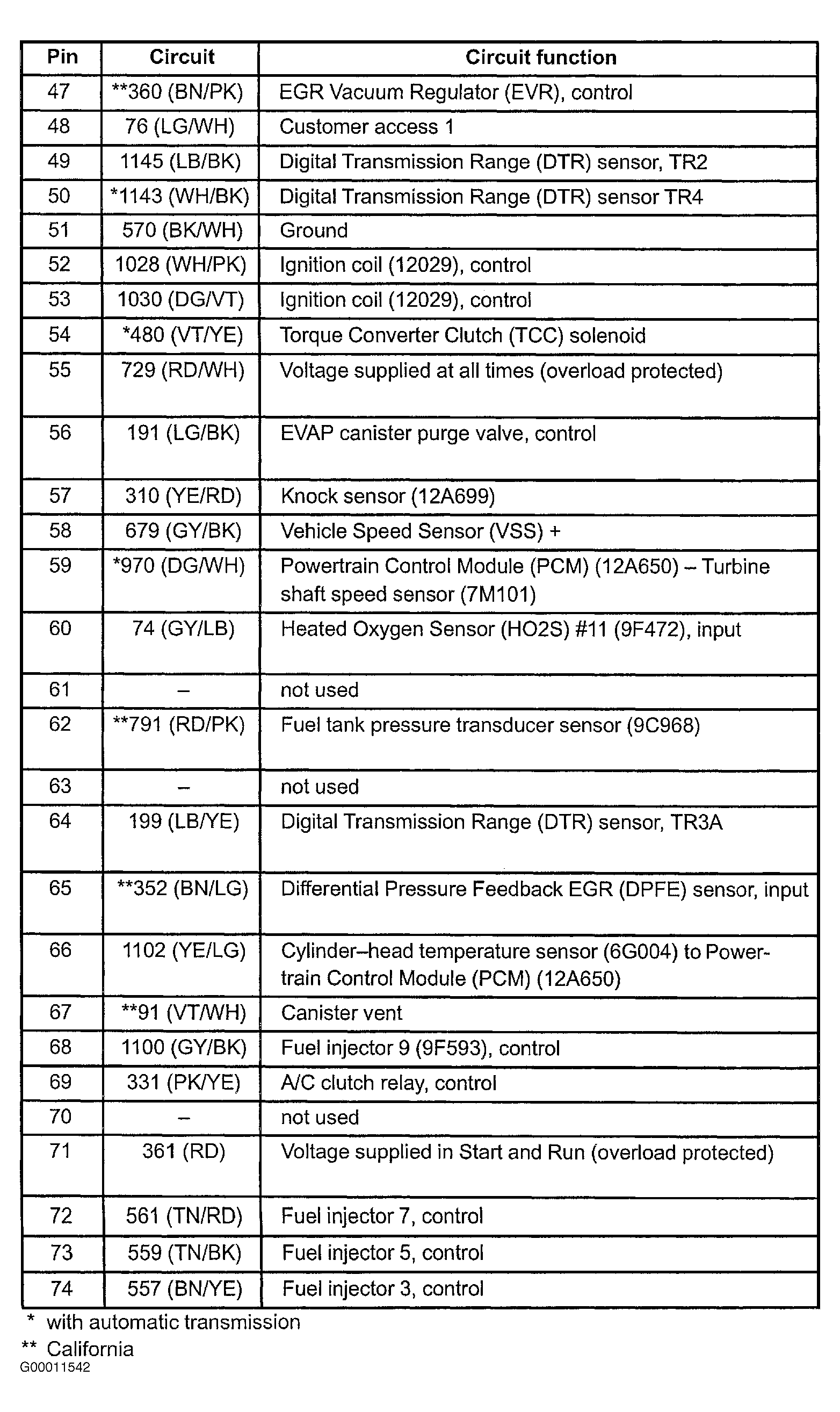

Fig 4: Identifying PCM Connector Circuit Functions (3 Of 4 - Excursion & F250-F550 Super Duty)

Courtesy of FORD MOTOR CO.

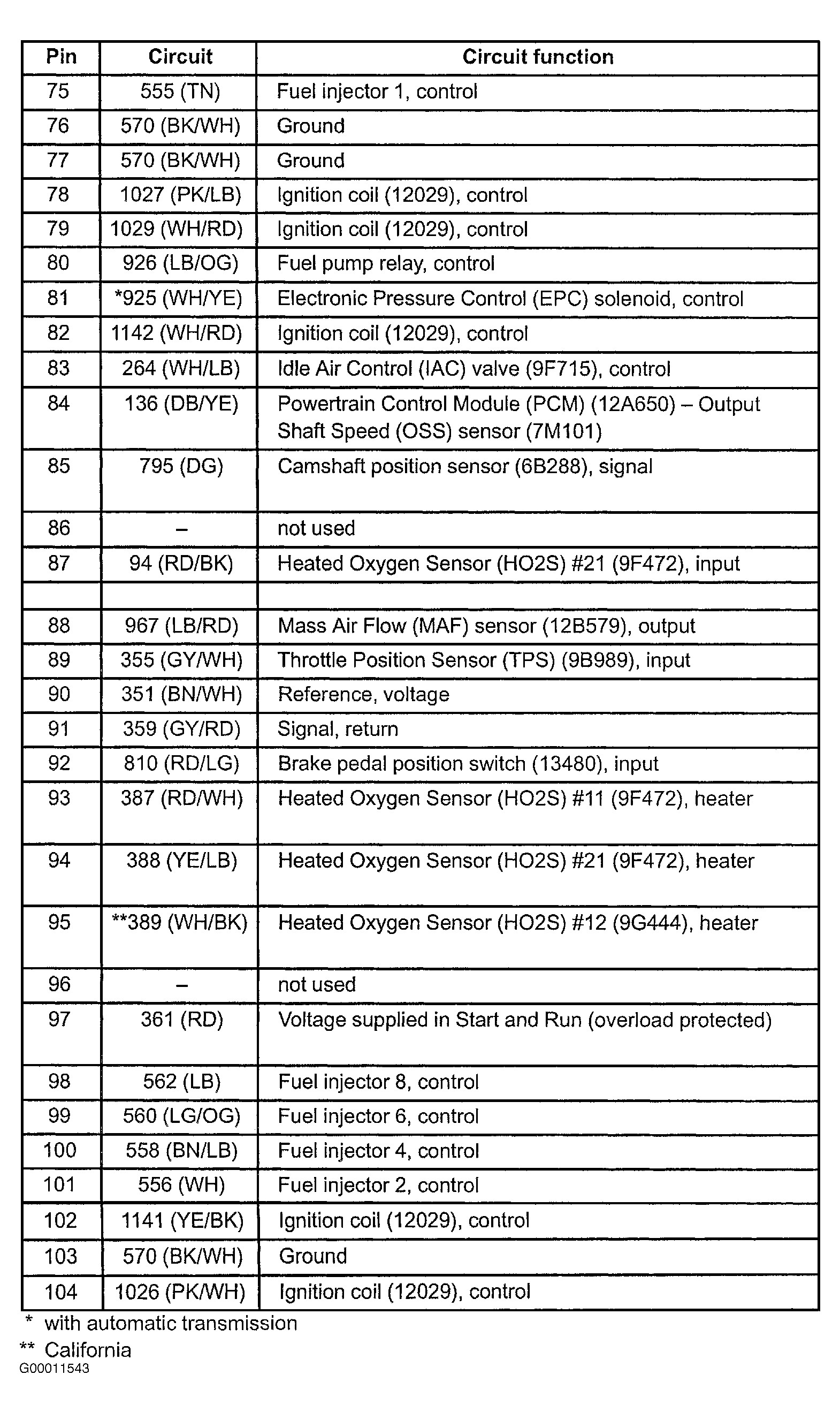

Fig 5: Identifying PCM Connector Circuit Functions (4 Of 4 - Excursion & F250-F550 Super Duty)

Courtesy of FORD MOTOR CO.
