Pinpoint Test KN: Variable Speed Electric Cooling Fan: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

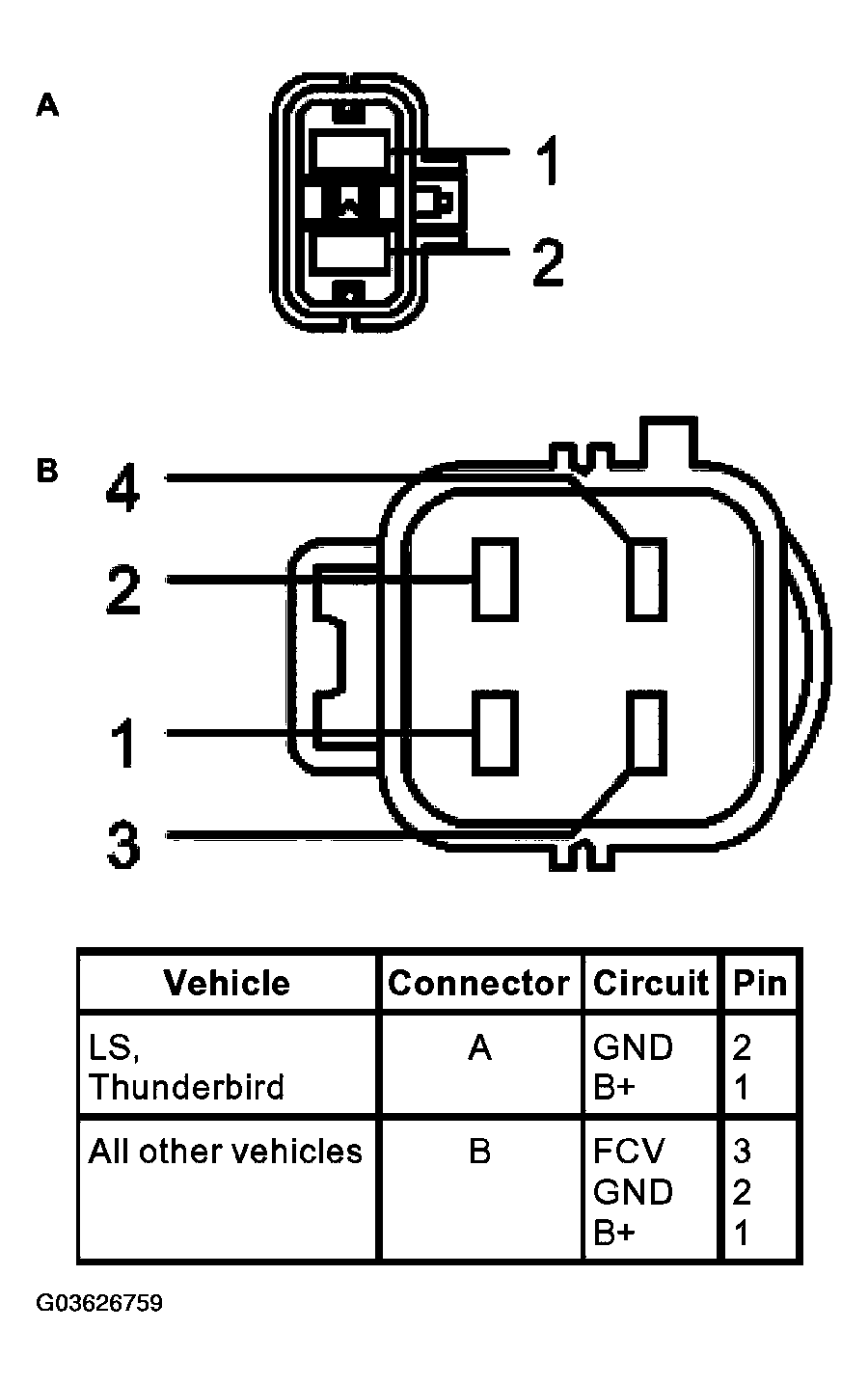

Fig 1: Identifying Cooling Fan (CF) Motor Connector
G03626759Courtesy of FORD MOTOR CO.
Fig 2: Identifying Cooling Fan Controller (CFC) Module Connector
G03626760Courtesy of FORD MOTOR CO.
