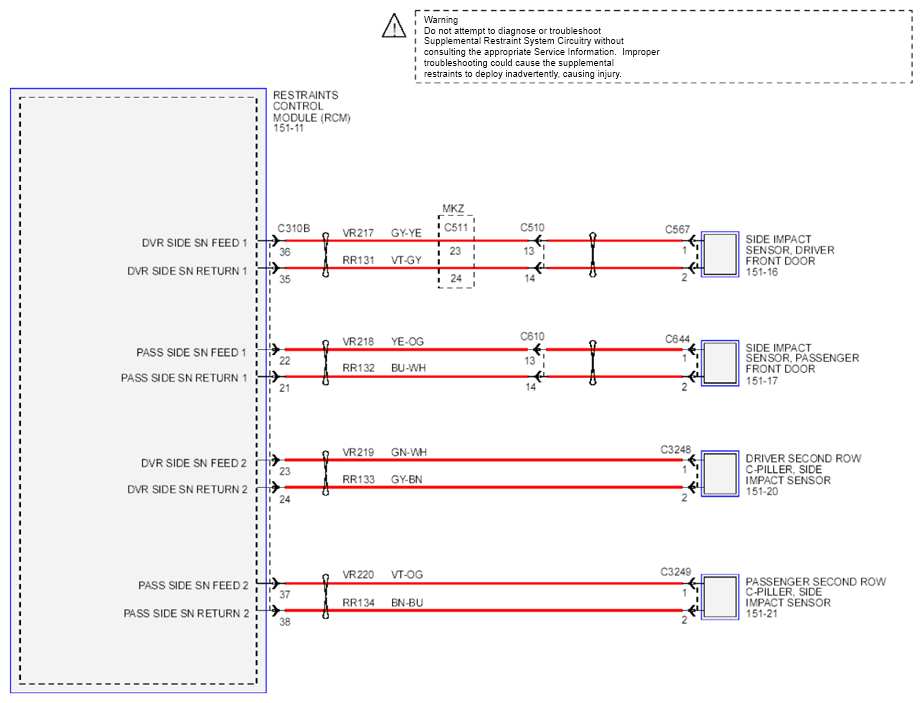

Fig 1: Supplemental Restraint System Circuit Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

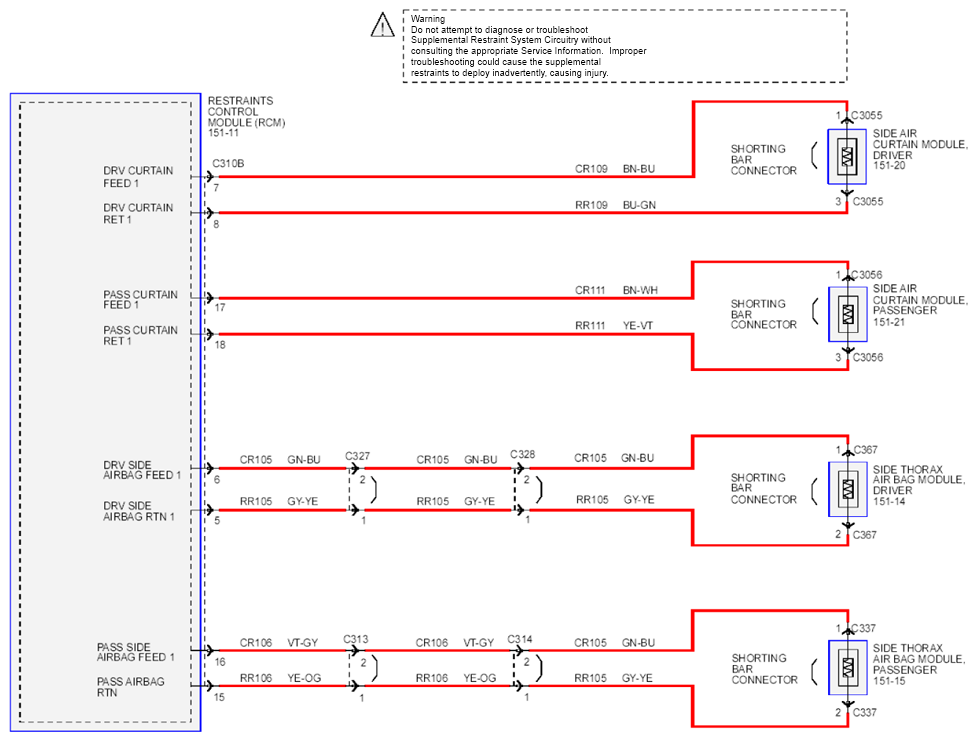

Fig 2: Supplemental Restraint System Circuit Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

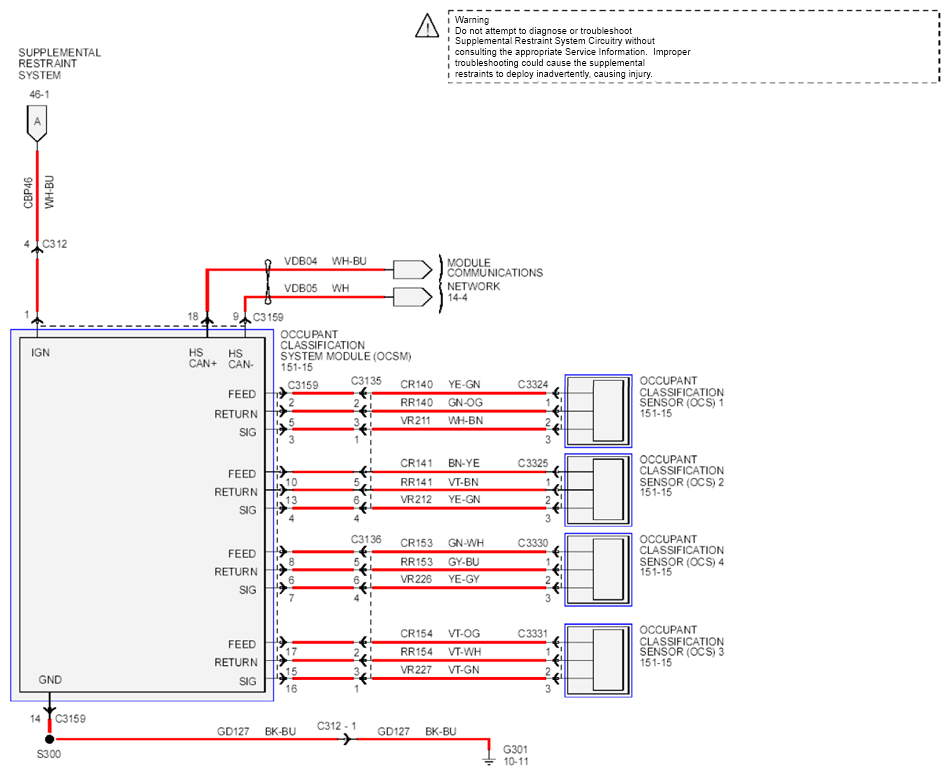

Fig 3: Supplemental Restraint System Circuit Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

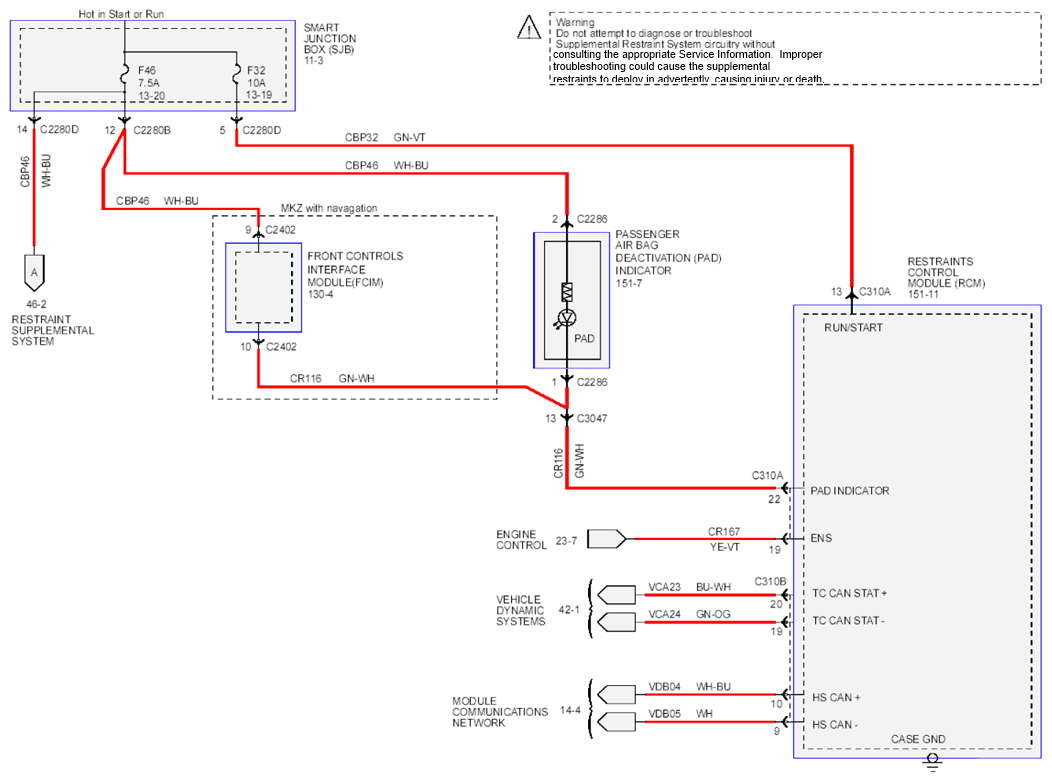

Fig 4: Supplemental Restraint System Circuit Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

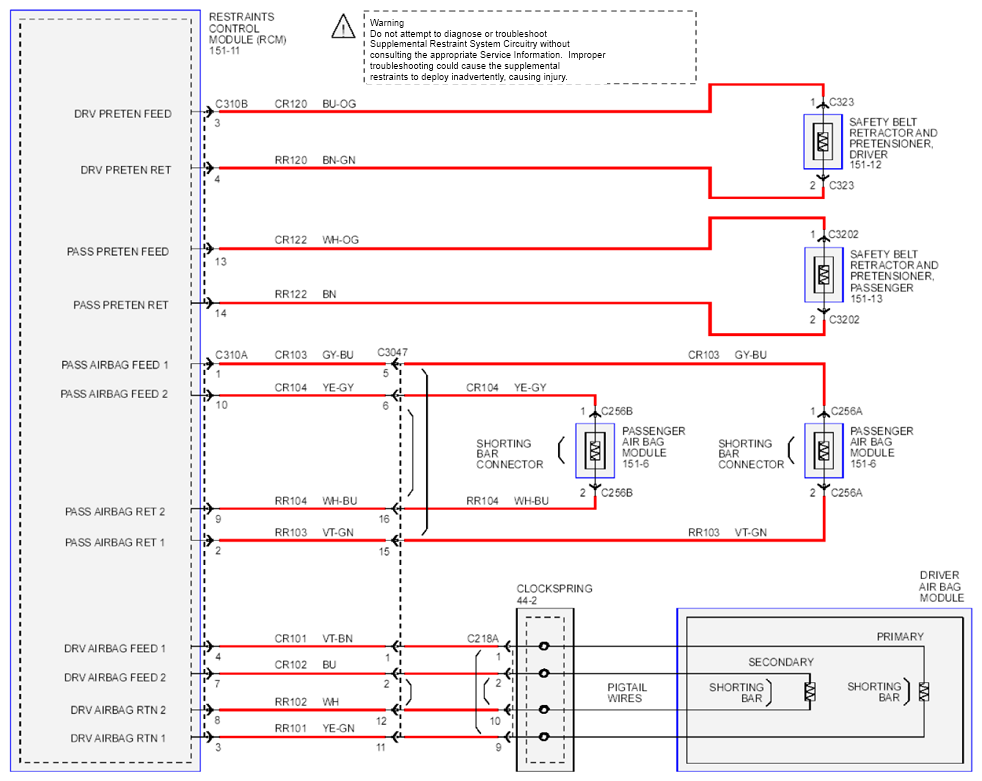

Fig 5: Supplemental Restraint System Circuit Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

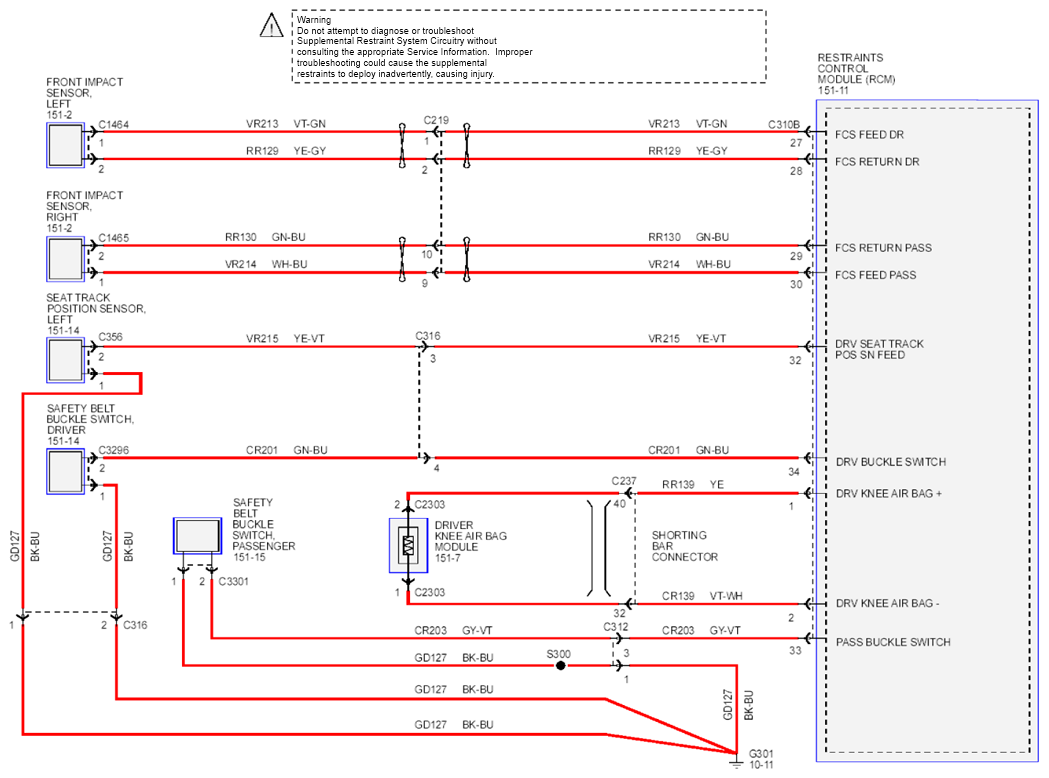

Fig 6: Supplemental Restraint System Circuit Diagram (6 Of 6)
