WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

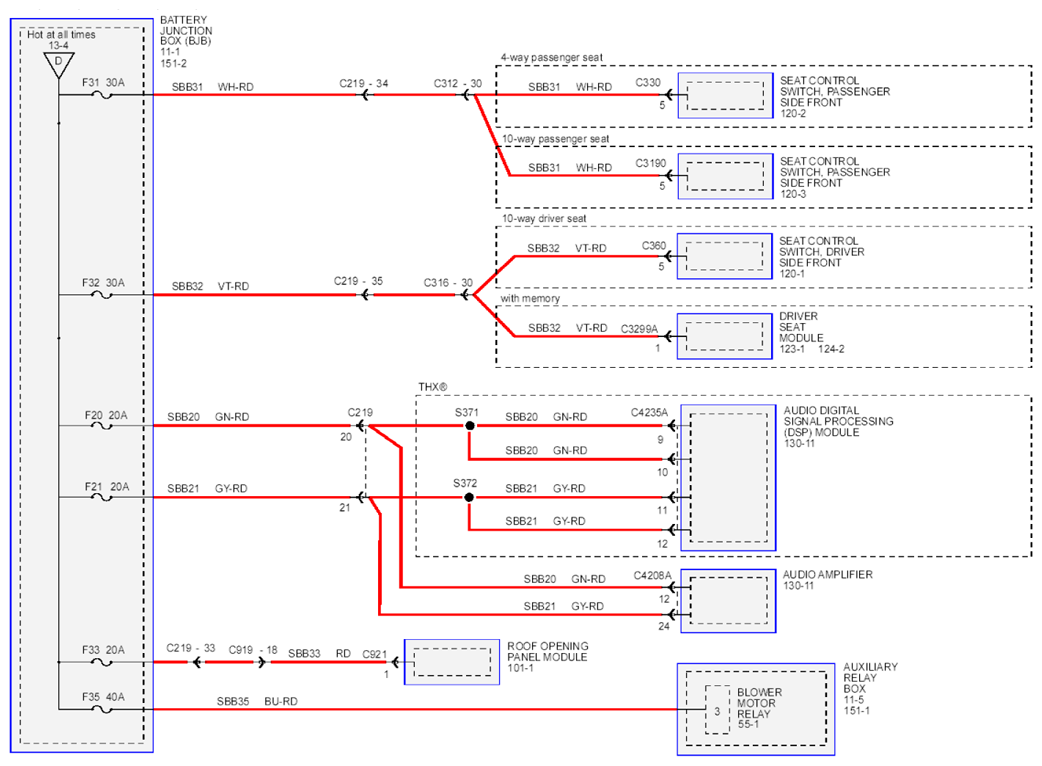

Fig 1: Power Distribution SJB Circuit Diagram (F20, F21, F31, F32, F33, F35)
