Stabilizer Bar and Link: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear stabilizer bar (5A772).
1. Remove the lower nut, washer and insulator.
2. Remove the upper bolt and washer.
3. Remove the rear stabilizer bar.

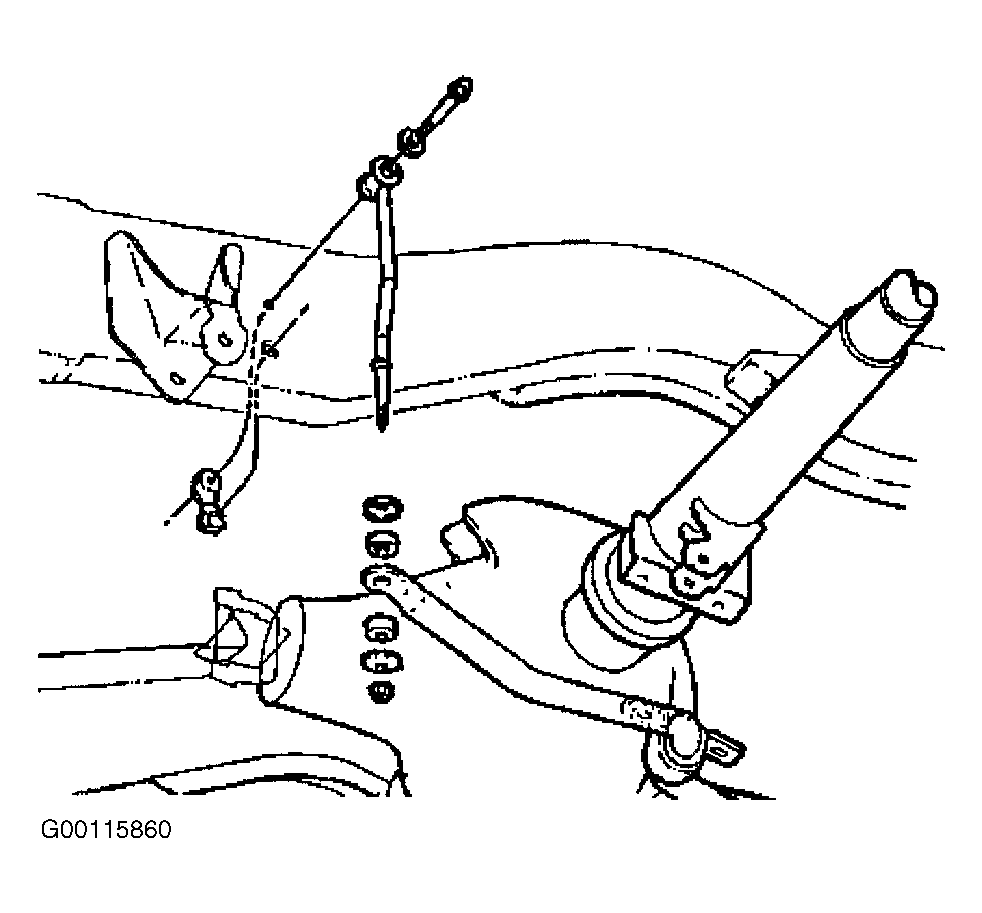

  Fig 1: Rear Stabilizer Bar Replacement
  Courtesy of FORD MOTOR CO.
Remove the stabilizer bar.
1. Remove the bolts from the stabilizer bar retainer.
2. Remove the stabilizer bar.

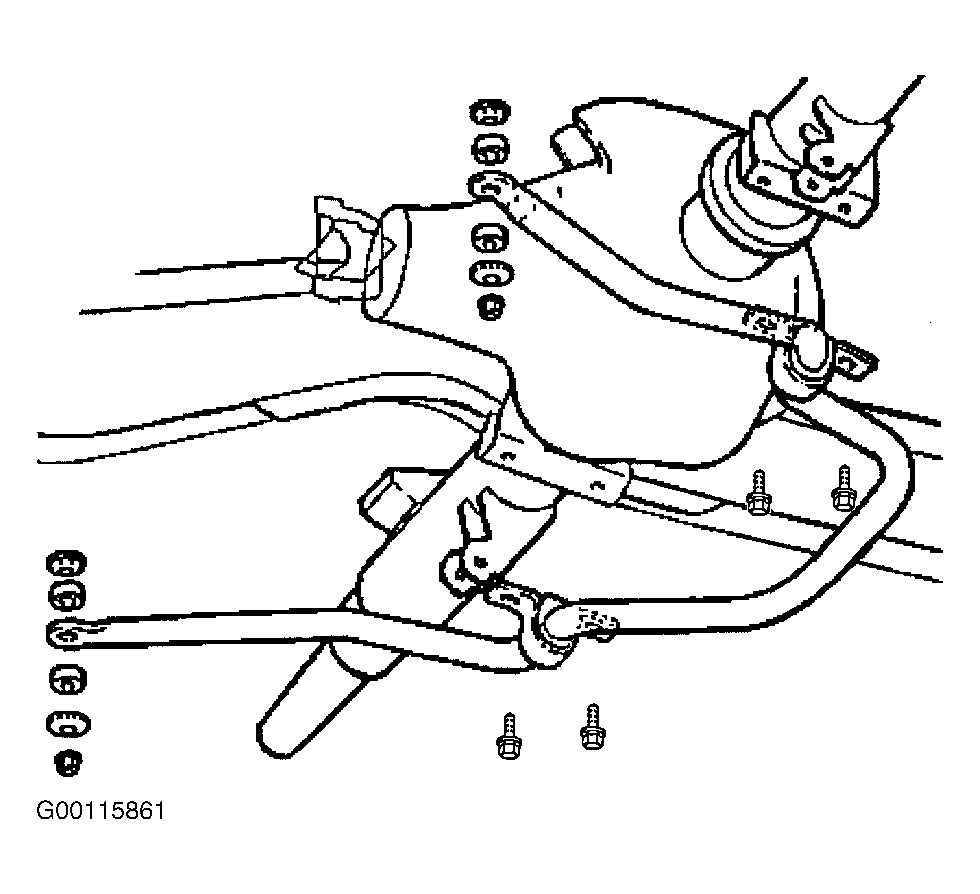

  Fig 2: Stabilizer Bar Replacement
  Courtesy of FORD MOTOR CO.
