Item 6: Wheel Stud Installation Note

WARNING: This page is about a different car, the 2004 Lincoln LS and 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not use power tools to install the wheel stud. The serrations on the stud can be stripped.
    NOTE: Do not use the wheel nut that came with the vehicle.
  1. Install washers and a new wheel nut on the wheel stud and tighten the nut until the stud seats against the flange. Discard the wheel nut and washers.

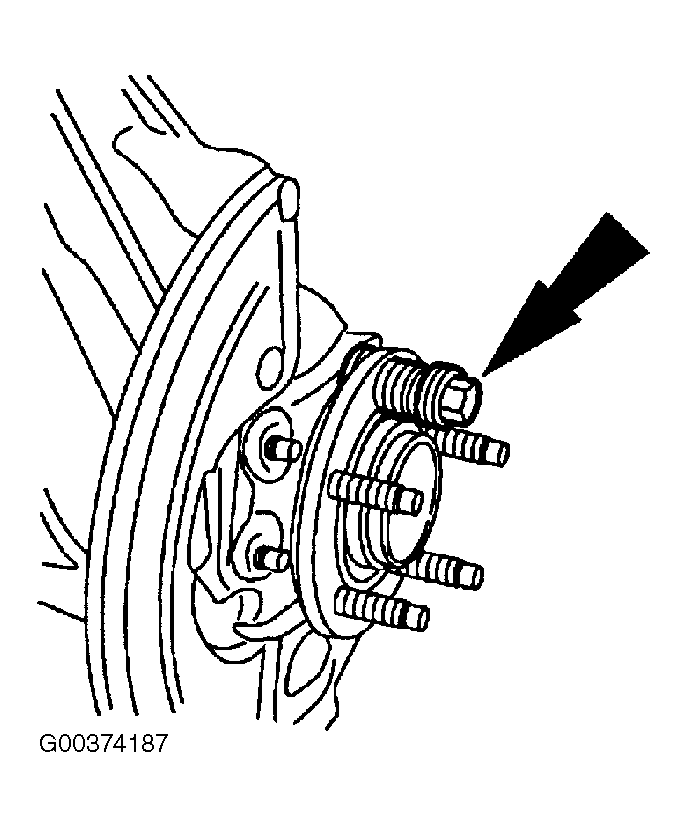

Fig 1: Installing Wheel Stud
G00374187Courtesy of FORD MOTOR CO.
