Starter Current Draw Test
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

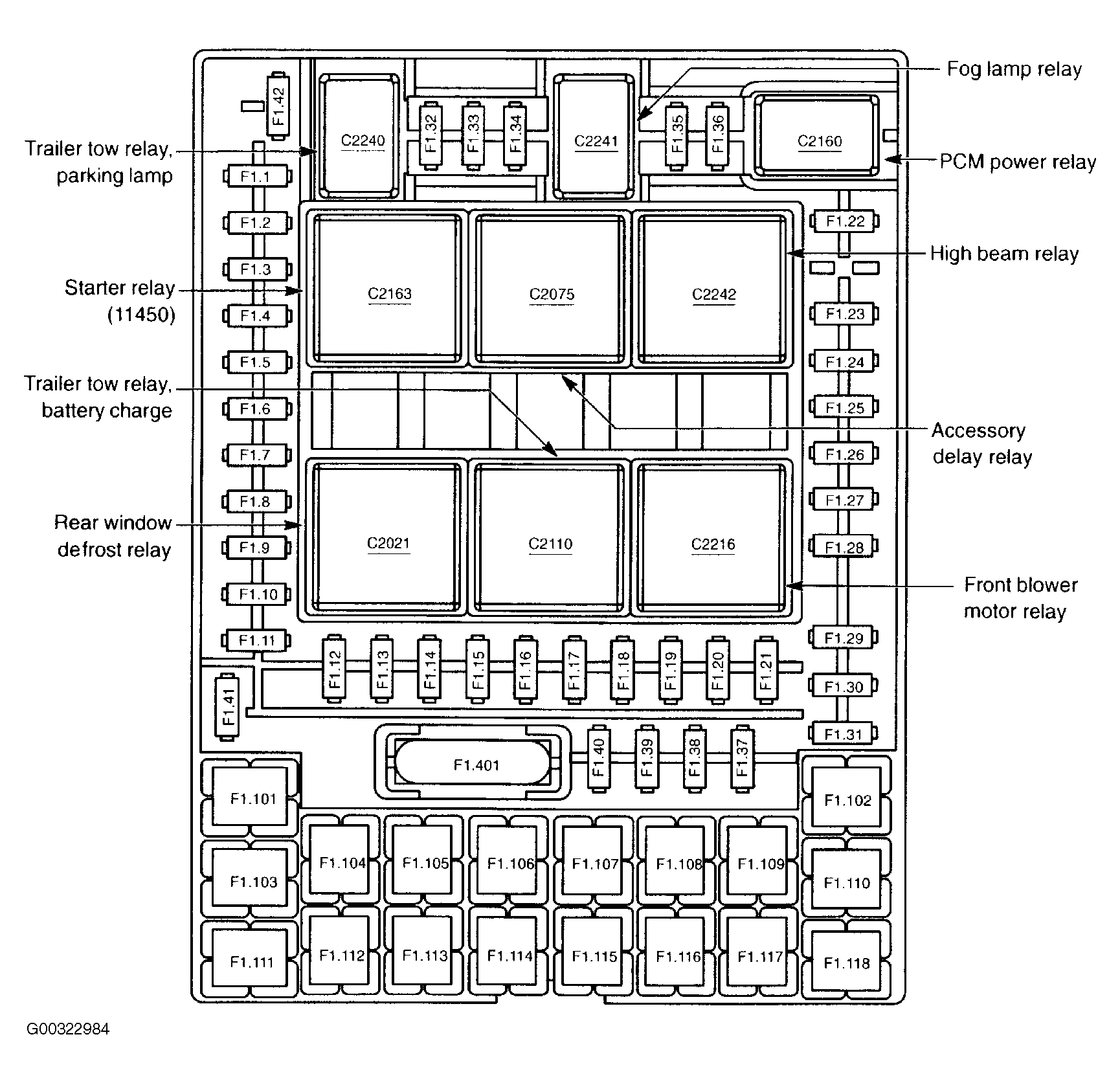

Ensure battery is fully charged. Set parking brake and place transmission in neutral. Ensure battery connections are clean and tight. Remove fuse No. 40 in central junction box. See Figure. Clamp inductive ammeter lead around all positive battery cables leading to starter. Crank engine for about 5 seconds and check amperage reading while cranking. See STARTER MOTOR SPECIFICATIONS . If amperage draw exceeds specification, replace starter.
