Removal & Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Ford Pickup, 2004 Ford Excursion, 2004 Ford Cab & Chassis, 2003 Ford Pickup, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

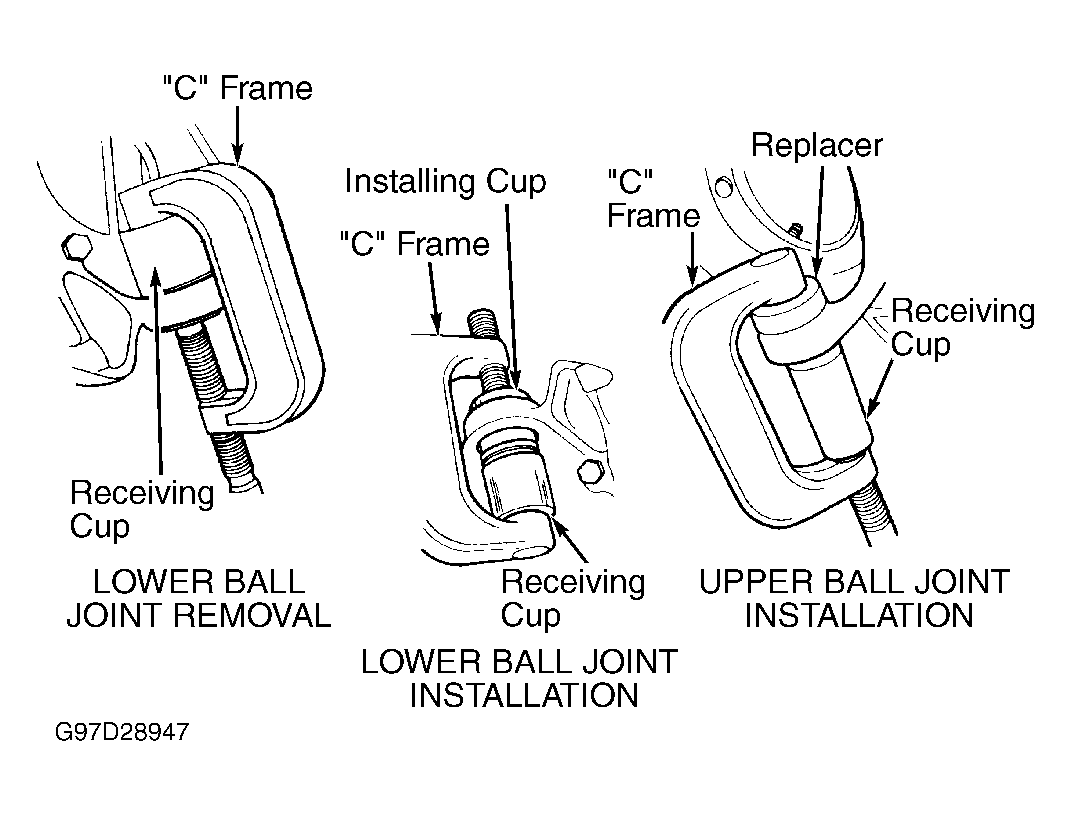

Raise and support vehicle. Remove wheel assembly. Remove steering knuckle. See STEERING KNUCKLE . Place steering knuckle in a vise. Remove snap ring. Using Receiving Cup (D81T-3010-A) and C - Frame And Screw (T74P-4635-C), press upper ball joint from steering knuckle. See Fig 1. To install, clean steering knuckle ball joint bore. Reverse removal procedure.
