Ball Joints: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup, 2004 Ford Excursion, 2003 Ford Pickup, 2003 Ford Excursion, and 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Installer/Remover, C-Frame and Screw 205-086 (T74P-4635-C) | |
| Remover/Installer, Ball Joint 204-358 or equivalent | |
| Remover/Installer, Ball Joint 204-355 or equivalent |

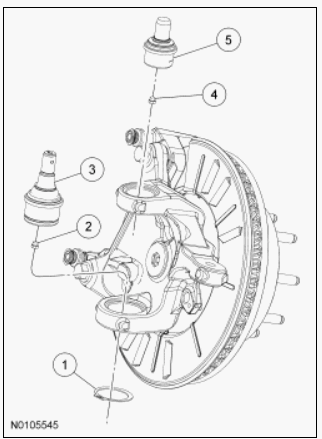

| Item | Part Number | Description |
| 1 | 97541 | Snap ring |
| 2 | - | Grease fitting (part of 3050) |
| 3 | 3050 | Lower ball joint |
| 4 | - | Grease plug (part of 3049) |
| 5 | 3049 | Upper ball joint |
