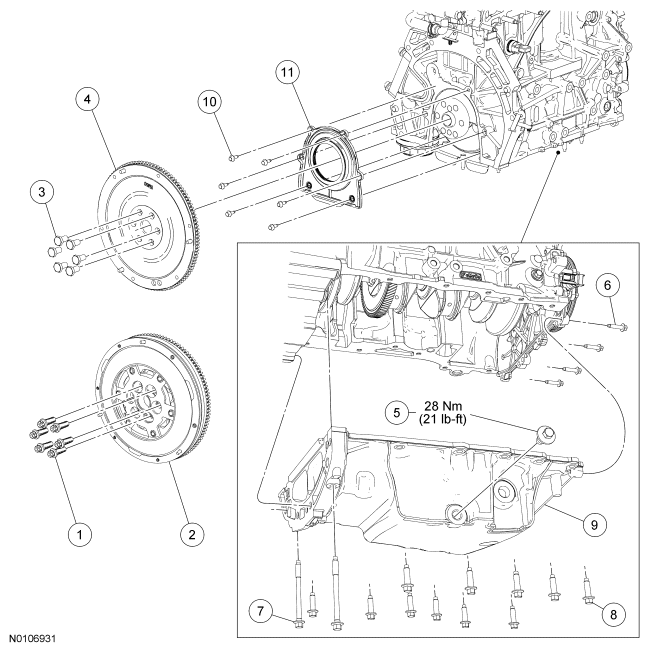

Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 6379 | Flywheel bolt (6 required) |
| 2 | 6K390 | Flywheel |
| 3 | 6379 | Flexplate bolt (6 required) |
| 4 | 6K375 | Flexplate |
| 5 | 6730 | Oil pan drain plug |
| 6 | W500215 | Engine front cover bolt (4 required) |
| 7 | W706284 | Oil pan bolt (2 required) |
| 8 | W500224 | Oil pan bolt (11 required) |
| 9 | 6675 | Oil pan |
| 10 | W500212 | Crankshaft rear oil seal with retainer plate bolt (6 required) |
| 11 | 6K318 | Crankshaft rear oil seal with retainer plate |
- For additional information, refer to the procedures in this article.
