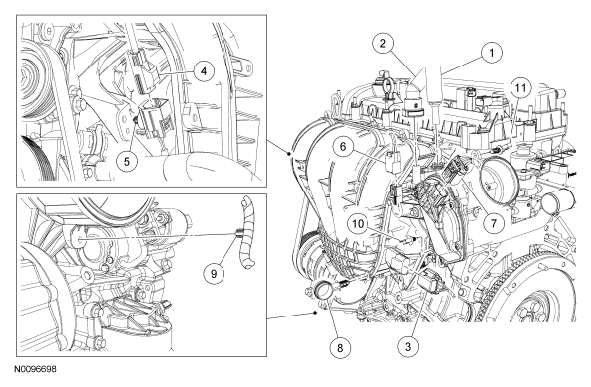

Intake Manifold (View 1 of 2)
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 19D848 | Vacuum supply hose |
| 2 | 9D289 | Fuel vapor return hose |
| 3 | 14A464 | Manifold Absolute Pressure (MAP) sensor electrical connector (part of 12C508) |
| 4 | 14A464 | Knock Sensor (KS) electrical connector (part of 12C508) |
| 5 | 14A624 | KS wire harness pin-type retainer (part of 12C508) |
| 6 | 14A464 | Evaporative Emission (EVAP) canister purge valve electrical connector (part of 12C508) |
| 7 | 14A464 | Electronic throttle control electrical connector (part of 12C508) |
| 8 | 18K580 | Heater hose pin-type retainer |
| 9 | 13A506 | A/C compressor wiring harness retainer (part of 14B060) |
| 10 | 13A506 | Wire harness pin-type retainer |
| 11 | 14197 | Wire harness pin-type retainer |
