Oil Pan, Oil Pump Screen and Pickup Tube

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

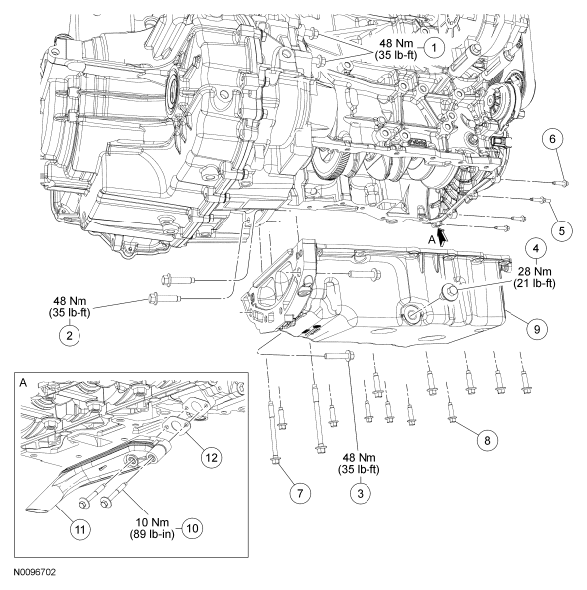

Fig 1: Oil Pan, Oil Pump Screen & Pickup Tube Replacement Components With Torque Specifications
G06261947Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 W500121 RH engine-to-bellhousing bolts
2 W500235 Bellhousing-to-oil pan bolt (2 required)
3 W500121 Oil pan-to-bellhousing bolt (2 required)
4 6730 Oil pan drain plug
5 940604 Engine front cover-to-oil pan stud bolt
6 W500215 Engine front cover-to-oil pan bolt (3 required)
7 W706284 Oil pan bolt (2 required)
8 W500224 Oil pan bolt (11 required)
9 6675 Oil pan
10 W706282 Oil pump screen and pickup tube bolt (2 required)
11 6622 Oil pump screen and pickup tube
12 6625 Oil pump screen and pickup tube gasket
