Econoline, Excursion & F250/350 Super Duty (2WD)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2001 Mercury Villager, 2001 Mercury Mountaineer, 2001 Lincoln Navigator, 2001 Ford Windstar, and 2001 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure camber and caster to determine adjustment required. Record specifications for use in selection of camber/caster adjusters. To adjust, raise and support vehicle. Remove wheel assembly. Loosen pinch bolt at top of upper ball joint and pry adjuster out of axle.
  2. Install appropriate camber/caster adjuster and rotate to desired adjustment. Camber/caster adjusters are available in 0.5, 1.0 and 1.5 degree increments. See Fig 1. Tighten pinch bolt to specification. See TORQUE SPECIFICATIONS . Install wheel assembly. Check wheel alignment to verify correct adjustment.

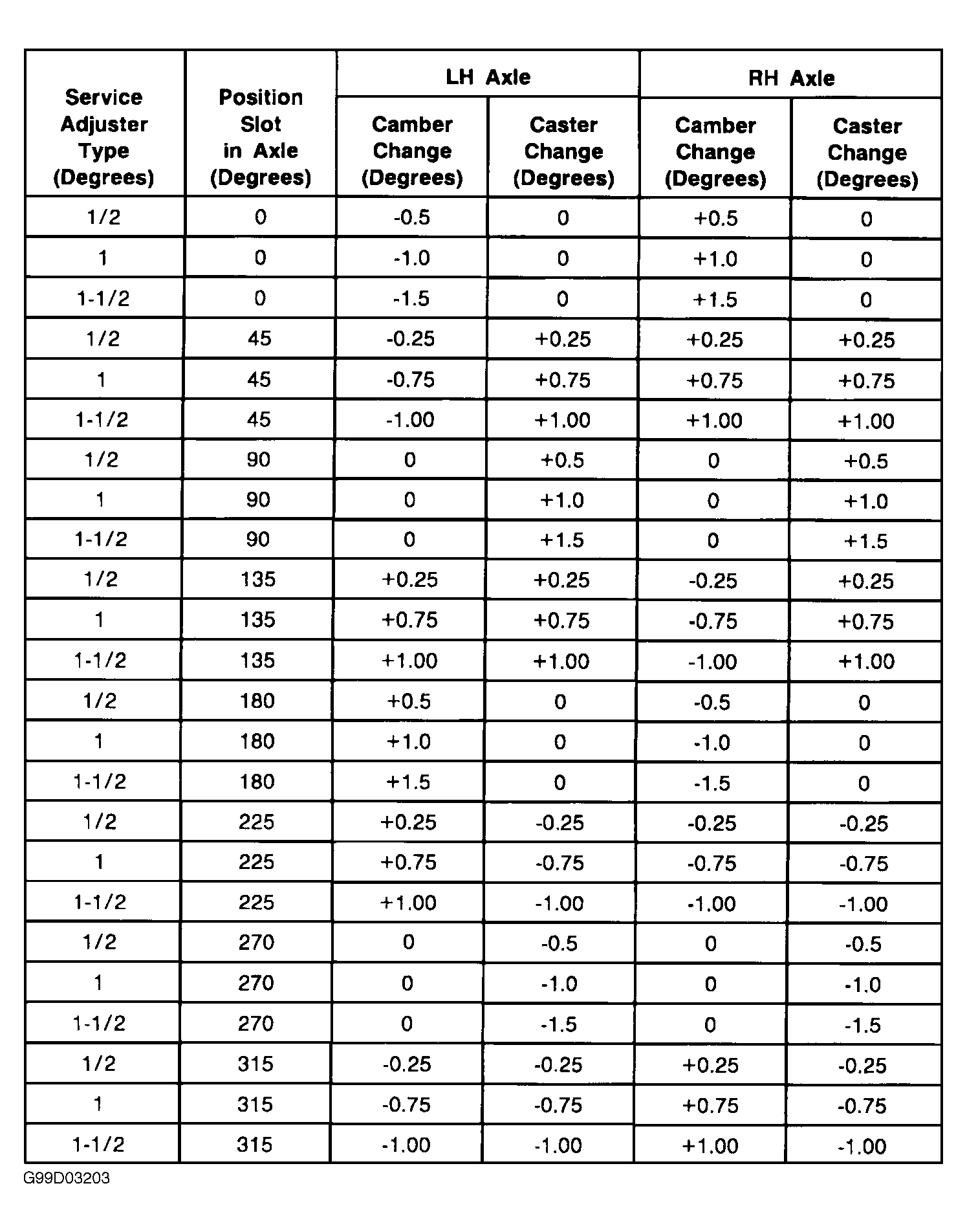

Fig 1: Camber/Caster Adjuster Alignment Chart (Econoline, Excursion & F250/350 Super Duty 2WD)
G99D03203Courtesy of FORD MOTOR CO.
