Removal And Installation
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

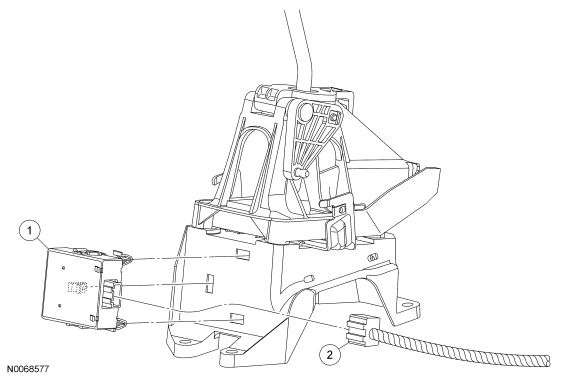

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H473 | 4X4 control module |
| 2 | - | Electrical connector (part of 14405) |
- Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
- Disconnect the electrical connector.
- Lift upward on the module to release the fasteners from the shifter base. Remove the 4X4 control module.
- To install, reverse the removal procedure.
