Removal And Installation

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The transmission range (TR) sensor is part of the transmission selector lever assembly.

All vehicles

  1. Place the selector lever in the (D) position.
  2. Fig 1: Identifying Drive (D) Position
    GF0042416Courtesy of FORD MOTOR CO.
  3. Gently pry up to remove the upper selector lever trim ring.
  4. Fig 2: Identifying Shift Lever Trim Ring
    GF0042423Courtesy of FORD MOTOR CO.
  5. Lift the center console lid and remove the center console compartment tray.
  6. Fig 3: Identifying Center Console Compartment Tray
    GF0042401Courtesy of FORD MOTOR CO.
  7. Remove the top finish panel from the center console.
  8. Fig 4: Identifying Top Finish Panel
    GF0042424Courtesy of FORD MOTOR CO.
  9. Disconnect the power outlet electrical connector.
  10. Fig 5: Identifying Connector
    GF0042425Courtesy of FORD MOTOR CO.
  11. Remove the selector lever cable from the selector lever assembly.
    1. Disconnect the selector lever cable end from the selector lever.
    2. Remove the selector lever cable from the bracket.
  12. Fig 6: Identifying Selector Lever Cable End And Bracket
    GF0042403Courtesy of FORD MOTOR CO.
  13. Disconnect the transmission range (TR) sensor electrical connector and disconnect the wiring harness fastener from the selector lever.
  14. Fig 7: Identifying Transmission Range (TR) Connector
    GF0042430Courtesy of FORD MOTOR CO.
  15. Disconnect the wiring harness retainers from the selector lever.
  16. Fig 8: Identifying Wiring Harness Retainers
    GF0042407Courtesy of FORD MOTOR CO.
  17. Disconnect the electrical connectors from the selector lever.
    1. Disconnect the selector lever electrical connector.
    2. Remove the vehicle harness connector from the selector lever.
  18. Fig 9: Identifying Connectors
    GF0042408Courtesy of FORD MOTOR CO.

    All wheel drive (AWD) vehicles

  19. Pull the all wheel drive (AWD) module straight back and remove it from the back of the selector lever.
  20. Fig 10: Identifying All Wheel Drive (AWD) Module
    GF0042409Courtesy of FORD MOTOR CO.

    All vehicles

  21. Remove the 2 screws from the center console.
  22. Fig 11: Identifying Screws
    GF0042410Courtesy of FORD MOTOR CO.

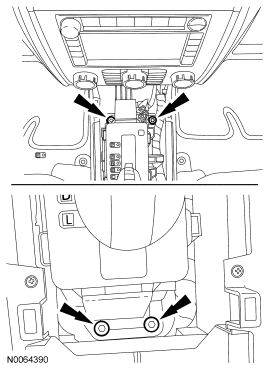

  23. Remove the 4 bolts and remove the selector lever assembly.
    • To install, tighten to 25 Nm (18 lb-ft).
  24. Fig 12: Identifying Bolts
    GF0042431Courtesy of FORD MOTOR CO.
  25. To install, reverse the removal procedure. Adjust the selector lever cable. Refer to Selector Lever Cable Adjustment .
