Removal (2WD Models)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2003 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove wheel.
  2. Remove anchor plate and caliper assembly, and position aside. See DISC BRAKE CALIPERS & PADS .
  3. Remove grease cap, cotter pin, nut, washer and outer bearing. Remove rotor. Remove inner bearing and grease seal. See Fig 1 and Fig 2 .

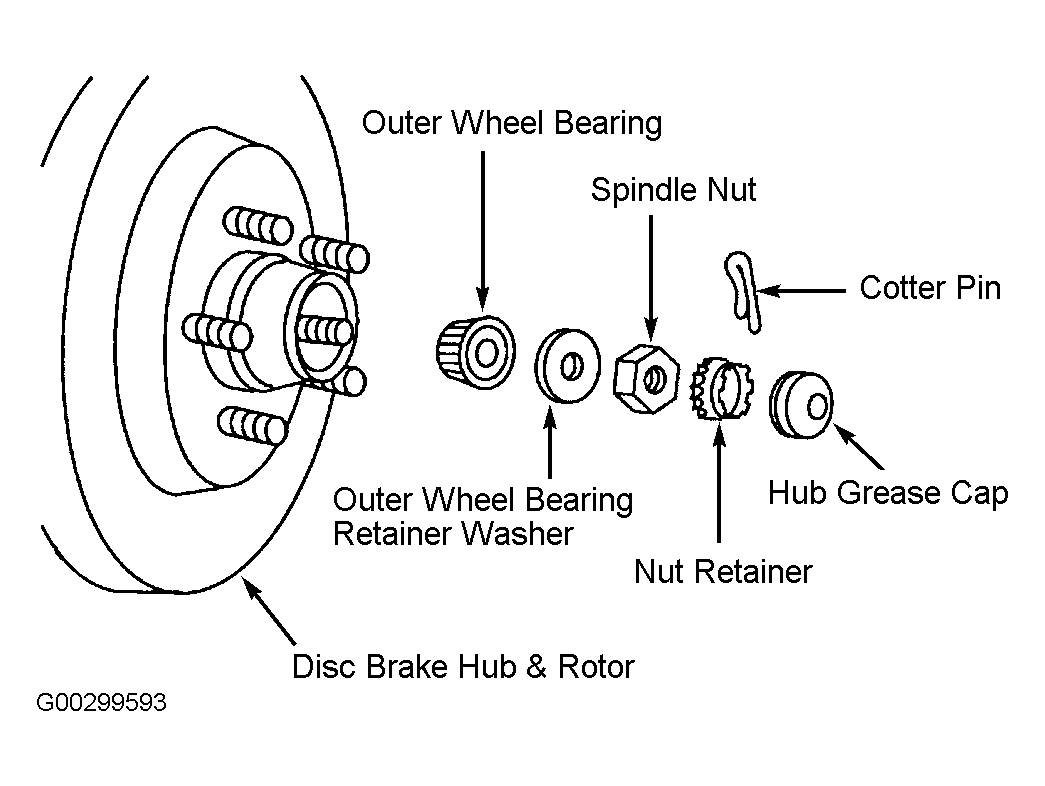

Fig 1: Removing Front Hub & Rotor
G00299593Courtesy of FORD MOTOR CO.

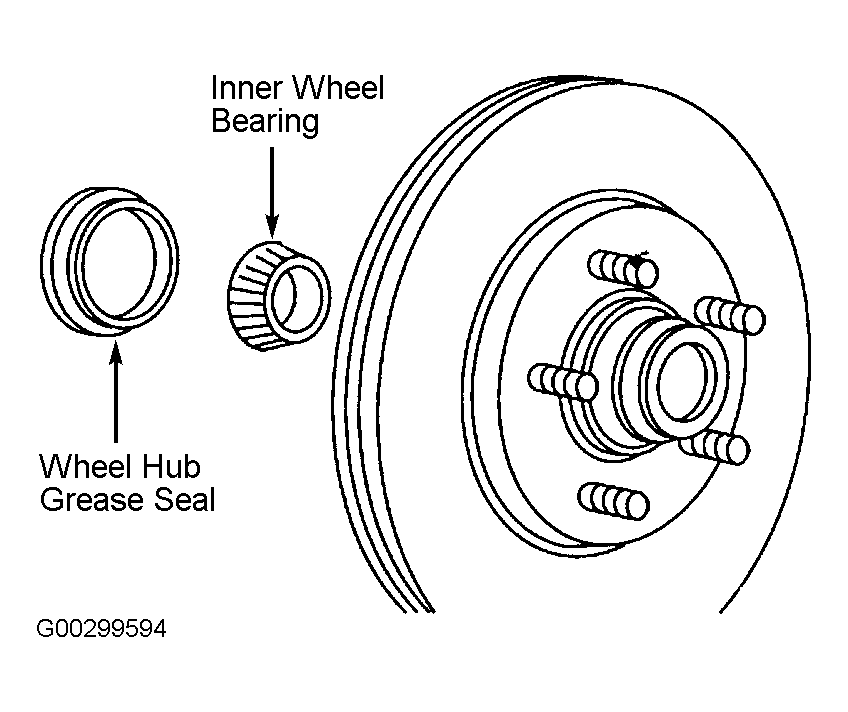

Fig 2: Removing Front Hub & Rotor Inner Bearing & Seal
G00299594Courtesy of FORD MOTOR CO.
