Removal & Installation

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Brake fluid level warning switch is internal component of reservoir.

Use a suitable suction device to drain the brake master cylinder reservoir.
Disconnect the brake master cylinder fluid level warning switch. See Figure.
Remove the brake master cylinder reservoir. For Tokico type, carefully pry up on the brake master cylinder reservoir to remove. See Fig 1. For Bosch type, remove the roll pins, then carefully pry up on the brake master cylinder reservoir to remove. See Fig 2.
To install, reverse removal procedure. Lubricate the 2 grommets with clean brake fluid. Press reservoir into the grommets until it snaps.
Bleed as necessary. See BLEEDING BRAKE SYSTEM .

Fig 1: Removing Master Cylinder Reservoir (Tokico)

Courtesy of FORD MOTOR CO.

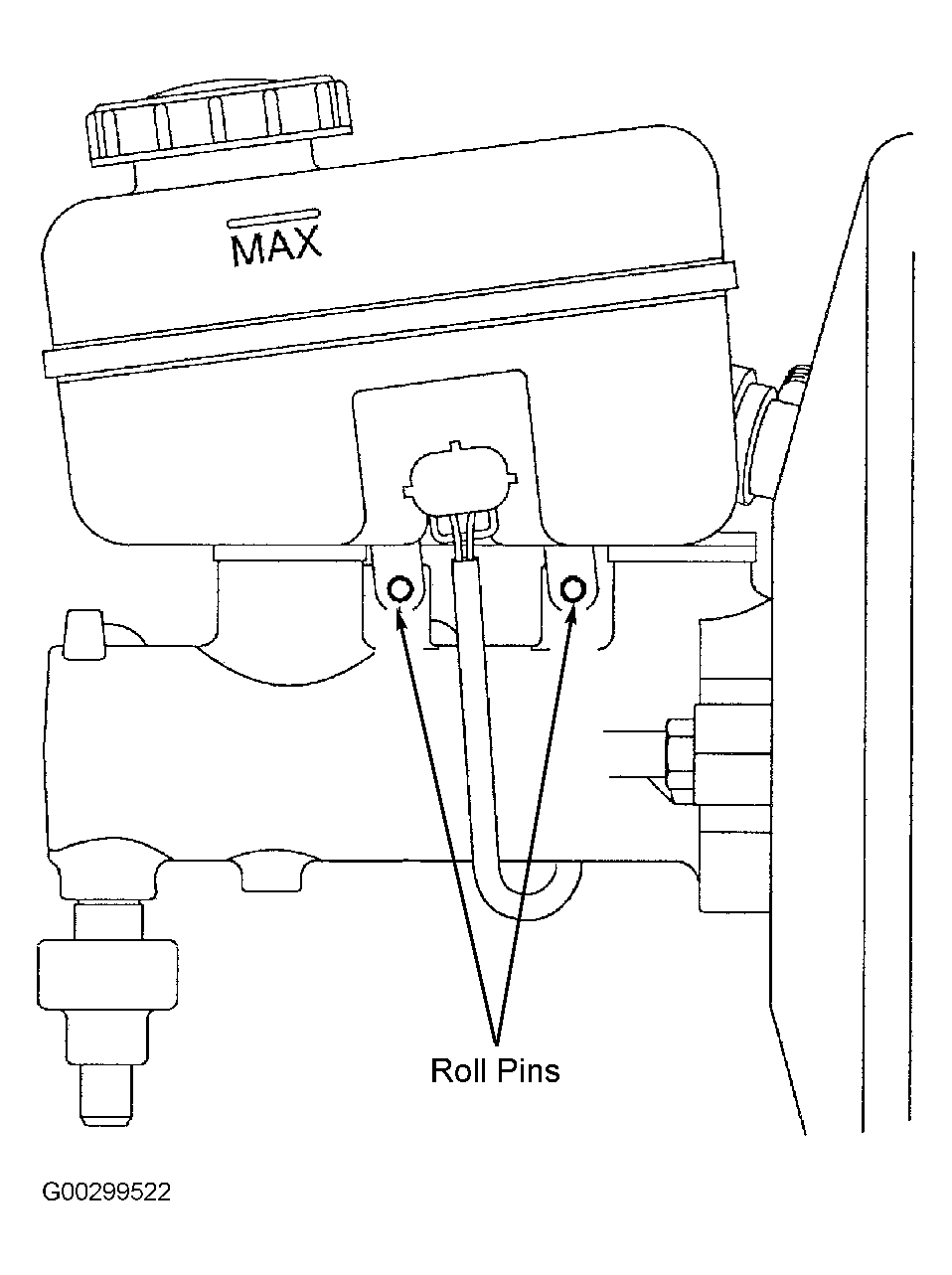

Fig 2: Identifying Master Cylinder Reservoir Roll Pins (Bosch)

Courtesy of FORD MOTOR CO.
