Fuel Tank and Filler Pipe - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

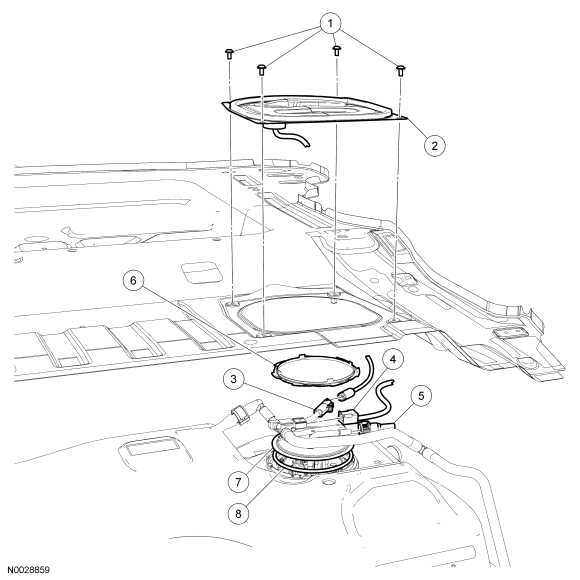

| Item |
Part Number |
Description |
| 1 |
- |
Fuel pump module access cover screws (4 required) |
| 2 |
- |
Fuel pump module access cover |
| 3 |
14A464 |
Fuel pump module electrical connector |
| 4 |
14A464 |
Fuel tank pressure sensor electrical connector |
| 5 |
9289A |
Fuel supply tube quick connect coupling |
| 6 |
9A307 |
Fuel pump module lock ring |
| 7 |
9H307 |
Fuel pump module |
| 8 |
9276 |
Fuel pump module O-ring seal |
Courtesy of FORD MOTOR CO.

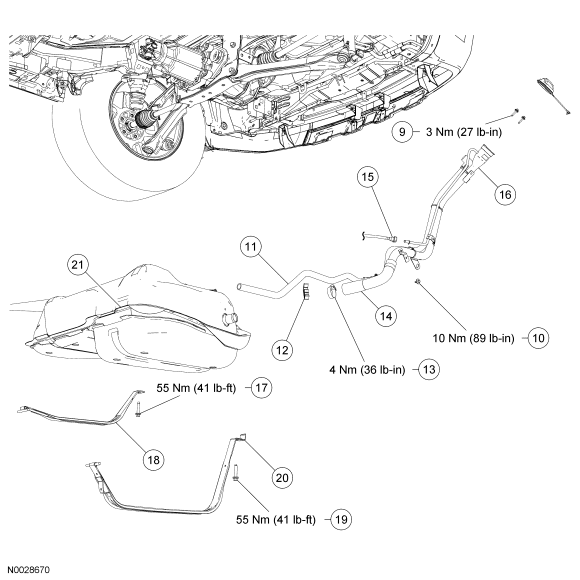

| Item |
Part Number |
Description |
| 9 |
W701676 |
Fuel filler pipe mounting screw (2 required) |
| 10 |
W503921 |
Fuel filler pipe mounting screw |
| 11 |
9034 |
Fuel vapor dust box hose |
| 12 |
9034A |
Retainer clip |
| 13 |
9034A |
Fuel hose clamp |
| 14 |
9034A |
Fuel filler pipe hose |
| 15 |
9D668A |
Fuel vapor quick connect coupling |
| 16 |
9034 |
Fuel tank filler pipe assembly |
| 17 |
W707111 |
Fuel tank strap bolt |
| 18 |
9N041 |
Fuel tank strap |
| 19 |
W707111 |
Fuel tank strap bolt |
| 20 |
9092 |
Fuel tank strap |
| 21 |
9K007 |
Fuel tank |
- For additional information, refer to the following procedures.
