Motor Electronics Cooling System
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
The vehicle uses a pump driven cooling system, referred to as the motor electronics cooling system (MECS), to transfer heat generated by the electronically controlled continuously variable transaxle (eCVT) and the hybrid electric vehicle (HEV) DC/DC converter to the atmosphere. The system uses a coolant-to-air radiator design.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8A080 | Degas bottle |
| 2 | 8B274 | Coolant outlet hose |
| 3 | 8A567 | Degas bottle-to-pump hose |
| 4 | 8C419 | Motor electronics (M/E) coolant pump |
| 5 | 15179 | M/E coolant pump-to-transaxle hose |
| 6 | 8B273 | Transaxle-to-radiator hose |
| 7 | 8005 | M/E cooler |

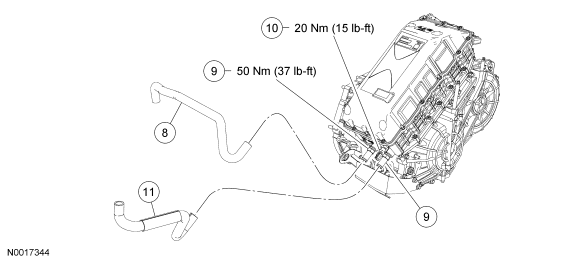

| Item | Part Number | Description |
|---|---|---|
| 8 | 15179 | Motor electronics (M/E) coolant pump-to-transaxle hose |
| 9 | 7D723 | Coolant tubes (inlet/outlet) |
| 10 | 6G004 | M/E coolant temperature sensor |
| 11 | 8B273 | Transaxle-to-radiator hose |
