Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup Heritage, 2004 Ford Pickup, 2003 Lincoln Blackwood, 2003 Ford Pickup, and 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake master cylinder. See MASTER CYLINDER .
  2. Compress the clamp. Disconnect the power brake booster hose.

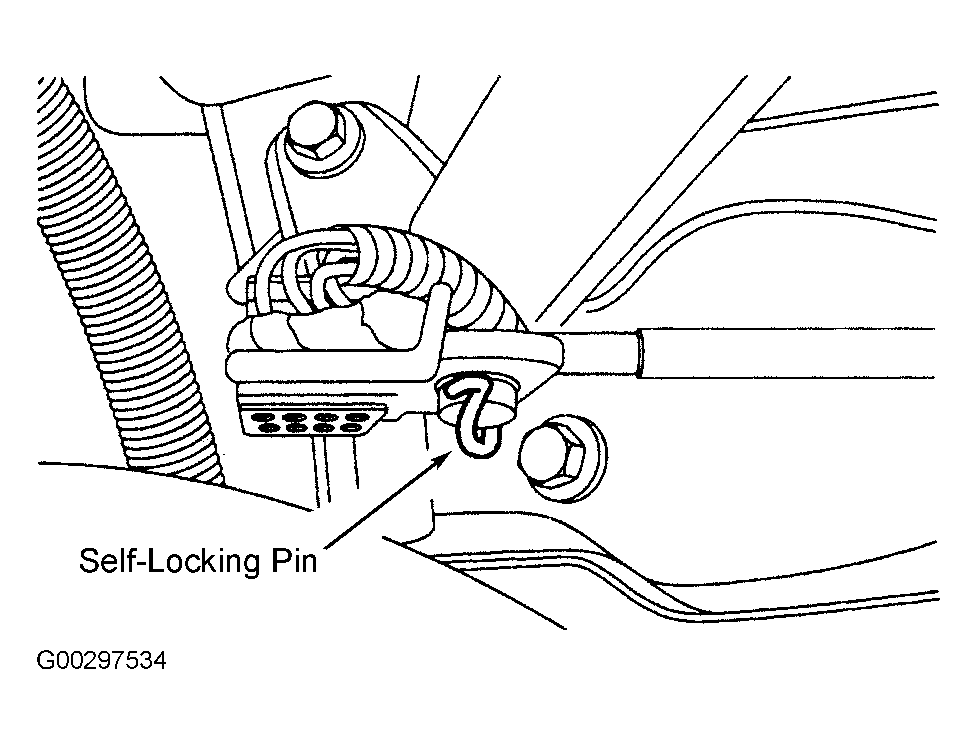

  3. Remove the stoplight switch self-locking pin. See Figure.

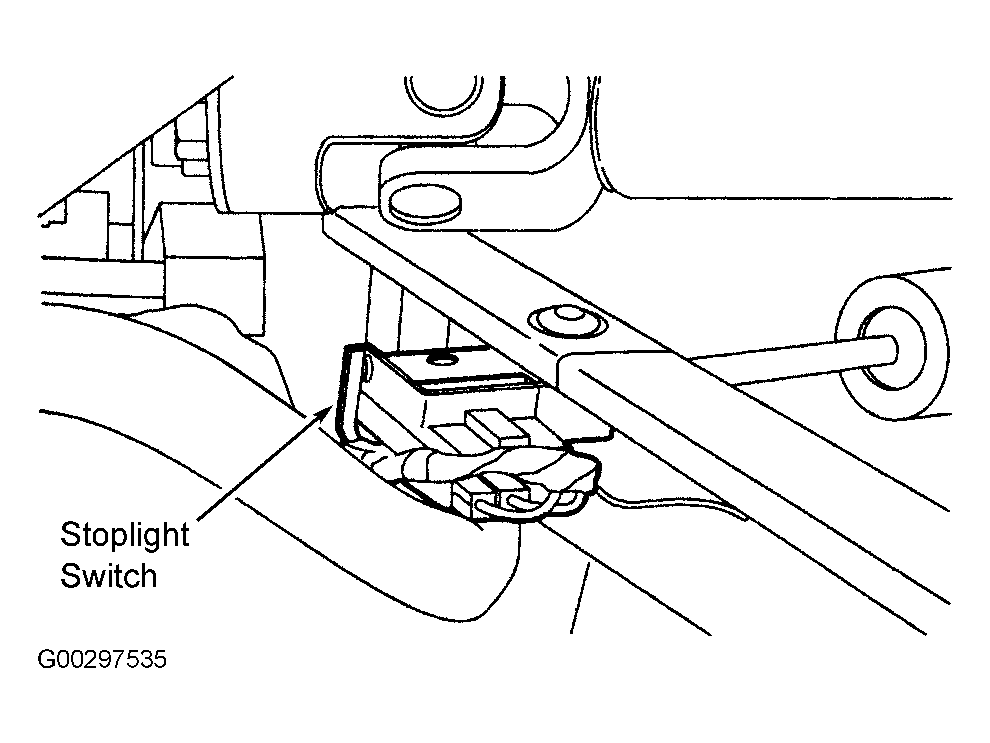

  4. Slide the stoplight switch and booster push rod off the brake pedal pin. See Figure.

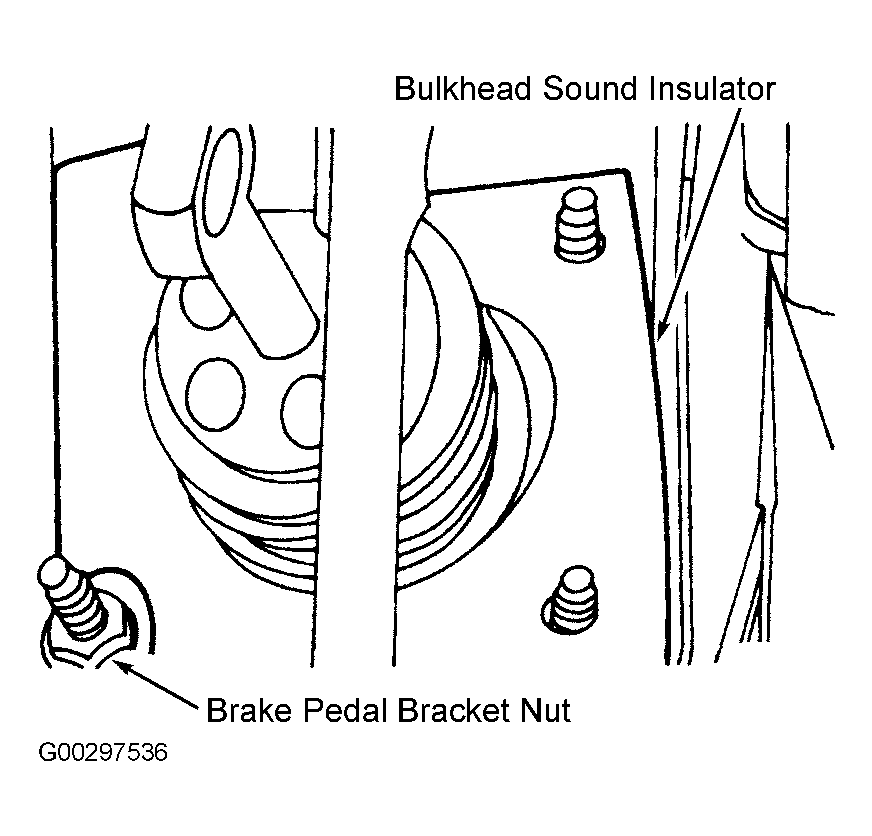

  5. Remove the bulkhead sound insulator. See Figure.
  6. Remove the power brake booster nuts and remove booster. See Figure.
  7. To install, reverse removal procedure.
