Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

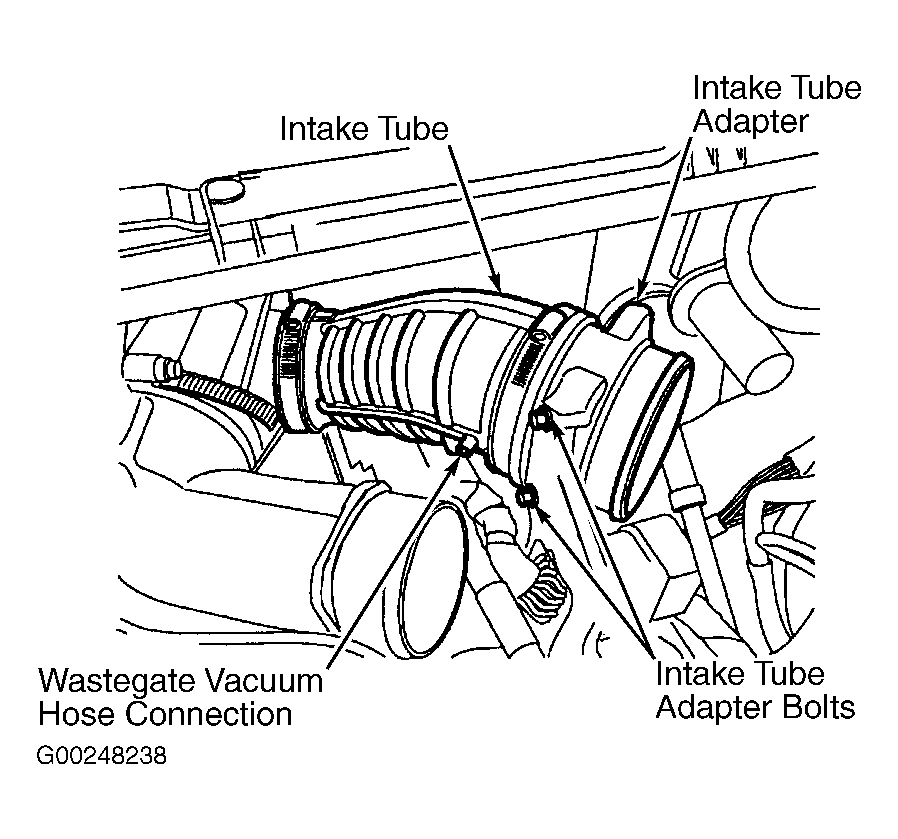

Loosen air cleaner outlet tube clamps and remove air cleaner outlet tube. Loosen intake tube clamps, remove intake tube adapter bolts, lift intake tube and adapter and disconnect wastegate pressure hose. See Fig 1. Loosen crankcase breather hose clamp and remove hose from crankcase breather assembly. Remove air intake tube and adapter.
