Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. On vehicles with dual batteries, see DUAL BATTERIES under MISCELLANEOUS. Remove air cleaner, inlet duct and resonator. See AIR INTAKE RESONATOR .
Label and disconnect electrical connectors under hood. See Fig 1 .
Label and disconnect intake heater relay switch leads. Remove retaining nuts and remove relay. See Fig 2 . To install, reverse removal procedure.

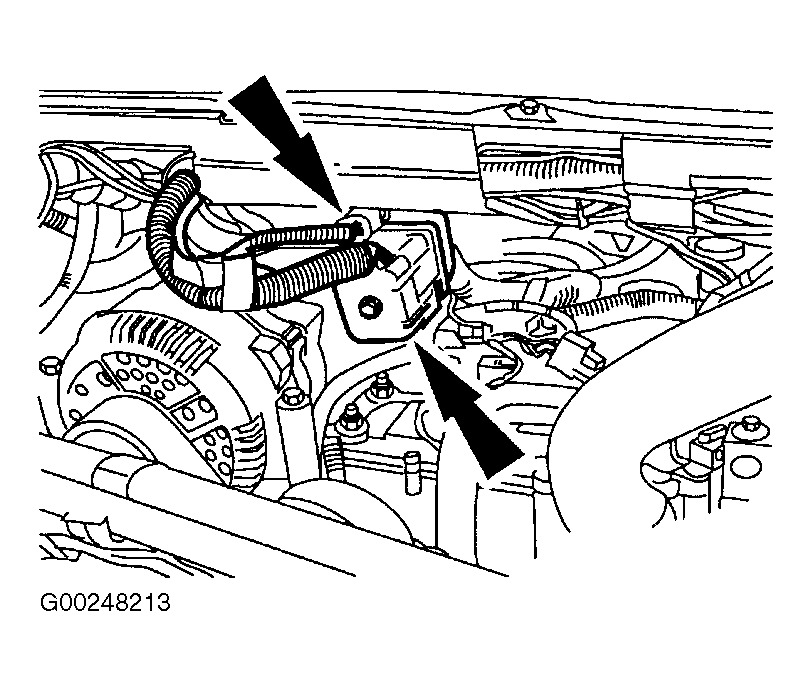

Fig 1: Disconnecting & Connecting Underhood Electrical Connectors

Courtesy of FORD MOTOR CO.

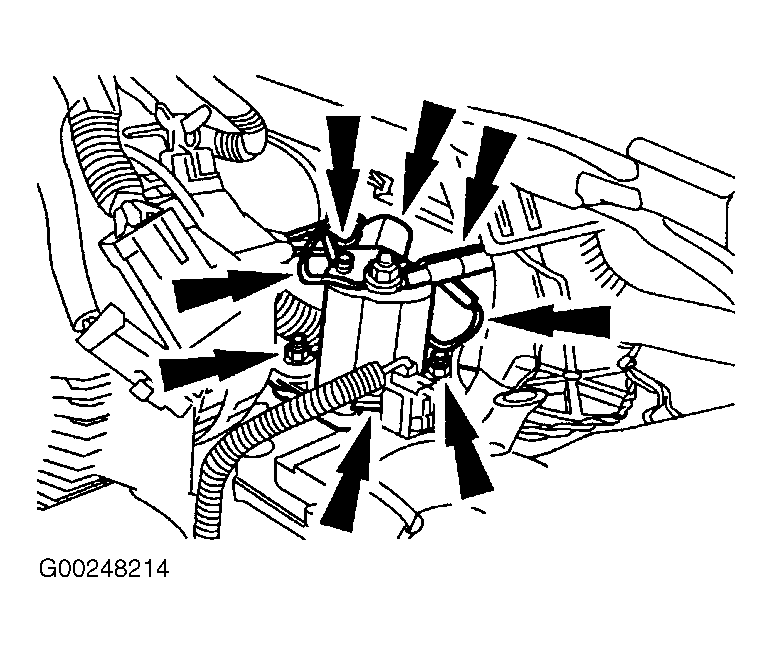

Fig 2: Removing & Installing Intake Heater Relay Switch

Courtesy of FORD MOTOR CO.
