Parking Mechanism (4R100): Removal
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Lincoln Navigator, 2003 Lincoln Blackwood, 2003 Ford RV Cutaway, 2003 Ford Pickup, and 2003 Ford F550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

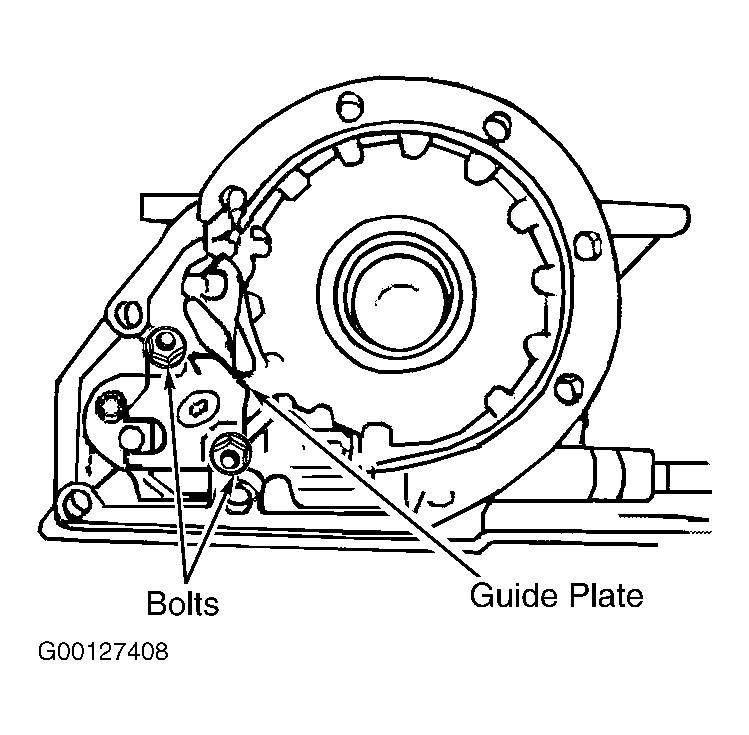

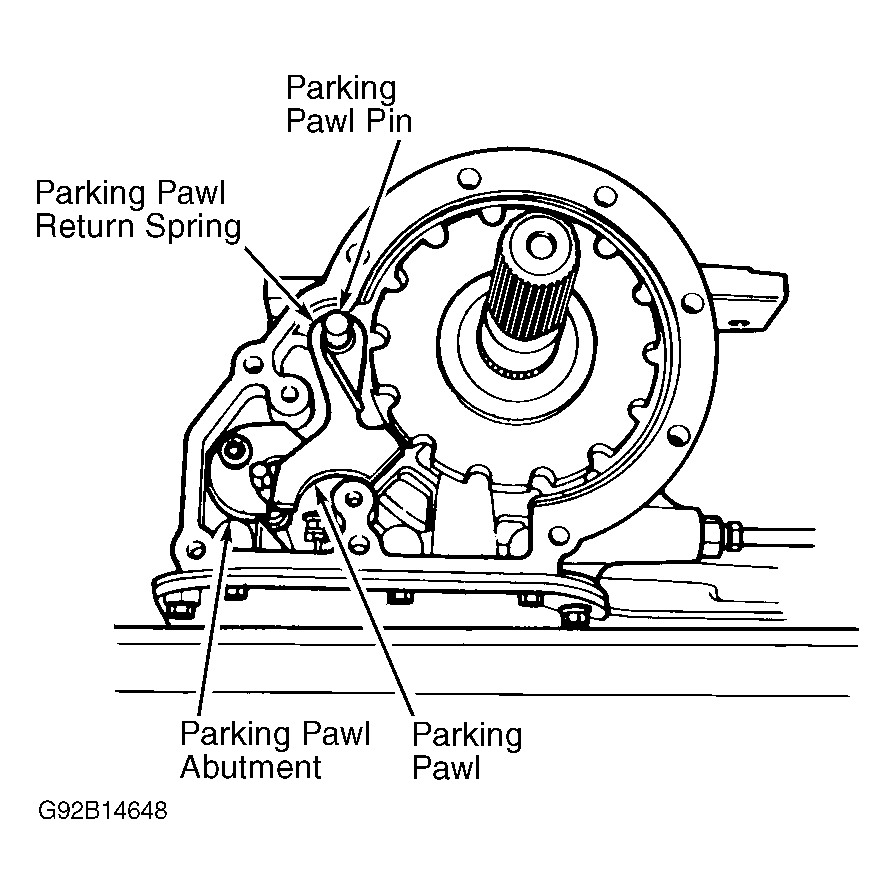

Remove extension housing. See EXTENSION HOUSING GASKET . Remove parking rod guide plate retaining bolts. See Fig 1. Remove parking pawl return spring, parking pawl and parking pawl shaft from case. See Fig 2.
