Extension Housing Seal (4R70W): Removal
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Lincoln Navigator, 2003 Lincoln Blackwood, 2003 Ford RV Cutaway, 2003 Ford Pickup, and 2003 Ford F550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the transmission fluid. See DRAINING & REFILLING under LUBRICATION. Mark the driveshaft flange and the rear companion flange for correct alignment during assembly. See Figure.
- Remove the 4 driveshaft bolts. Separate the driveshaft from the transmission. Use a high-lift transmission jack to support the transmission. Remove the 2 transmission mount nuts. See Fig 1.
- Remove the transmission crossmember bolts. See Fig 2. Remove the transmission crossmember.

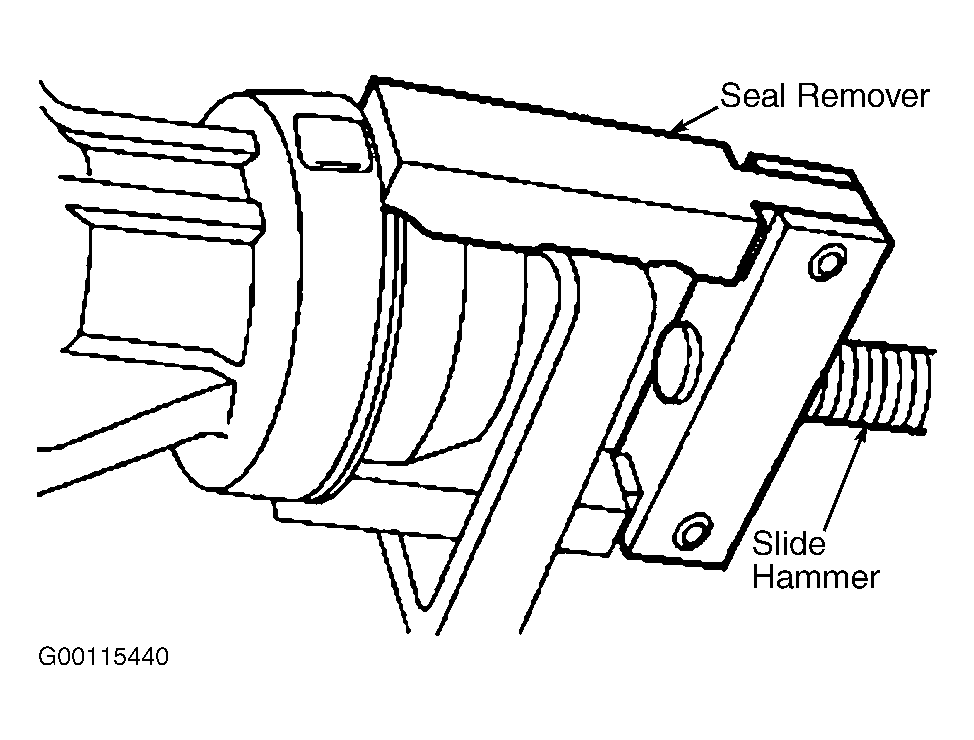

- Lower the transmission to access the extension housing seal. Using the Slide Hammer (100-001) and Seal Remover (307-048), remove the extension housing seal. See Fig 3.
