Glass, Frames and Mechanisms - Exploded View, Rear Door
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

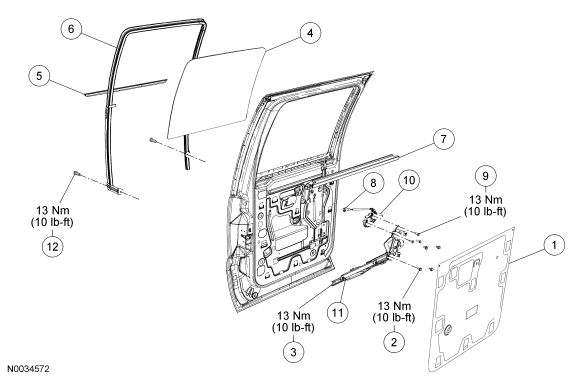

NOTE:
LH side shown, RH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2627459 LH/ 2627458 RH | Water shield |
| 2 | - | Rear door window regulator bolt |
| 3 | N620480-S301 | Window glass clamp nut (2 required) |
| 4 | 25713 LH/ 25712 RH | Rear door window glass |
| 5 | 25597/25596 | Exterior beltline weatherstrip |
| 6 | 25767 LH/ 25766 RH | Rear door window glass run |
| 7 | 25861/25860 | Interior beltline weatherstrip |
| 8 | 14A005 | Electrical connector |
| 9 | - | Rear door window motor bolt |
| 10 | 23394 LH/ 23395 RH | Rear door window motor |
| 11 | 27009 LH/ 27008 RH | Rear door window regulator |
| 12 | W704652-S426 | Bolt |

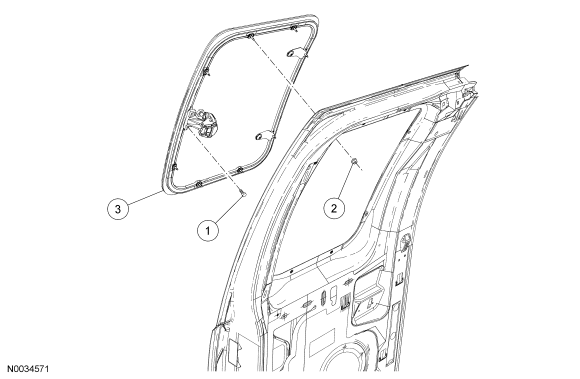

NOTE:
LH side shown, RH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | N607051-S61 | Screw (2 required) |
| 2 | N621901-S2 | Nut (8 required) |
| 3 | 290701 LH/ 29700 RH | Rear door window glass assembly |
- For additional information, refer to the procedures in this article.
