Engine Support Insulators: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Engine Support Bar, Heavy Duty | 303-F070 | |
| Support Hook | 303-F071 | |
| Engine Support Bracket | 303-639 |

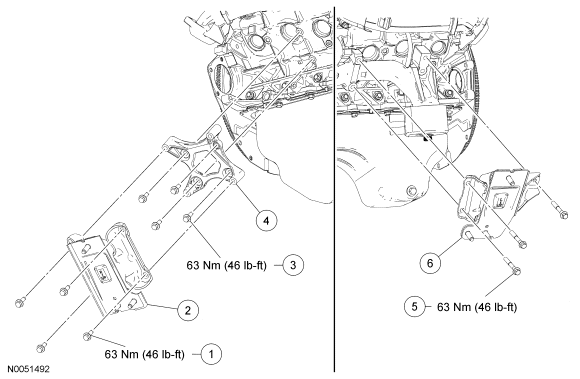

| Item | Part Number | Description |
|---|---|---|
| 1 | W707251 | RH engine support insulator bolt (4 required) |
| 2 | 6B038 | RH engine support |
| 3 | N808859 | RH engine support insulator bracket bolt (4 required) |
| 4 | 6B045 | RH engine support insulator bracket |
| 5 | W708103 | LH engine support insulator bolt (3 required) |
| 6 | 6B032 | LH engine support insulator |
