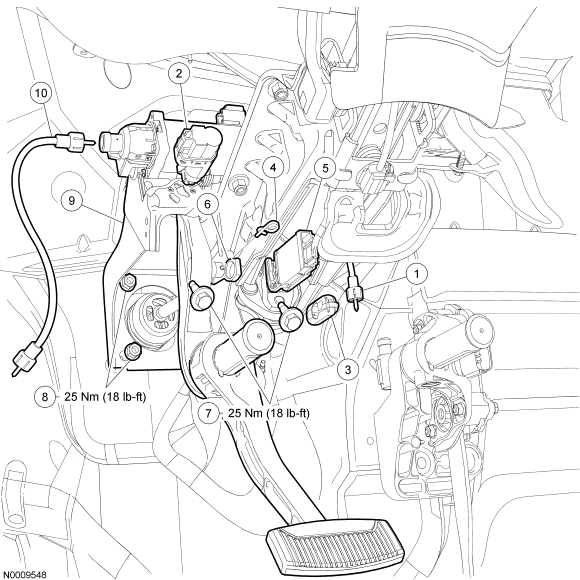

Brake Pedal and Bracket: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Adjustable accelerator pedal cable |
| 2 | 9C872 | Speed control deactivator switch |
| 3 | 2475 | Redundant self-locking pin cover |
| 4 | 380399 | Self-locking pin |
| 5 | 13480 | Stoplamp switch |
| 6 | - | Brake booster rod (part of 2005) |
| 7 | W505433 | Brake pedal and bracket assembly bolt (2 required) |
| 8 | N620481 | Brake booster nuts (4 required) |
| 9 | 2450 | Brake pedal assembly |
| 10 | - | Brake pedal motor cable |
