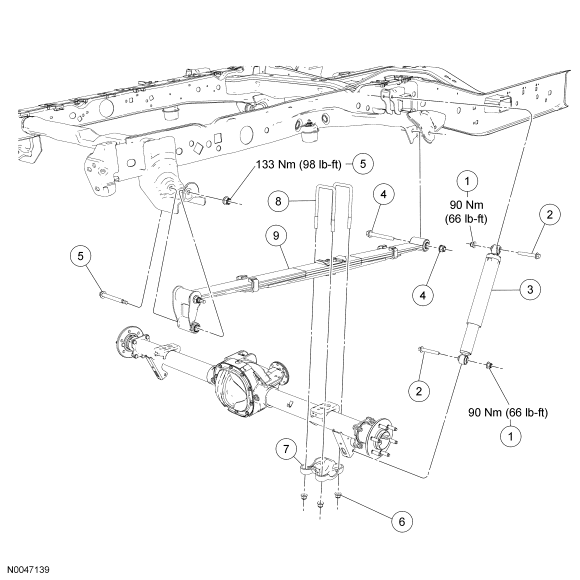

Rear Suspension - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520214 | Shock absorber nuts (2 required) |
| 2 | W506545 | Shock absorber bolts (2 required) |
| 3 | 8125 | Shock absorber |
| 4 | W709627/ W708988 | Spring-to-frame bolt and nut |
| 5 | W709626/ W520215 | Spring shackle-to-frame bolt and nut |
| 6 | W520215 | U-bolt nut (4 required) |
| 7 | 5798 | U-bolt plate |
| 8 | 5705 | U-bolt (2 required) |
| 9 | 5560 | Spring |
- For additional information, refer to the procedures in this article.
