Positive Crankcase Ventilation (PCV) Heater Element - 5.4L (3V): Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

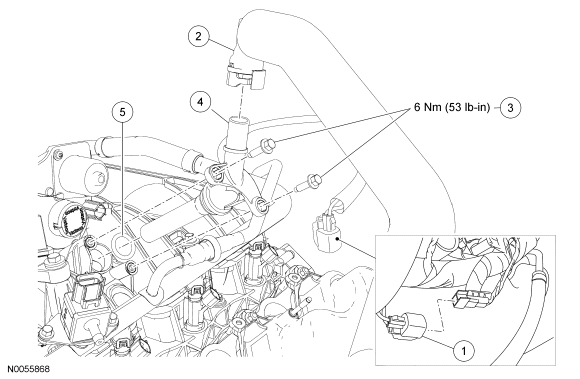

Fig 1: Identifying Positive Crankcase Ventilation (PCV) Heater Element With Specifications (5.4L (3V))
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Positive crankcase ventilation (PCV) heater element electrical connector |
| 2 | 6K817 | PCV heater element tube quick-release fitting |
| 3 | W500204 | PCV heater element bolts (2 required) |
| 4 | 9F695 | PCV heater element |
| 5 | 9229 | PCV heater element O-ring seal |
