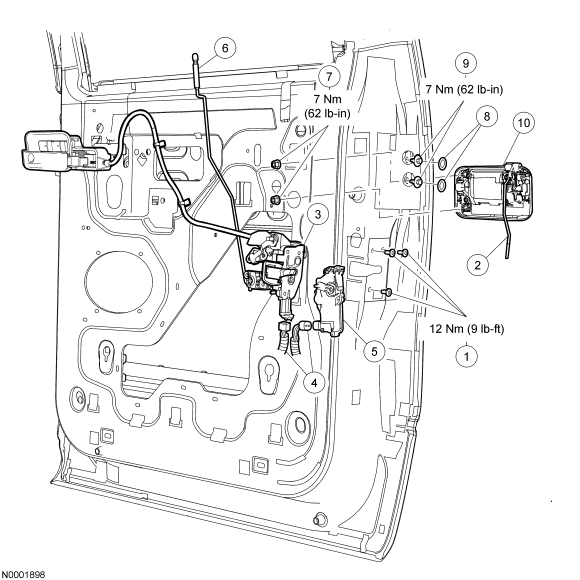

Rear Door Handles, Locks and Latches - Exploded View, Super Crew
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N811471 | Rear door latch bolts (3 required) |
| 2 | 1622152/ 1622153 | Exterior rear door handle actuating rod (RH/LH) |
| 3 | 1626412/ 1626413 | Rear door latch (RH/LH) |
| 4 | - | Rear door latch electrical connectors (part of wiring harness 14A005) |
| 5 | 78218A42/ 78218A43 | Rear door lock actuator (RH/LH) |
| 6 | 1626460/ 1626461 | Rear door lock rod (RH/LH) |
| 7 | N620480-S438 | Exterior rear door handle nuts (2 required) |
| 8 | W709073 | Exterior rear door handle seals (2 required) |
| 9 | W709562-S | Exterior rear door handle bolts (2 required) |
| 10 | 1626604/ 1626605 | Exterior rear door handle (RH/LH) |
- For additional information, refer to the procedures in this article.
