Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the rear door trim panel. For additional information, refer to REMOVAL AND INSTALLATION .
Remove the access hole plug.

NOTE: If the door window regulator is inoperative, remove it. For additional information, refer to WINDOW REGULATOR MOTOR .

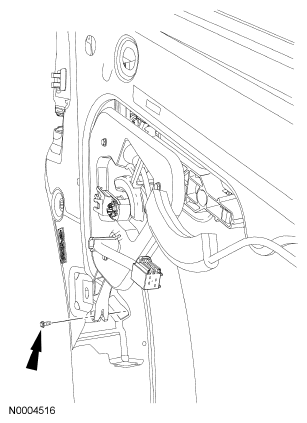

Fig 1: Loosening Glass Clamp Bolt

Courtesy of FORD MOTOR CO.

Lower the window until the glass clamp bolt is accessible through the access hole plug, then loosen the glass clamp bolt.
- To install, tighten to 9 N.m (80 lb-in).
Tape the window in position, then lower the window regulator downward until it reaches the stops at the bottom of the regulator tracks.

Freestyle only

Lower the window glass into the door.
Remove the top run.

Fig 2: Locating Top Run
Courtesy of FORD MOTOR CO.
Remove the rear fixed window glass.
- Remove the bolt and the screw.
Fig 3: Locating Rear Fixed Window Glass
Courtesy of FORD MOTOR CO.

Montego, Five Hundred

Lower the window glass into the door.
Remove the scrivet from the rear door glass top run.

Fig 4: Locating Scrivet From Rear Door Glass Top Run
Courtesy of FORD MOTOR CO.
Remove the bolt from the rear door glass top run.

Fig 5: Locating Bolt From Rear Door Glass Top Run
Courtesy of FORD MOTOR CO.
Remove the top run and bracket.

Fig 6: Locating Top Run & Bracket
Courtesy of FORD MOTOR CO.

All vehicles

Remove the rear window glass.
To install, reverse the removal procedure.
