Hydraulic Booster to Steering Gear Pressure Line: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

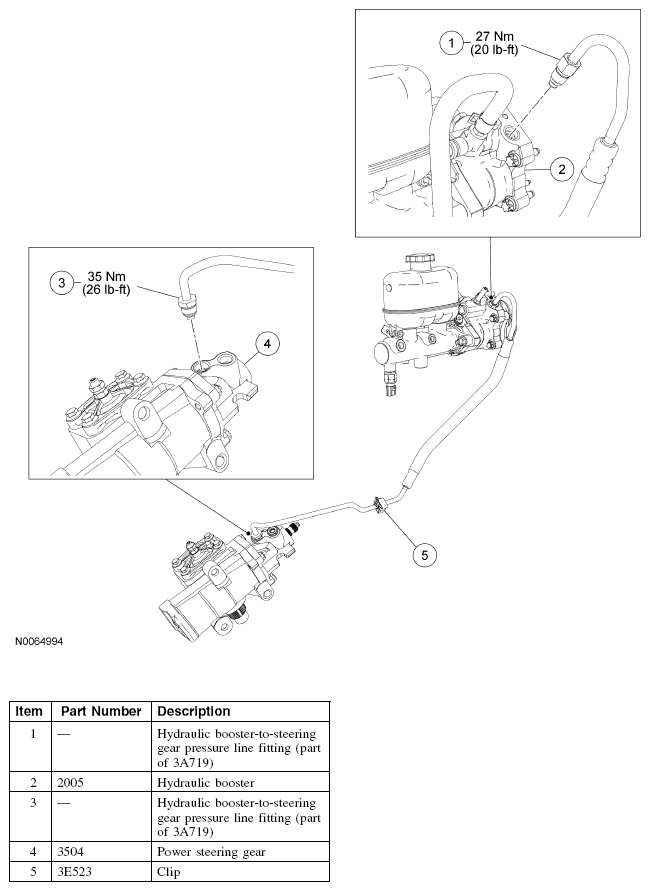

Fig 1: Hydraulic Booster To Steering Gear Pressure Line Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
