Extension Housing Seal: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATIONS

G04649621Courtesy of FORD MOTOR CO.
 Slide Hammer
100-001 (T50T-100-A)
G04649622Courtesy of FORD MOTOR CO.
 Installer, Output Shaft Seal (RWD)
307-462
G04649623Courtesy of FORD MOTOR CO.
 Installer, Transmission Extension Housing Seal (FWD)
307-453
G04649624Courtesy of FORD MOTOR CO.
 Remover, Torque Converter Fluid Seal
307-309 (T94P-77001-A)
G04649625Courtesy of FORD MOTOR CO.
 Remover, Transmission Extension Housing Seal (used with 307-309)
307-454
G04649626Courtesy of FORD MOTOR CO.
 Socket, Output Shaft Locknut
307-458

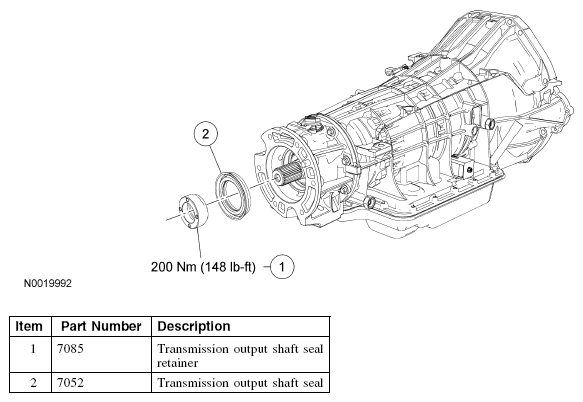

Fig 1: Identifying Extension Housing Seal
G04649627Courtesy of FORD MOTOR CO.
