Removal & Installation
WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

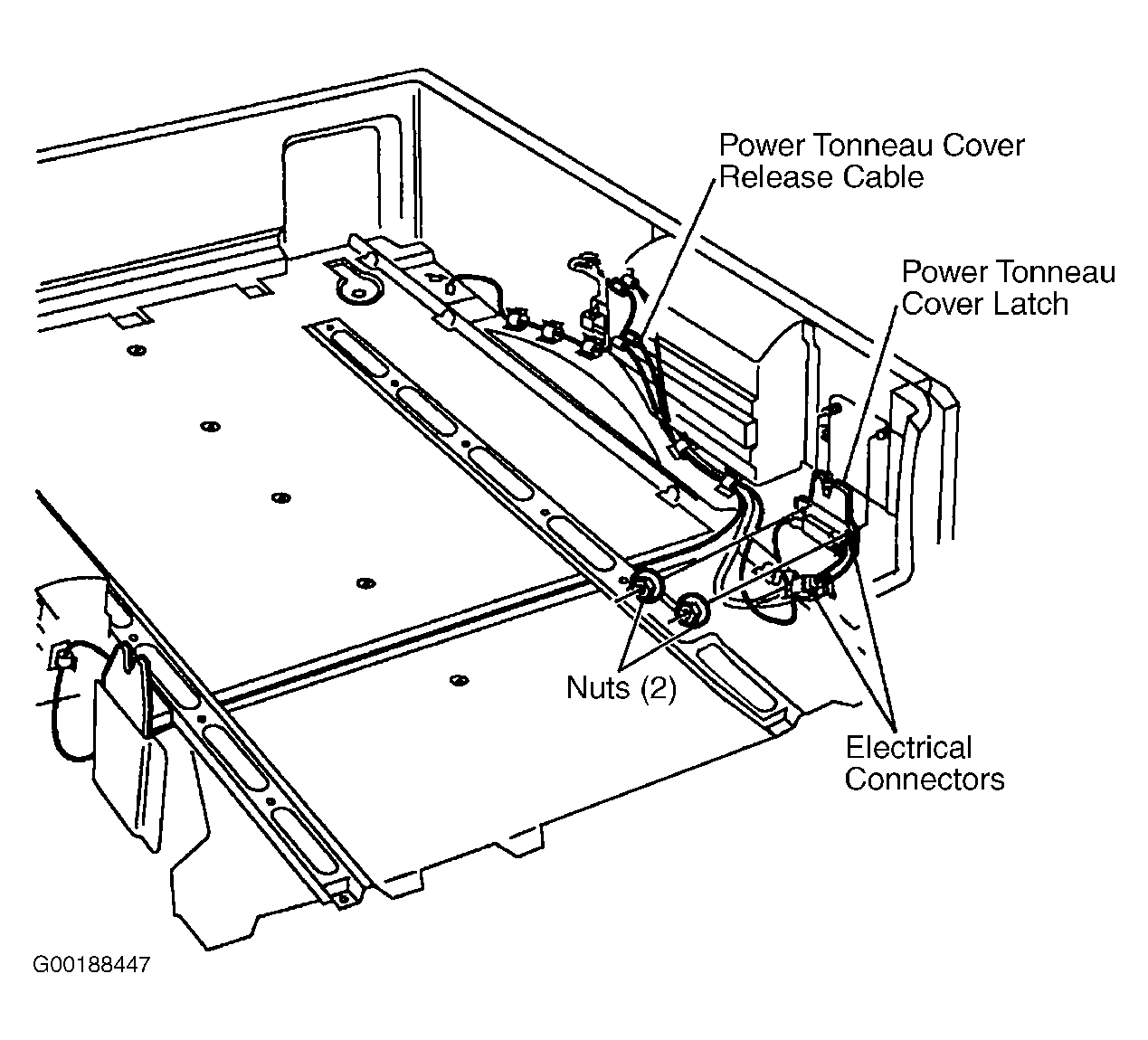

Open power tonneau cover fully. Remove pickup bed trim panels. Remove pickup bed liner. Remove the power tonneau cover manual release cable. Disconnect and remove the 2 electrical connectors from power tonneau cover latch assembly. Remove 2 nuts from power tonneau cover latch assembly and remove latch. See Fig 1. To install, reverse removal procedure. See TORQUE SPECIFICATIONS .
