Pinpoint Test G: The Defrost System Does Not Shut Off Automatically

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.
  1. G1 CHECK THE REAR WINDOW DEFROST SWITCH CIRCUIT FOR A SHORT TO GROUND
    • Key in OFF position.
    • Disconnect: DDM C501c.
    • Measure the resistance between the DDM C501c-23, circuit 1010 (DB/OG), harness side and ground.
      Fig 1: Measuring Resistance Between DDM C501C-23, Circuit 1010 (DB/OG), Harness Side And Ground
      G04586054Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?

    Yes  : GO to  G3.

    No  : GO to G2.

  2. G2 CHECK HEATED CIRCUIT 1010 (DB/OG) FOR A SHORT TO GROUND
    • Disconnect: Rear Window Defrost Switch C241.
    • Measure the resistance between the DDM C501c-23, circuit 1010 (DB/OG), harness side and ground.
      Fig 2: Measuring Resistance Between DDM C501C-23, Circuit 1010 (DB/OG), Harness Side And Ground
      G04586055Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?

    Yes  : INSTALL a new rear window defrost switch. TEST the system for normal operation.

    No  : REPAIR the circuit. TEST the system for normal operation.

  3. G3 CHECK CIRCUIT 688 (GY/LB) FOR A SHORT TO GROUND
    • Disconnect: Rear Window Defrost Relay.
    • Measure the resistance between the rear window defrost relay pin 86, circuit 688 (GY/LB), harness side and ground.

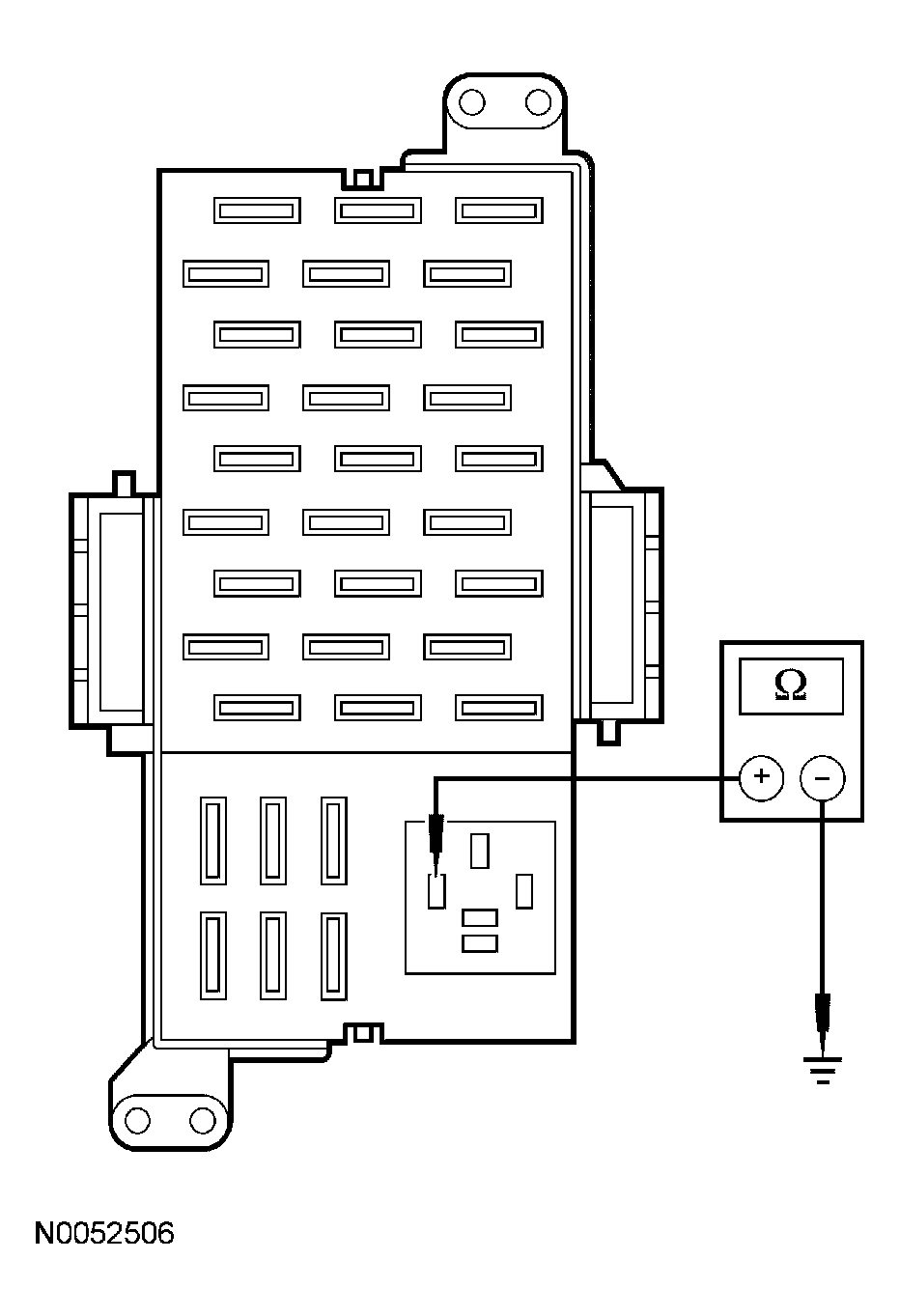

      Fig 3: Measuring Resistance Between Rear Window Defrost Relay Pin 86, Circuit 688 (GY/LB), Harness Side And Ground
      G04586056Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?

    Yes  : GO to  G5.

    No  : GO to G4.

  4. G4 CHECK THE DDM FOR A SHORT TO GROUND
    • Disconnect: DDM C501b.
    • Measure the resistance between the rear window defrost relay pin 86, circuit 688 (GY/LB), harness side and ground.
      Fig 4: Measuring Resistance Between Rear Window Defrost Relay Pin 86, Circuit 688 (GY/LB), Harness Side And Ground
      G04586057Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?

    Yes  : GO to  G7.

    No  : REPAIR the circuit. TEST the system for normal operation.

  5. G5 CHECK CIRCUIT 186 (BN/LB) FOR A SHORT TO VOLTAGE
    • Key in ON position.
    • Measure the voltage between the rear window defrost relay pin 30, circuit 186 (BN/LB), harness side and ground.

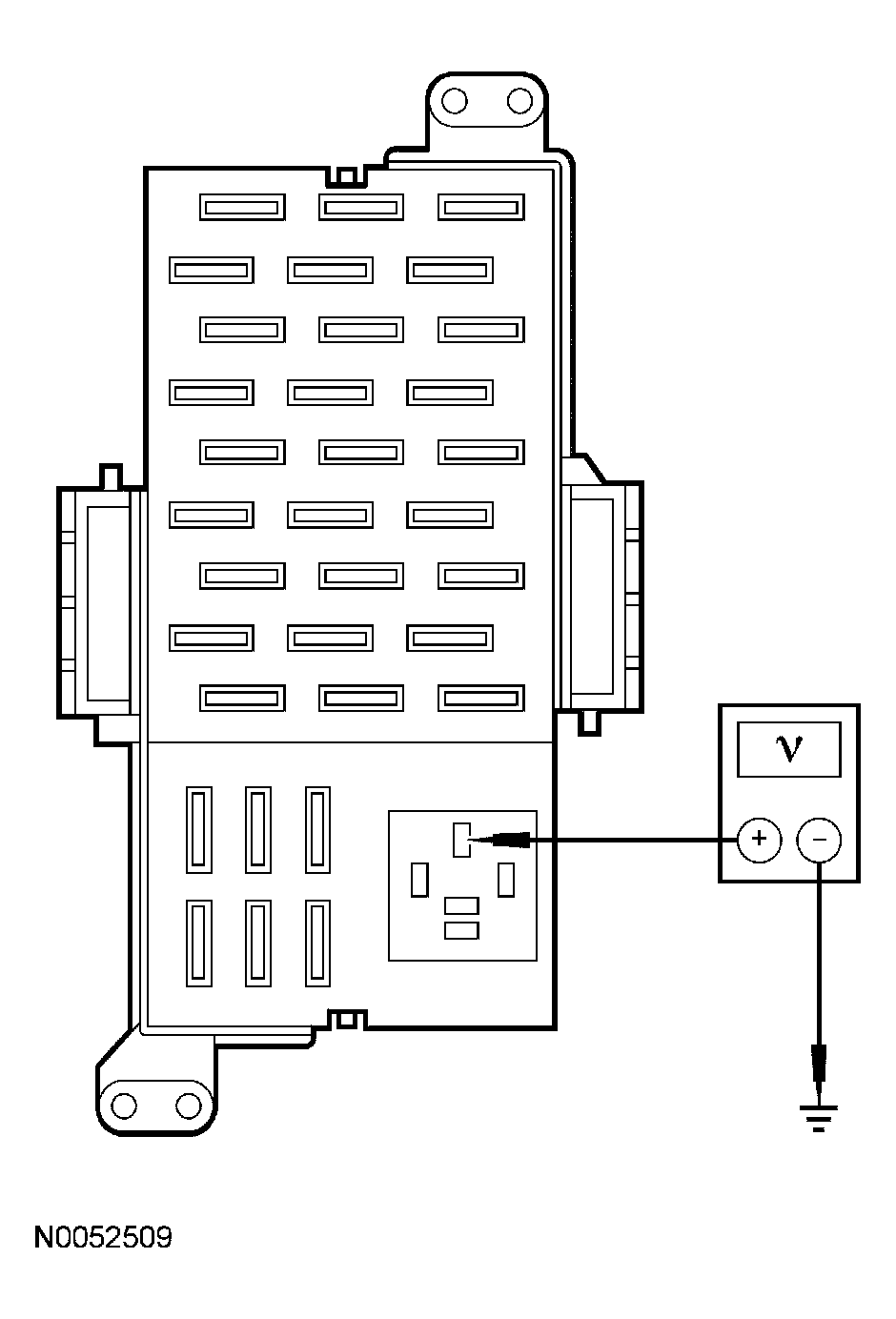

      Fig 5: Measuring Voltage Between Rear Window Defrost Relay Pin 30, Circuit 186 (BN/LB), Harness Side And Ground
      G04586058Courtesy of FORD MOTOR CO.
    • Is voltage present?

    Yes  : REPAIR the circuit. TEST the system for normal operation.

    No  : GO to G6.

  6. G6 CHECK THE REAR WINDOW DEFROST RELAY FOR CORRECT OPERATION
    • Carry out the ISO relay test for the rear window defrost relay. Refer to COMPONENT TESTING for schematic and connector information.
    • Is the rear window defrost relay OK?

    Yes  : GO to G7.

    No  : INSTALL a new rear window defrost relay. TEST the system for normal operation.

  7. G7 CHECK FOR CORRECT DDM OPERATION
    • Disconnect all the DDM connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the DDM connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?

    Yes  : INSTALL a new DDM. REFER to MULTIFUNCTION ELECTRONIC MODULES . TEST the system for normal operation.

    No  : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
