4.6L 2V Crown Victoria/Grand Marquis

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

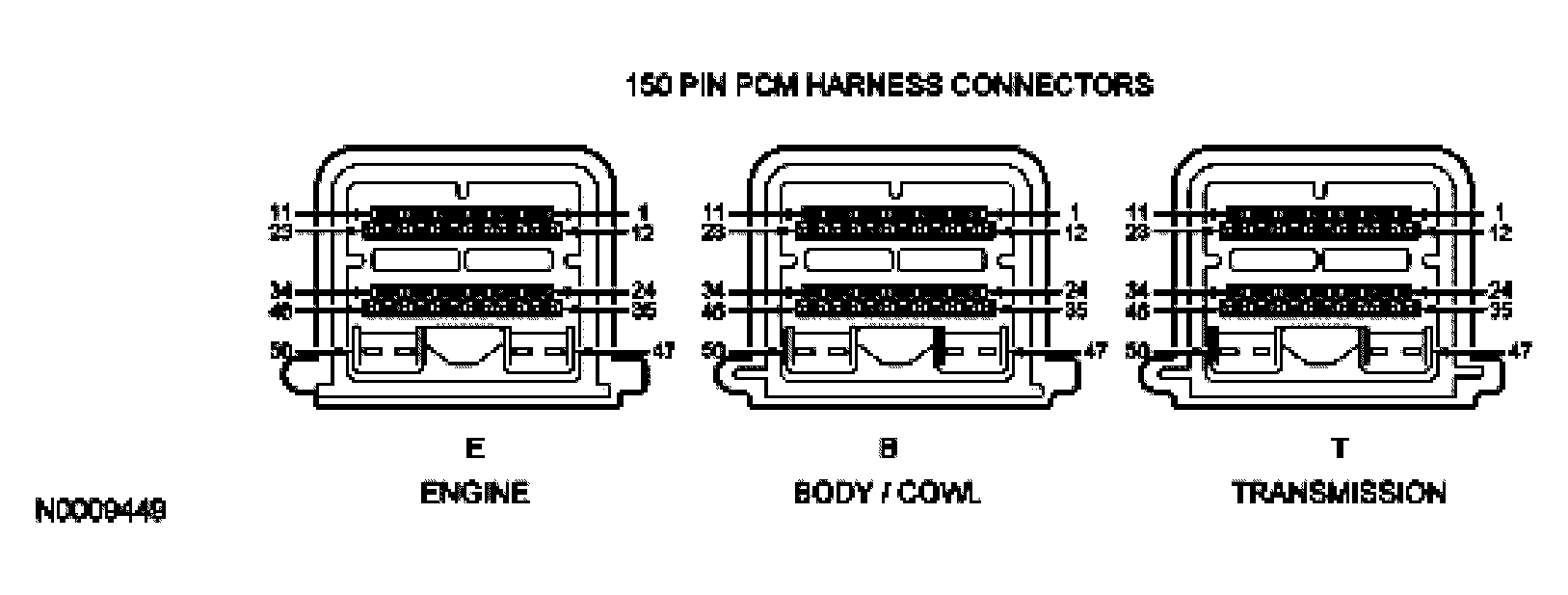

Fig 1: Powertrain Control Module Connector Terminal Identification
G04587365Courtesy of FORD MOTOR CO.
SENSORS/INPUTS - 4.6L 2V CROWN VICTORIA/GRAND MARQUIS

Sensors/Inputs PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
ACCS B3 0.1/OFF VBAT/ON (A) 0.1/OFF 0.1/OFF DCV/OFF-ON
APP1 B5 4.1 4.2 3.9 3.7 DCV
BPS B7 0.1/OFF VBAT/ON (E) 0.1/OFF 0.1/OFF DCV/OFF-ON
BPP B8 VBAT/OFF 0.1/ON (E) VBAT/OFF VBAT/OFF DCV/OFF-ON
FTP V/FTP B9 2.6/0 2.6/0 2.6/0 2.6/0 DCV/IN-H2O
ACET B15 1.9-4.0 1.9-4.0 1.9-4.0 1.9-4.0 DCV
APP2 B17 1.6 1.7 1.9 2.1 DCV
SCCS B19 5 0.1 (P) 5 5 DCV
RDI B20 0 0 0 0 DCV
FPM B21 0.1-VBAT/0-100 0.1-VBAT/0-100 0.1-VBAT/0-100 0.1-VBAT/0-100 DCV/%
IAT (K) B26 1.7-3.5/120-50 1.7-3.5/120-50 1.7-3.5/120-50 1.7-3.5/120-50 DCV/DEG
TCS B27 0.1/0FF VBAT/ON (G) 0.1/0FF 0.1/0FF DCV/OFF-ON
APP3 B28 1.0 1.1 1.3 1.5 DCV
ABSIL_F B29 0 0 0 0 DCV
ACP B31 1.1/102 1.1/102 0.6-1.3/80-130 0.6-1.3/80-130 DCV/PSI
MAF V B32 0 0.99-1.21 0.9-1.5 1.4-2.1 DCV
ABSIL_T B33 0 0 0 0 DCV
ABSIL_D B37 0 0 0 0 DCV
DOL B38 0 0 0 0 DCV
PATS IN B42 VBAT VBAT VBAT VBAT DCV
FEPS B44 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 DCV
PSP V/PSP B46 0.1/LOW VBAT/HIGH (I) 0.1/LOW 0.1/LOW DCV/LOW-HIGH
TP1 NS E19 4.1 4.4 4.1 4.0 DCV
MAP E23 4/99 1-1.4/30 1.8-2.1/25 1.9-2.3/25 DCV/kPa
CMP E25 0 6-7 10-11 13-14 Hz
TP2 PS E29 0.53-1.27 0.53-1.27 1-1.2 1-1.2 DCV
HO2S11 E30 0 switching (C) switching (C) switching (C) DCV
HO2S21 E31 0 switching (C) switching (C) switching (C) DCV
KS1 E32 0 0 0 0 DCV
CHT V/CHT E33 0.67 or 3.7/194 0.67 or 3.7/194 0.67 or 3.7/194 0.67 or 3.7/194 DCV/DEG
CKP E34 0 440-490 560-780 900-1100 Hz
FRT E36 0.5-3/210-110 0.5-3/210-110 0.5-3/210-110 0.5-3/210-110 DCV/DEG
FRP V/FRP E37 3.15/46 2.74/39 2.88/41 2.86/40 DCV/OFF-ON
DPFEGR E44 0.25-1.30 0.25-1.30 0.25-4.65 0.25-4.65 DCV
OSS T3 0 0 504-544 / 1260-1330 900-972 / 2265-2400 Hz/RPM
TSS T15 0 340 605 905 Hz
TR 1 T16 0 0 11.5 11.5 DCV
TR 2 T17 0 0 11.5 11.5 DCV
HO2S12 T24 0.1 (D) (D) (D) DCV
HO2S22 T25 0.1 (D) (D) (D) DCV
TR3 V/TR T27 0/PARK 0/PARK 1.7/OD 1.7/OD DCV/MODE
TR 4 T28 0 0 11.5 11.5 DCV
TFT T29 0.5-2/210-110 0.5-2/210-110 0.5-2/210-110 0.5-2/210-110 DCV/DEG
FLI V/FLI (H) T30 1.7/50 1.7/50 1.7/50 1.7/50 DCV/%
GENLI T38 0 130/30 130/27 130/23 Hz/%
CPP/PNP PID ON ON OFF OFF OFF-ON
GEAR PID 1 1 3 4 GEAR
LOAD PID (L) 15-19 20-26 23-28 %
MISF PID OFF OFF OFF OFF OFF-ON
OCTADJS PID NO RETARD NO RETARD NO RETARD NO RETARD NO RETARD/RETARD
RPM PID 0 790-815 1250-1400 1540-1620 RPM
ACTUATORS/OUTPUTS - 4.6L 2V CROWN VICTORIA/GRAND MARQUIS

Actuators/Outputs PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
PATSTRT/SMC B2 0 0 0 0 DCV
FP B12 VBAT/0 0.1/100 0.1/100 0.1/100 DCV/%
EVAPC V B13 VBAT/0 VBAT/0 VBAT/0 (R) VBAT/0 (R) DCV/%
PATS OUT B22 10.5 VBAT (A) VBAT VBAT DCV
ACCR (WAC) B25 VBAT/OFF 0.1/ON (A) VBAT/OFF VBAT/OFF DCV/OFF-ON
EVAPPDC B34 0 0-10/0-100 0-10/0-100 0-10/0-100 Hz/%
CDA (CYL 1) E1 VBAT VBAT VBAT VBAT DCV
INJ1 E2 0 3.4-3.7 3.7-6 5.5-9 mS
INJ2 E3 0 3.4-3.7 3.7-6 5.5-9 mS
INJ3 E4 0 3.4-3.7 3.7-6 5.5-9 mS
INJ4 E5 0 3.4-3.7 3.7-6 5.5-9 mS
EGRVR E6 VBAT/0 VBAT/0 (T) (T) DCV/%
INJ5 E8 0 3.4-3.7 3.7-6 5.5-9 mS
INJ6 E9 0 3.4-3.7 3.7-6 5.5-9 mS
INJ7 E10 0 3.4-3.7 3.7-6 5.5-9 mS
INJ8 E11 0 3.4-3.7 3.7-6 5.5-9 mS
CDD (CYL 2) E12 VBAT VBAT VBAT VBAT DCV
VFC E14 0-100 0-100 0-100 0-100 %
CDB (CYL 3) E24 VBAT VBAT VBAT VBAT DCV
CDG (CYL 4) E35 VBAT VBAT VBAT VBAT DCV
CDF (CYL 5) E38 VBAT VBAT VBAT VBAT DCV
CDE (CYL 6) E39 VBAT VBAT VBAT VBAT DCV
CDC (CYL 7) E42 VBAT VBAT VBAT VBAT DCV
CDH (CYL 8) E43 VBAT VBAT VBAT VBAT DCV
TACM (+) E47 3.7 VBAT VBAT VBAT DCV
TACM (-) E48 3.7 VBAT VBAT VBAT DCV
HTR11 E49 0.1/ON (O) SWITCH SWITCH SWITCH DCV/OFF-ON
HTR21 E50 0.1/ON (O) 0.1/ON 0.1/ON 0.1/ON DCV/OFF-ON
EPC T11 7.9/20 9.5/20 9.3/22 9.5/22 DCV/PSI
FCIL T12 0/OFF 0/OFF 0/OFF 0/OFF DCV/OFF-ON
SCIL T13 0 0 0 0 DCV
GENRC T19 130/0 0/0 0/0 0/0 Hz/%
ETCIL T21 0 0 0 0 DCV
MIL T22 VBAT/OFF VBAT/OFF VBAT/OFF VBAT/OFF DCV/OFF-ON
TCIL T31 5/OFF 5/OFF 5/OFF 5/OFF DCV/OFF-ON
CHTIL T32 4.7/OFF 4.7/OFF 4.7/OFF 4.7/OFF DCV/OFF-ON
LED OUT T33 10.5 VBAT (A) VBAT VBAT DCV
VSO T37 0 0 65 125 Hz
GENIL T39 0.10 VBAT VBAT VBAT DCV
SSA (SS1) T42 0.1/ON 0.1/ON VBAT/OFF 0.1/ON DCV/OFF-ON
SSB (SS2) T43 VBAT/OFF VBAT/OFF 0.1/ON 0.1/ON DCV/OFF-ON
TCC T46 0.2/100 VBAT/0 9.9-10.1/42-44 0.3/90-100 DCV/%
HTR12 T47 0.2/ON (O) 0.2/ON 0.2/ON 0.2/ON DCV/OFF-ON
HTR22 T48 0.2/ON (O) 0.2/ON 0.2/ON 0.2/ON DCV/OFF-ON
LONGFT1 PID (-)20-(+)20 (-)20-(+)20 (-)20-(+)20 (-)20-(+)20 %
LONGFT2 PID (-)20-(+)20 (-)20-(+)20 (-)20-(+)20 (-)20-(+)20 %
SHRTFT1 PID (L) (-)10-(+)10 (-)10-(+)10 (-)10-(+)10 %
SHRTFT2 PID (L) (-)10-(+)10 (-)10-(+)10 (-)10-(+)10 %
SPARKADV PID 0 15-20 20-35 32-38 DEG
OTHER - 4.6L 2V CROWN VICTORIA/GRAND MARQUIS

Other PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
ETCVREF B4/B24/E18 5 5 5 5 DCV
VPWR B35/36 VBAT VBAT VBAT VBAT DCV
VREF B40/E40 5 5 5 5 DCV
KAPWR B45 VBAT VBAT VBAT VBAT DCV
