Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the luggage compartment trim panels.
Remove the 4 rear bumper cover inner fender screws (2 on each side).
Remove the 2 rear bumper cover screws.
On the RH side, remove the rear bumper cover bolt and the nut located in the wheel well area.
- To install, tighten to 7 Nm (62 lb-in).
Fig 1: Tightening Rear Bumper Cover Bolt And Nut
Courtesy of FORD MOTOR CO.
On the LH side, remove the rear bumper cover bolt.
- To install, tighten to 7 Nm (62 lb-in).
Fig 2: Removing Rear Bumper Cover Bolt
Courtesy of FORD MOTOR CO.

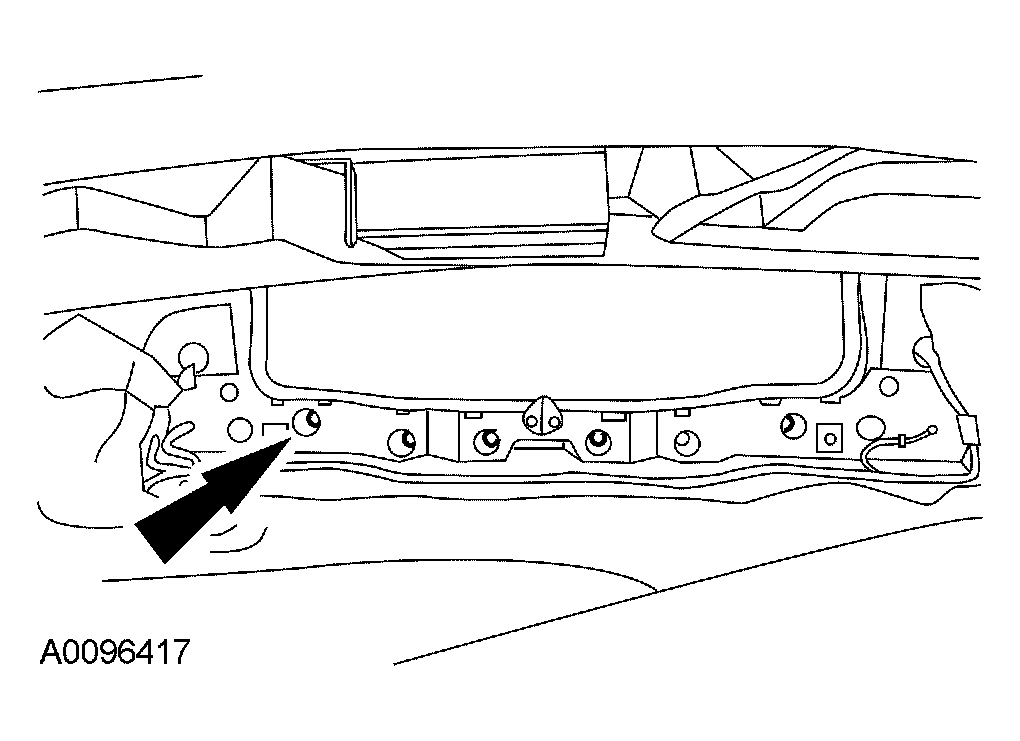

From the luggage compartment, remove the 5 rear bumper cover nuts.
- To install, tighten to 7 Nm (62 lb-in).
Fig 3: Removing Rear Bumper Cover Nuts - Luggage Compartment
Courtesy of FORD MOTOR CO.

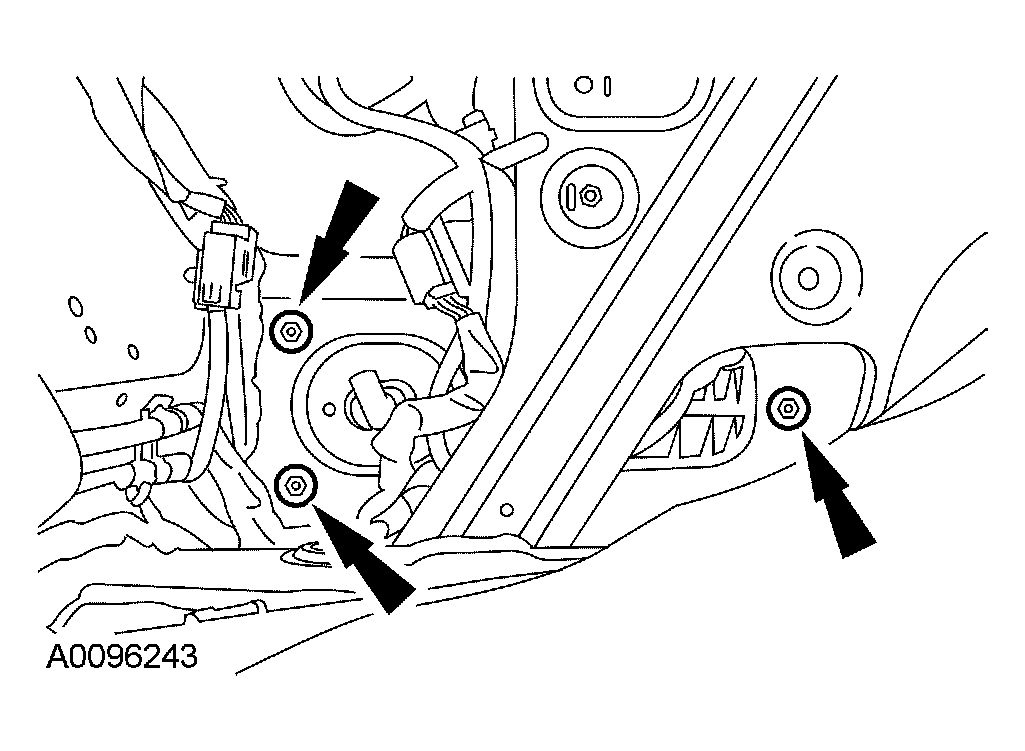

From the luggage compartment, remove the 6 rear bumper cover nuts (3 on each side).
- To install, tighten to 7 Nm (62 lb-in).
Fig 4: Removing Rear Bumper Cover Nuts - Luggage Compartment
Courtesy of FORD MOTOR CO.
Remove the rear bumper cover.
- If equipped, disconnect the electrical connector.
To install, reverse the removal procedure.
