Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

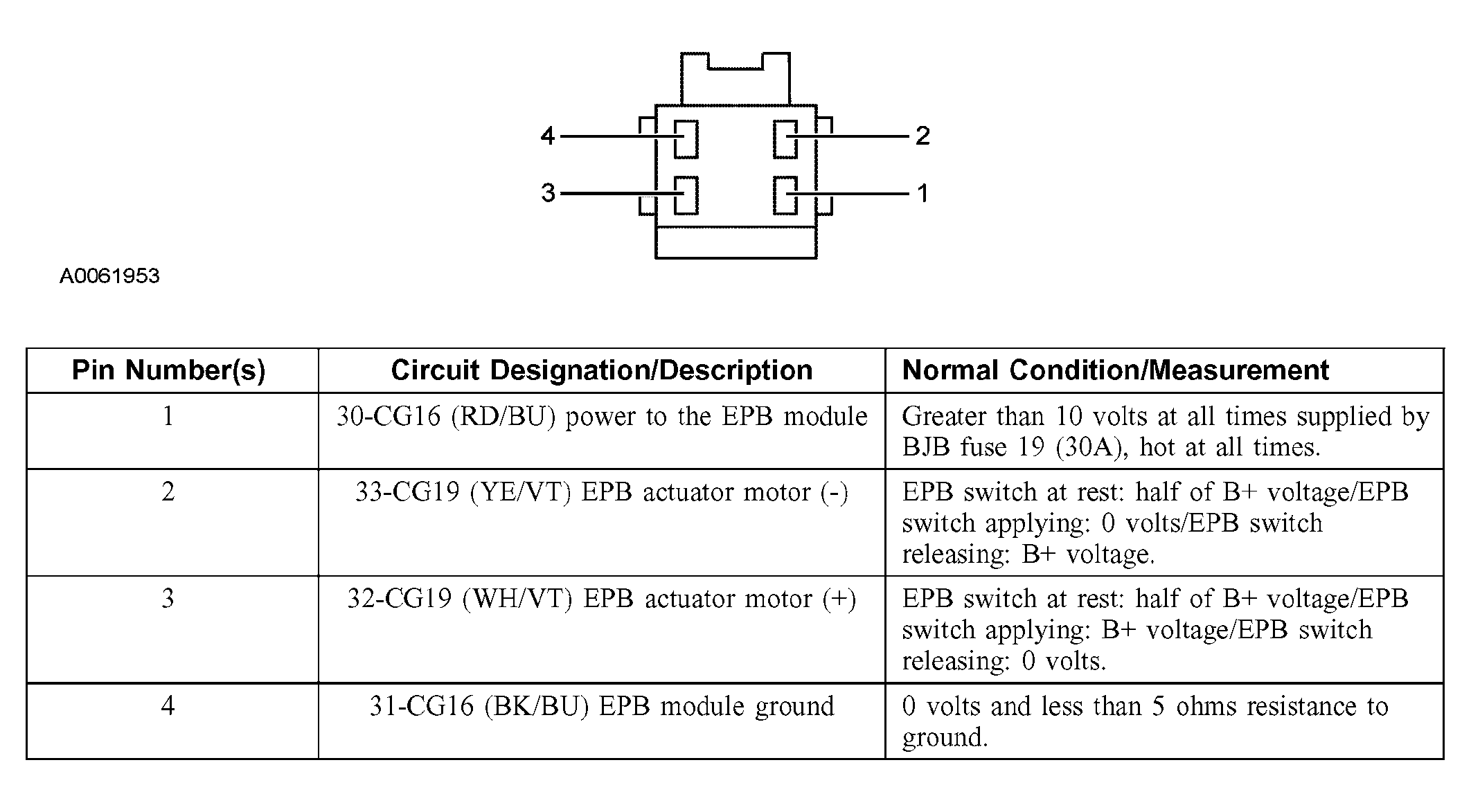

Fig 1: Identifying Electronic Parking Brake (EPB) Switch C3218 Connector Terminals

Courtesy of FORD MOTOR CO.

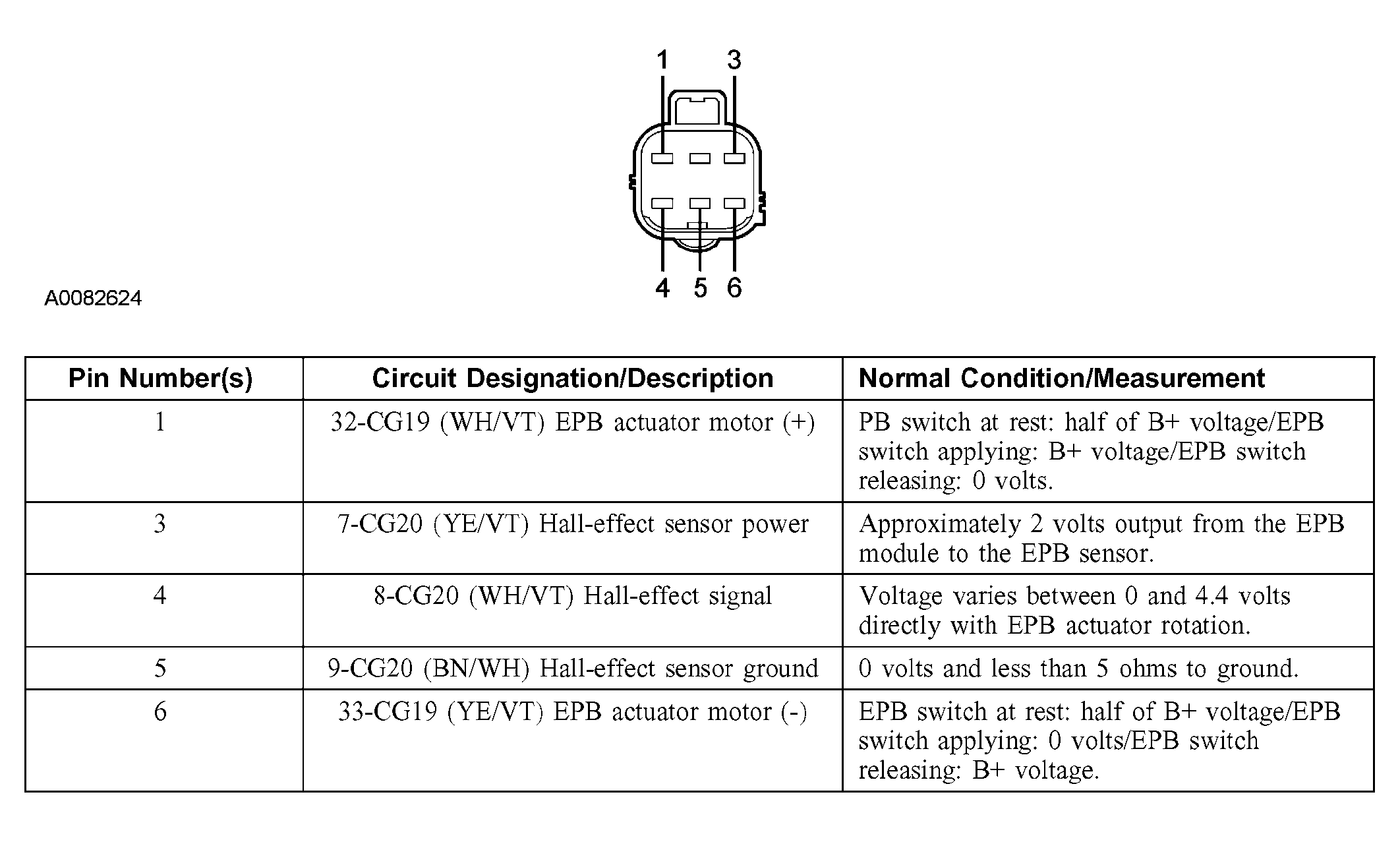

Fig 2: Identifying Electronic Parking Brake (EPB) Module C4205a Connector Terminals

Courtesy of FORD MOTOR CO.

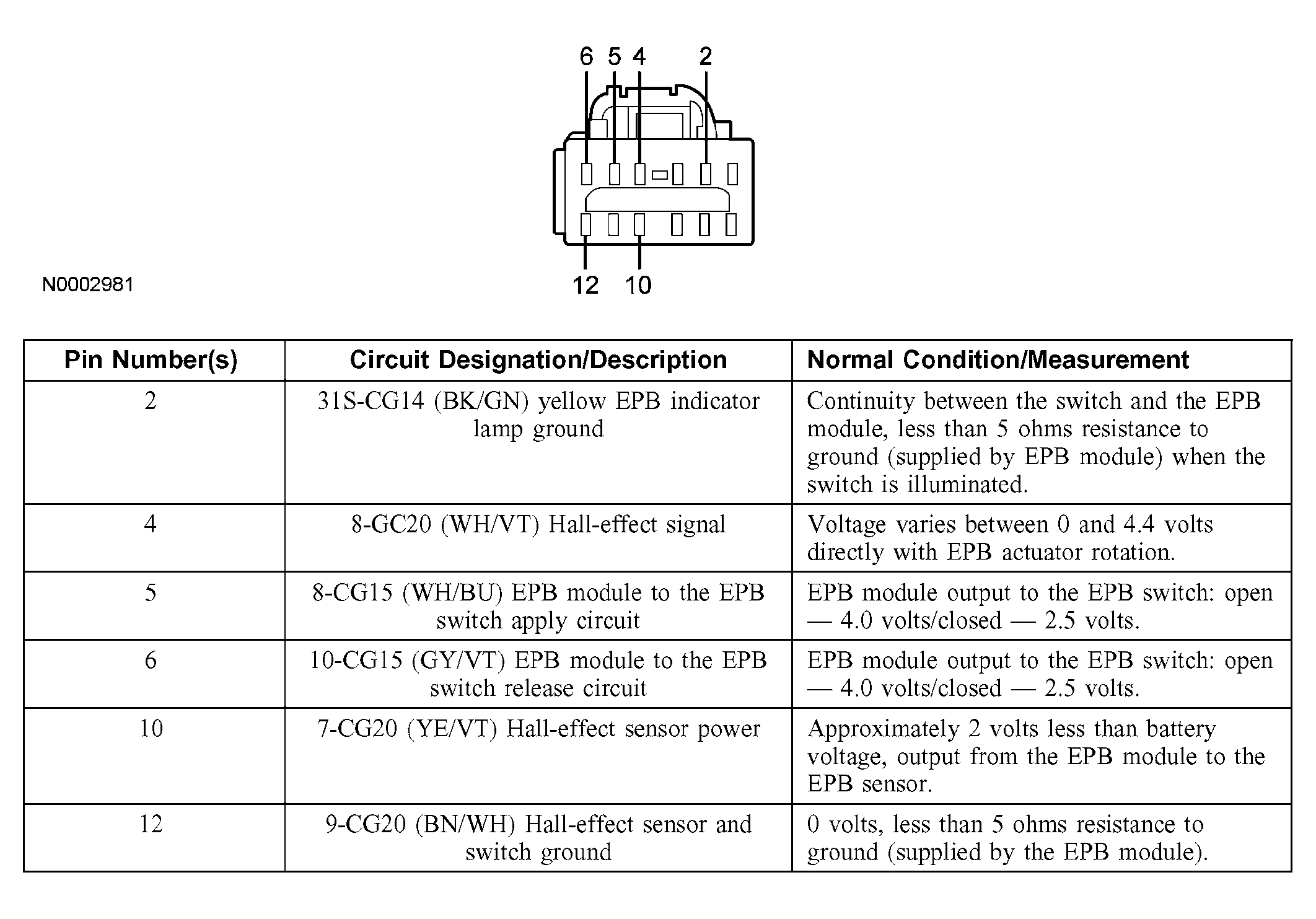

Fig 3: Identifying Electronic Parking Brake (EPB) Module C4205b Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Electronic Parking Brake (EPB) Actuator C4206 Connector Terminals

Courtesy of FORD MOTOR CO.
