Wheel Knuckle - E550: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES article .

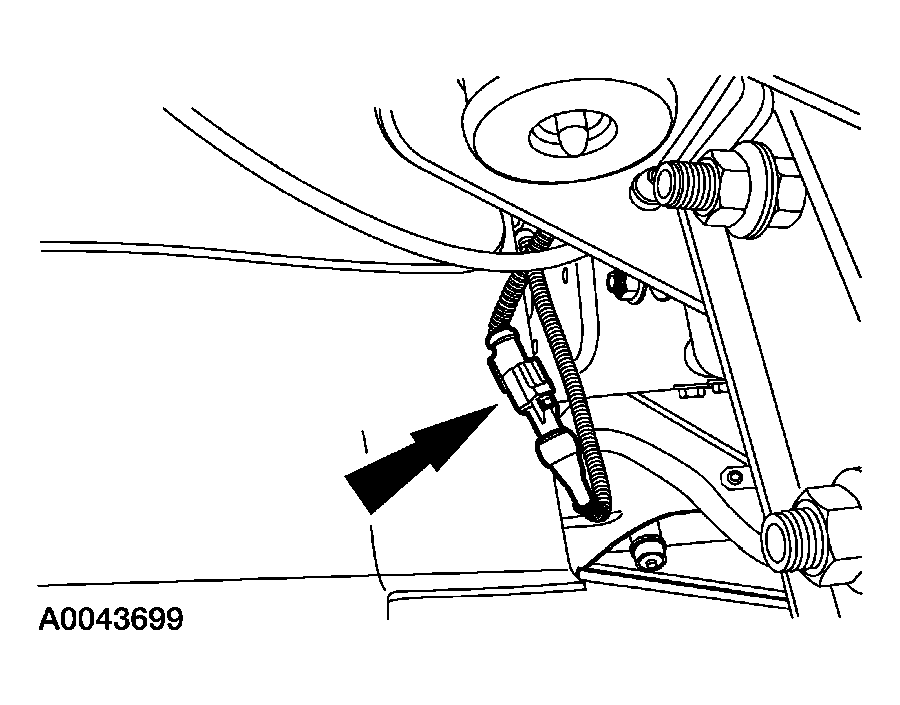

Disconnect the speed sensor electrical connector.

Fig 1: Disconnecting Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

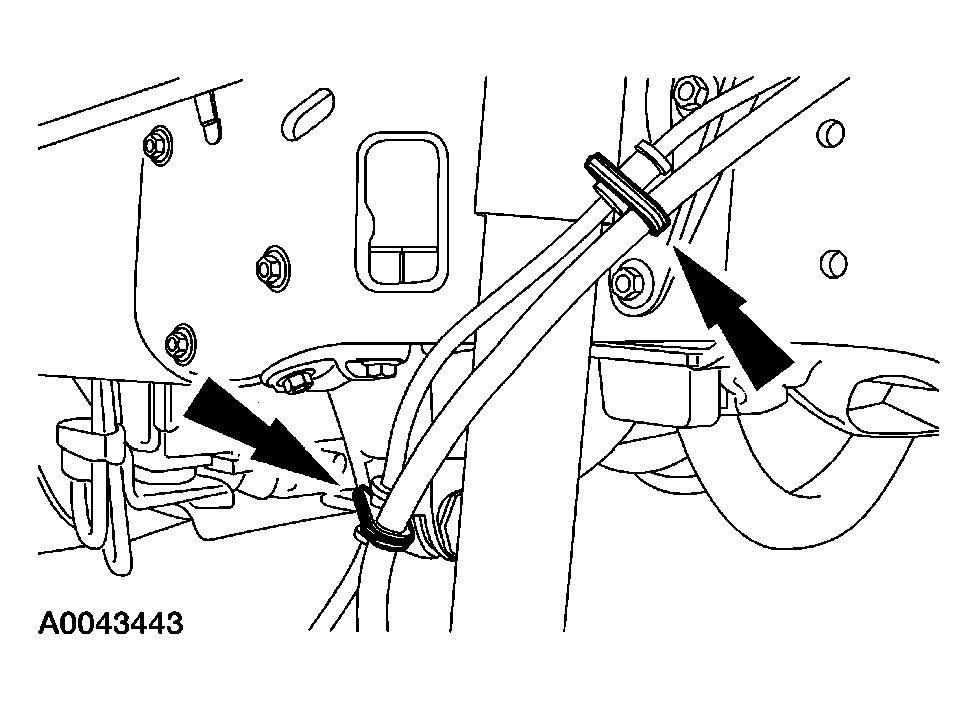

Detach the sensor harness from the brake hose.

Fig 2: Detaching Sensor Harness From Brake Hose
Courtesy of FORD MOTOR CO.

CAUTION: Do not allow the brake caliper to hang from the brake hose or damage to the hose can result.

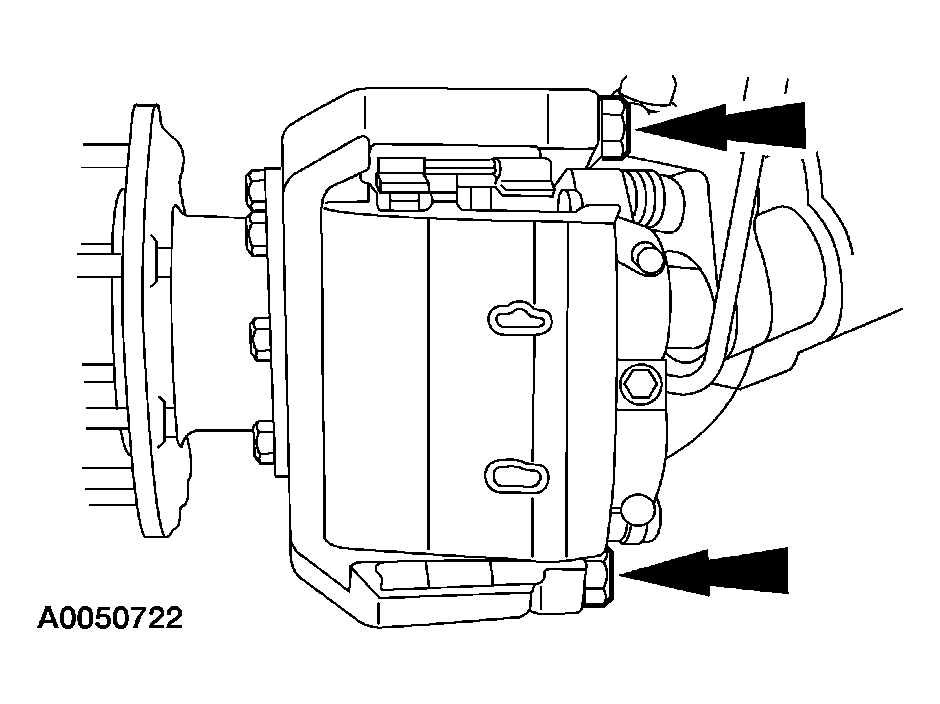

Fig 3: Removing Caliper Bolts

Courtesy of FORD MOTOR CO.

Remove the bolts and position the caliper, pads and anchor plate aside.

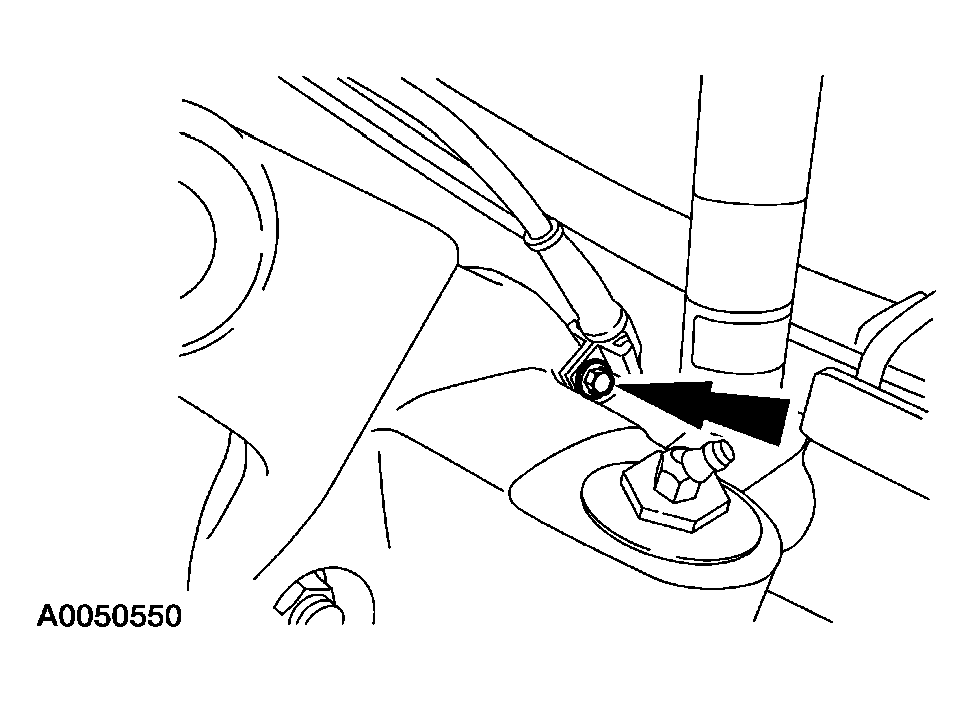

Remove the bolt.

Fig 4: Removing Bolt
Courtesy of FORD MOTOR CO.

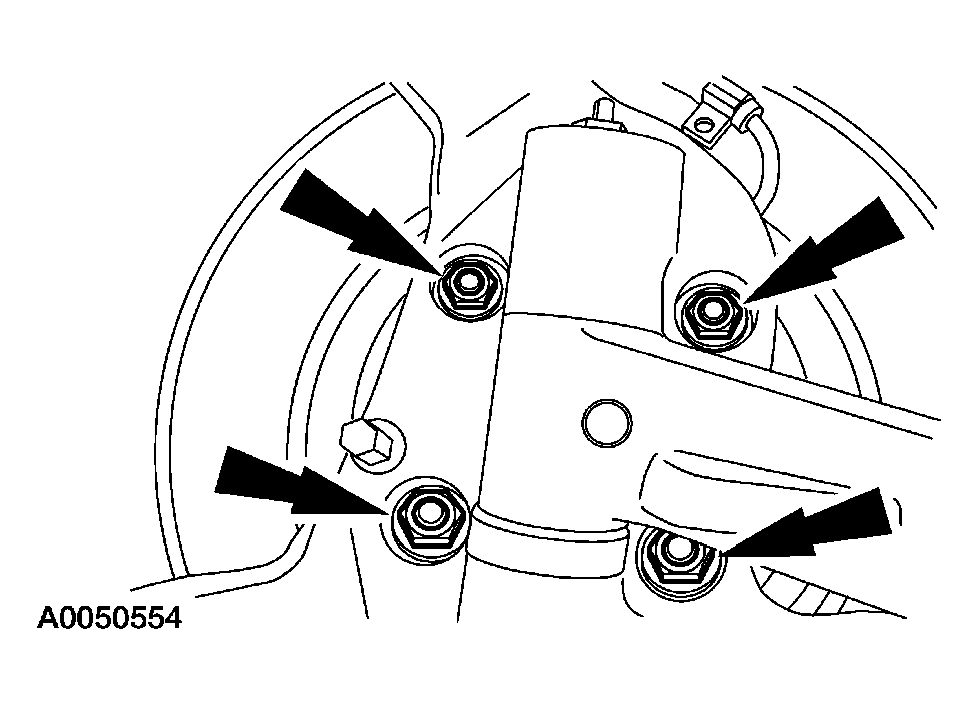

Remove the nuts, wheel bearing, hub and brake disc as an assembly.

Fig 5: Removing Wheel Bearing, Hub And Brake Disc Assembly
Courtesy of FORD MOTOR CO.

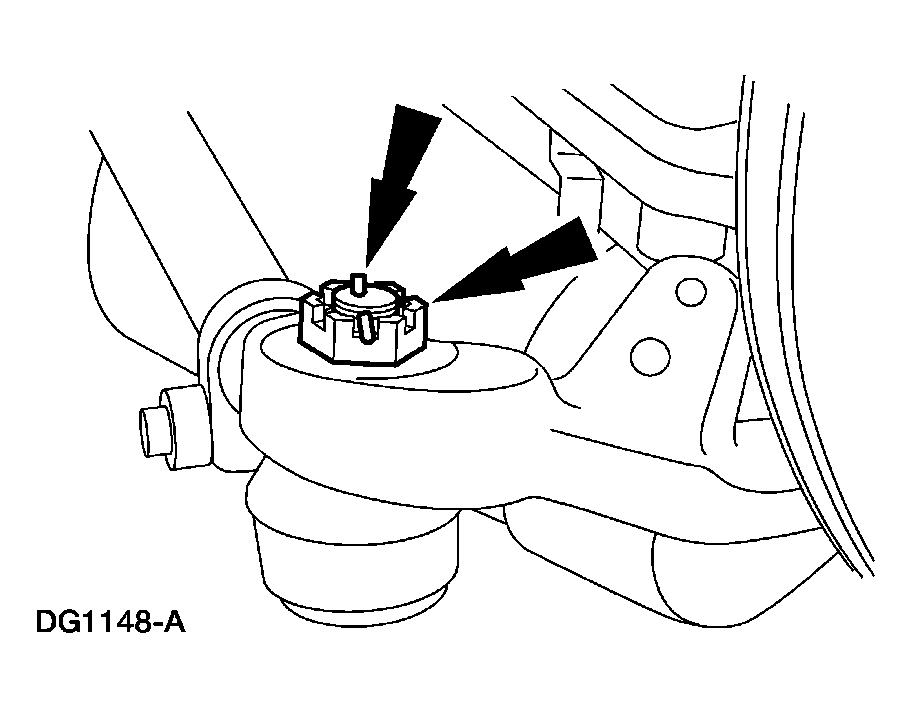

Remove and discard the cotter pin and nut.
- Using a suitable separator, detach the tie-rod from the wheel knuckle.
Fig 6: Removing Cotter Pin And Nut
Courtesy of FORD MOTOR CO.
Remove the upper knuckle cap and seal.

Fig 7: Removing Upper Knuckle Cap And Seal
Courtesy of FORD MOTOR CO.
Remove the lower knuckle cap and seal.

Fig 8: Removing Lower Knuckle Cap And Seal
Courtesy of FORD MOTOR CO.
Remove the lock pin retaining nut.
- Use a bronze drift to remove the lock pin.
Fig 9: Removing Lock Pin Retaining Nut
Courtesy of FORD MOTOR CO.
Using a bronze drift, drive out the spindle pin.

Fig 10: Removing Spindle Pin
Courtesy of FORD MOTOR CO.
Remove the knuckle, bearing and shim(s) from the axle assembly.

Fig 11: Removing Knuckle, Bearing And Shim(s) From Axle Assembly
Courtesy of FORD MOTOR CO.
